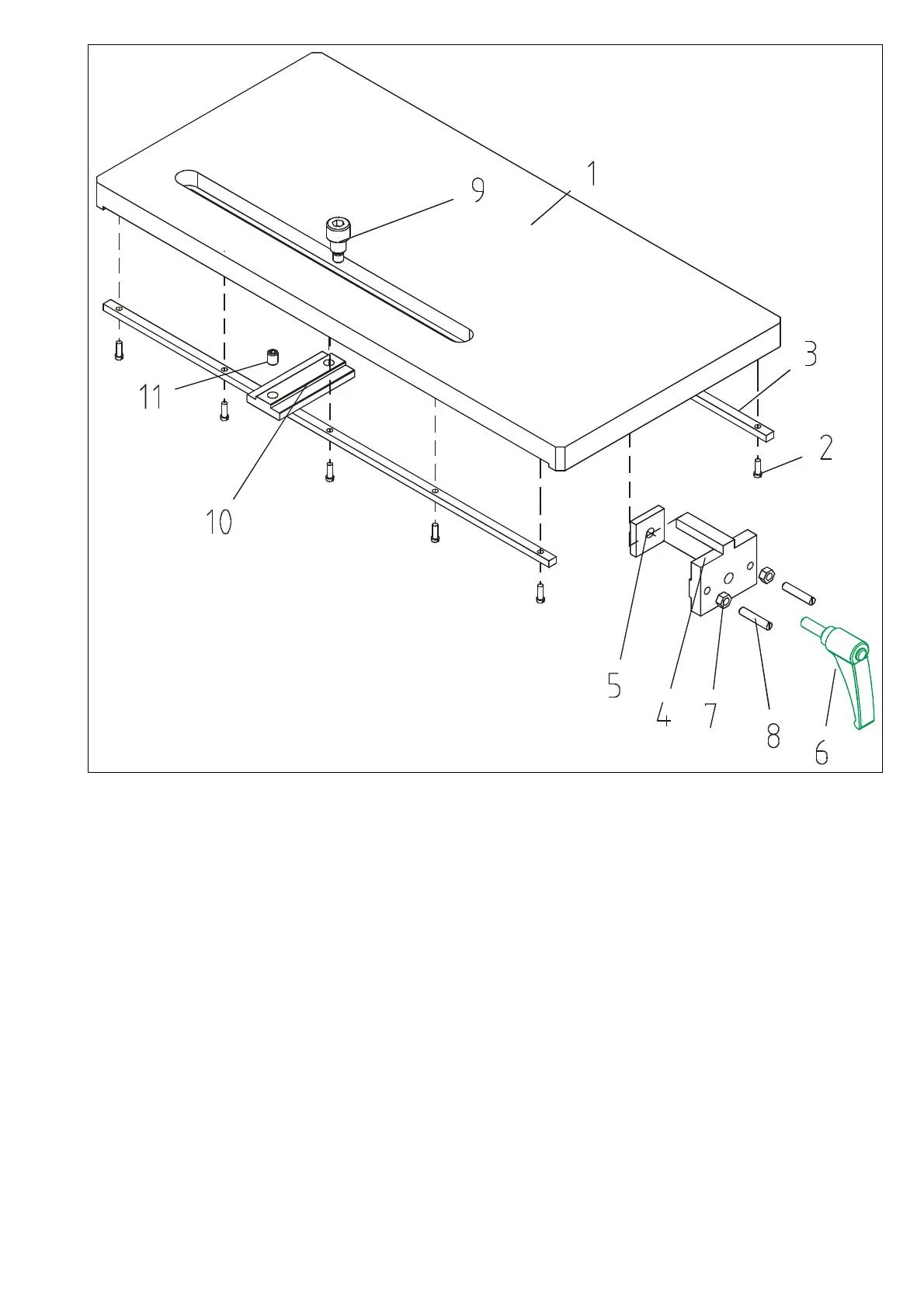

МШ.00.00.00-01 Table for cutting of machines with format table without CE (optional)
1 МШ.00.00.09-01 MOVABLE TABLE 1
2 DIN 84 SCREW М4Х12 10
3 МШ.00.00.23 SLIDER 2
4 МШ.25.01.00 GUIDE 1
5 МШ.25.00.02 NUT 1
6 GN603-63-M8-25-DGR FASTEN LEVER М8Х25 1
7 DIN 934 NUT М6 2
8 DIN 551 FIXING SCREW М6Х35 2
9 МШ.00.00.22 GUIDING AXLE 1
10 МШ.00.00.21 COTTER 1
11 DIN 913 FIXING SCREW М8Х10 1
46
