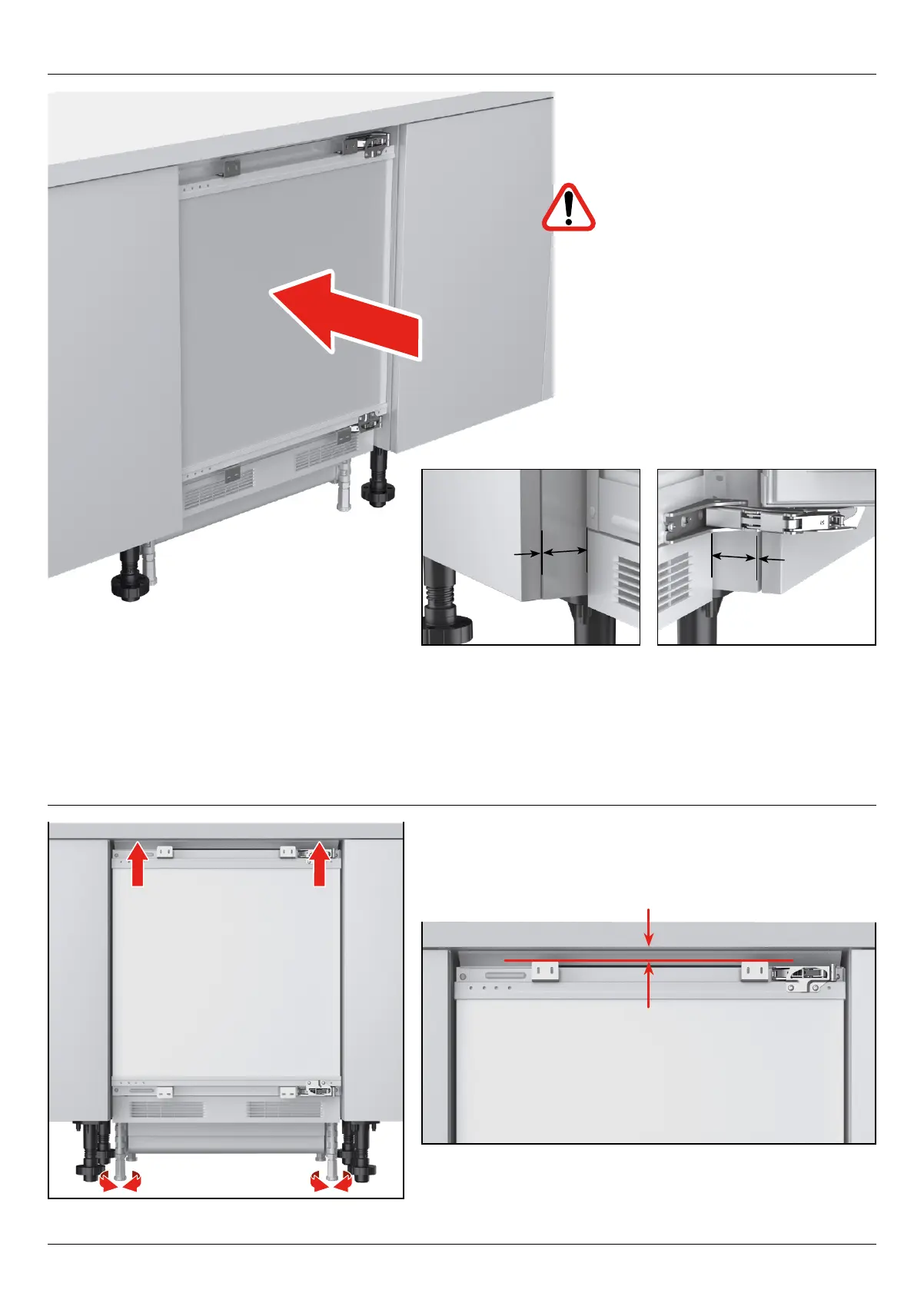

4 - Raise feet so that the top trim engages with the underside of the worktop.
Ensure the appliance is level and true.
Adjust appliance
height if necessary
Worktop to brackets c.12mm
top of bracket to underside
of worktop.
c.40mm
c.40mm
3 - Move into position.
WARNING:
Take care not to damage
appliance or surrounding
cabinetry.
Do not trap electric cable.
Appliance depth in niche - from cabinet edge to
appliance body when door is open.
