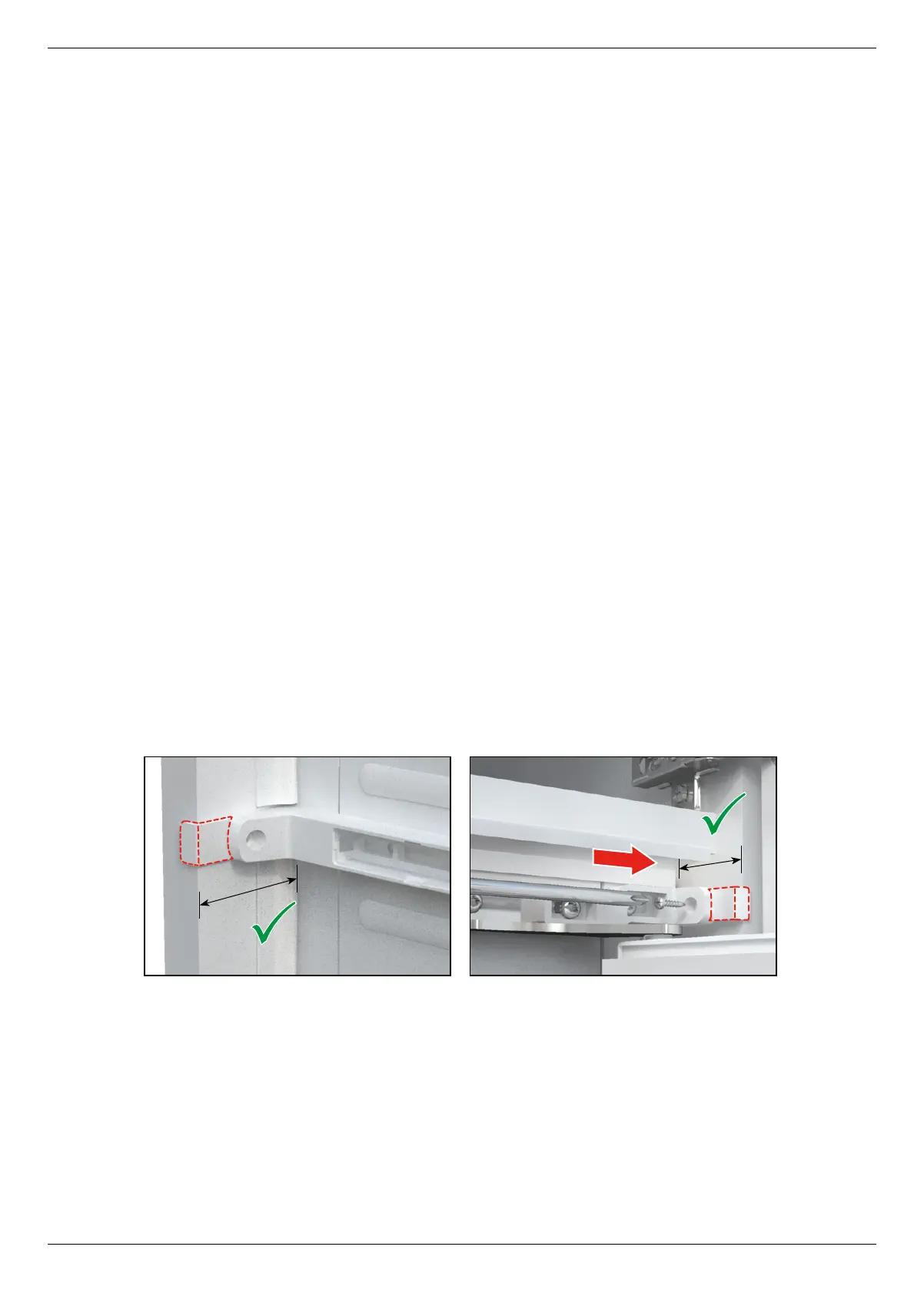

42mm
42mm
Please use brackets with tabs to ensure fridge freezer
install depth is 42mm. (Use front feet adjustment to assist)
If installed deeper than 42mm (at either side) the fridge freezer
doors may not close fully causing issues such as:-
THE LIGHT WILL STAY ON
THE ALARM WILL SOUND (*Frost free models)
THE FRIDGE FREEZER WILL NOT WORK CORRECTLY
(Not cooling, icing-up, water leaking etc.)
Installation overview guide
1. Establish power socket location,
(must be accessible after installation)
2. Prepare cabinet,
(remove back panels, fit upper shelf, fit plinth vent).............p.5
3. Fit and adjust décor doors .....................................p.5
4. Reverse fridge freezer doors if necessary ......................p.13-14
5. Fit top trim to fridge freezer ....................................p.6
6. Fit side seal trim to fridge freezer...............................p.7
7. Protect cabinet edges with masking tape ......................p.8
8. Lift fridge freezer into cabinet ..................................p.8
9. Level and align fridge freezer using front adjustable feet and
spacer brackets ...............................................p.8
10. Fix spacer brackets to fridge freezer and when in
correct position screw to cabinet sides, (mid brackets then
upper brackets)................................................p.9-10
11. Make any final feet adjustments to align fridge freezer to
brackets and ensure correct spacing depths ...................p.9-10
12. Tighten brackets to fridge freezer, (DO NOT overtighten) ........p.11-12
13. Attach door sliders ............................................p.11
14. Remove bracket spacer tabs, install screw cover caps..........p.12
