44
4
CMS Components
4.3.2
T
echnical Data

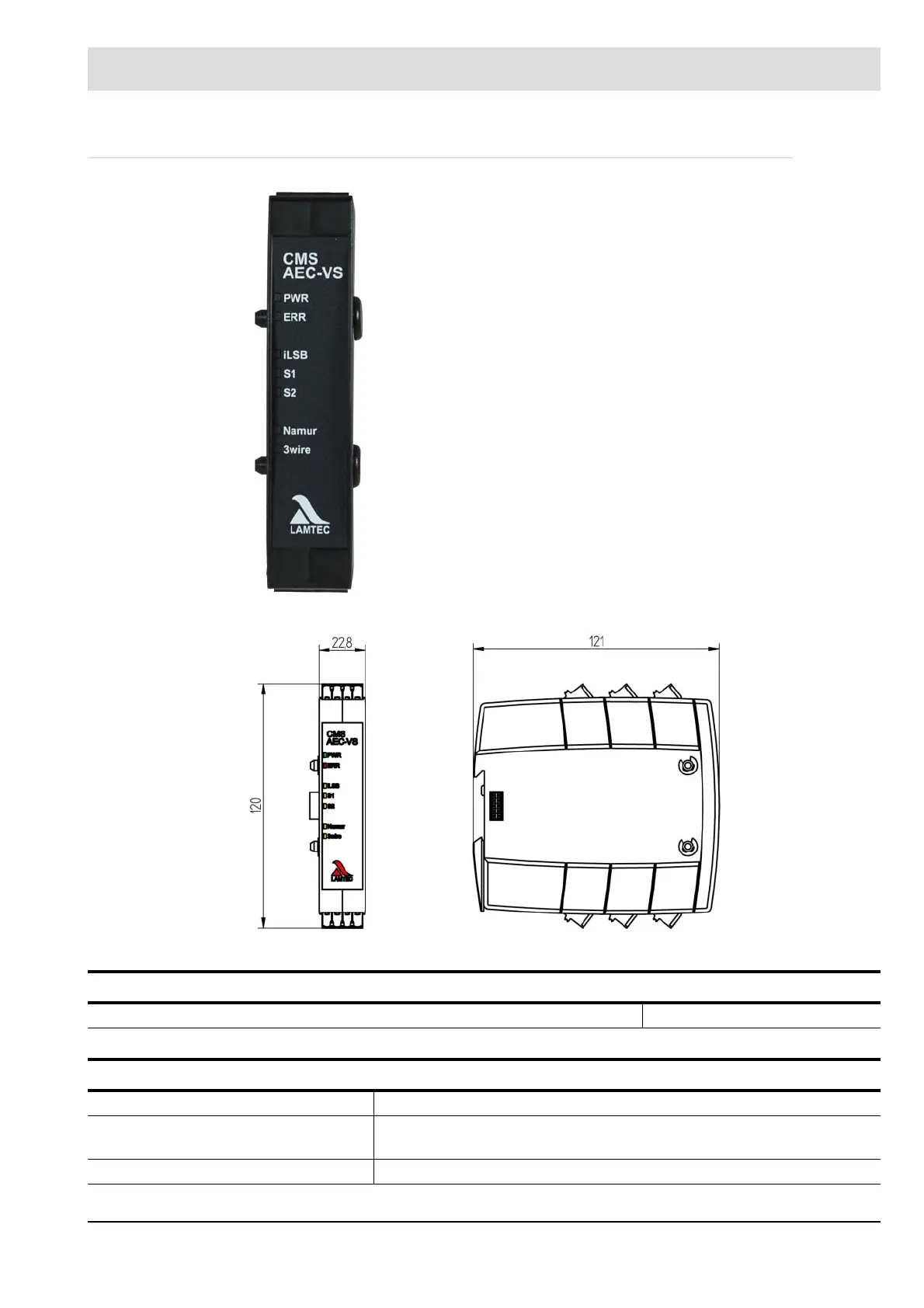

Fig. 4-1
1 AEC-VS photo
Fig. 4-12 AEC-VS dimensional drawing
Item number
AEC-VS
Actuator Extension Component - V
ariable Speed
T
ype 668R2030-XX
*
*
XX = dependent on the configuration
Function
Power supply
24 VDC ± 20 % (via plug-in connection from MCC)
Current consumption
Min: 50 mA
Max: 60 mA
Power consumption
2 W
44
46
