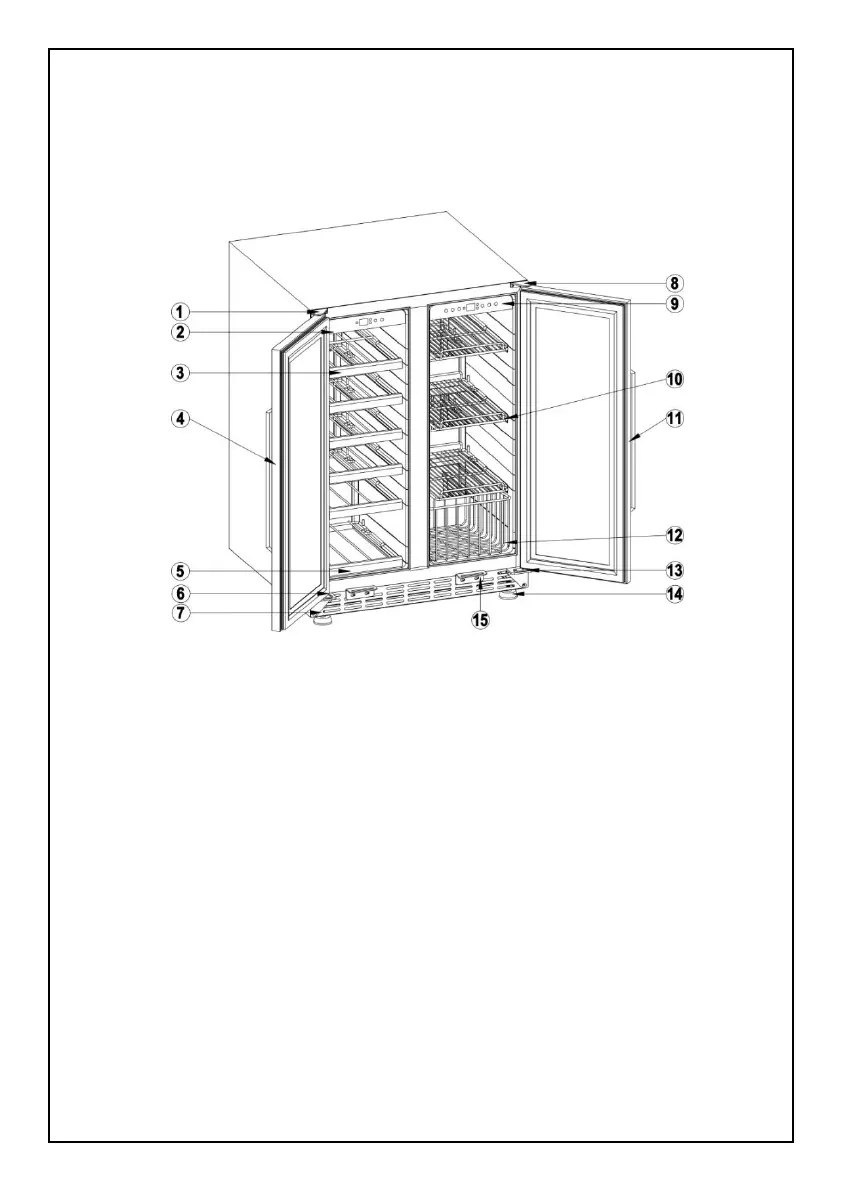

6.LB36BD/LW3370B structure diagram:

(1)Left upper hinge (2) Left Control panel (3) Big wire shelf with wooden

cover (4) Left glass door with lock / gasket & handle (5) Small wire shelf with

wooden cover (6) Left lower supporter of the door (7) The front vent

(8) Right upper hinge (9) Right Control panel (10) Wire shelf (11) Left

glass door with lock / gasket & handle (12) Wire basket (13) Right lower

supporter of the door (14) Adjustable feet (15) Lock hook
