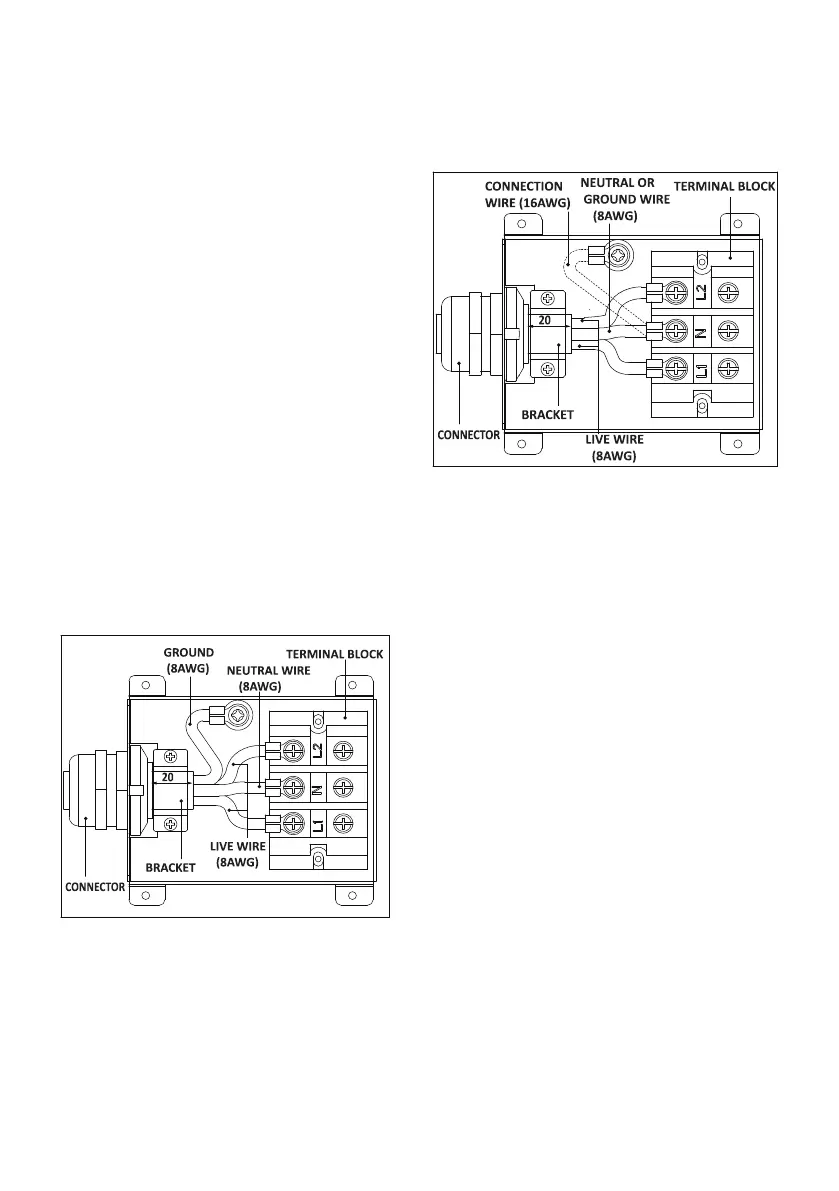

3-Wire Power Cord Installation
Remove the Terminal Block Access Plate on the back of range by removing the fixing screws.
●
Detach the strain relief in the hole on bracket.
● Insert the power cord(L1, L2, neutral or ground
wire) through the strain relief and tighten.
● Allow enough slack to easily attach the cord
terminals to the terminal block.
● Plug the terminal holes of power cord.The
neutral or ground wire of the power cord
must be connected to the neutral terminal (N)
located in thef center of terminal block. The
live wires must be connected to L1 and L2.
●
Use the connection wire(put along with the
user manual) to connect with the Ground
terminal the upper green colored grounding (
screw)and the neutral terminal.
● Plug washers and tighten nuts securely.
● Assemble the Terminal Block Access Plate.
● Remove the 3 wire terminal nuts and washers
from the terminal block.
4-WirePower Cord Installation
Remove the Terminal Block Access Plate on the
back of range by removing the fixing screws.
● Detach the strain relief in the hole on bracket.
● Insert the power cord through the strain
relief and tighten.
● Allow enough slack to easily attach the cord
terminals to the terminal block.
● Remove the 3 wire terminal nuts and washers
from the terminal block.
● Plug the terminal holes of power cord. The
neutral wire of the power cord must be
connected to the neutral terminal (N)
located in the center of terminal block. The
ground wire of the power supply cord must
be attached to the frame of range by using the green colored grounding screw. The live
wires must be connected to L1 and L2.
Plug washers and tighten nuts securely.
Assemble the Terminal Block Access Plate.
