11
Middle Door Hinge (15) Glass door with handle/gasket (16) Lower Door
Hinge (17) Adjustable Feet (18) Front Vent

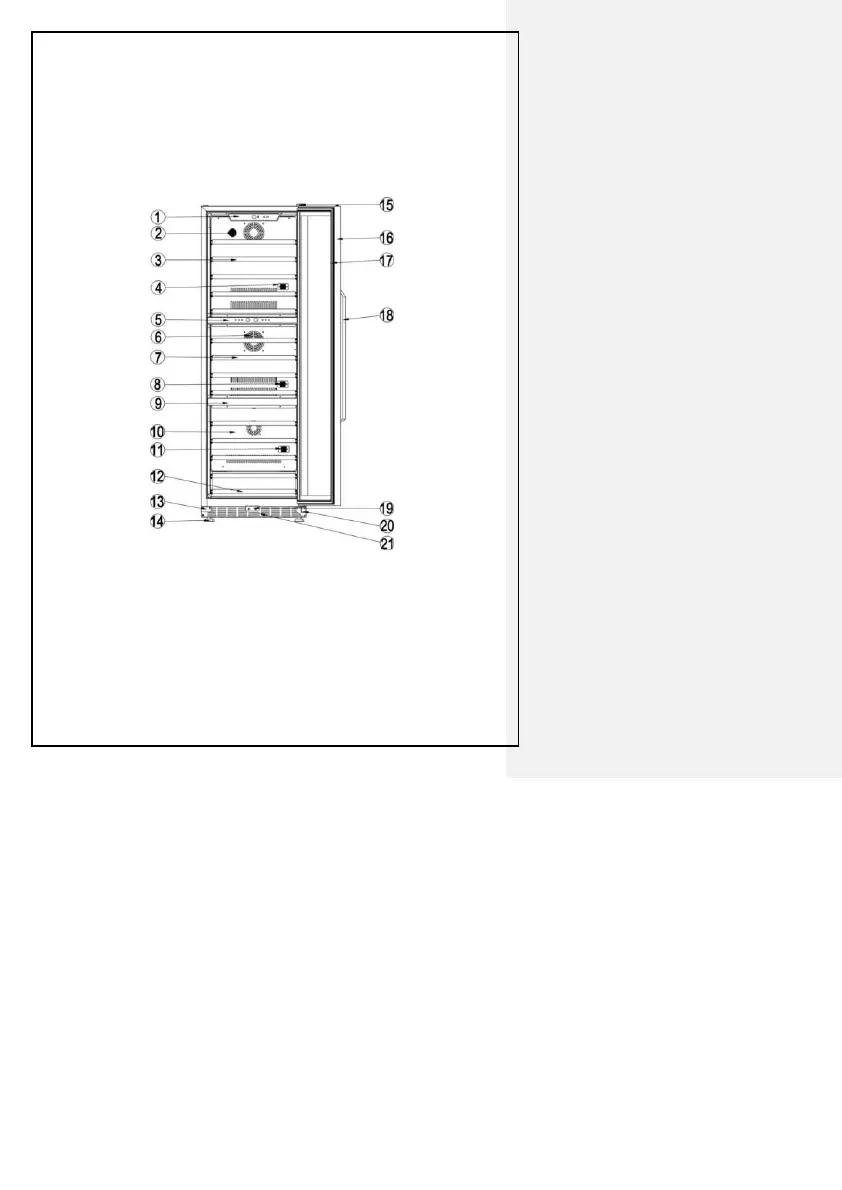

4. LW144T structure diagram：
(1) Upper Control Panel (2) Carbon Filter (3) Full Wooden Shelf (4) Upper
Sensor (5) Middle Control Panel (6) Middle Fan (7) Full Wooden Shelf (8)
Middle Sensor (9) Baffle Plate (10) Rear Air-Duct Board (11) Lower Sensor (12)
Small Wooden Shelf (13) Door Support Bracket
