FOG LIGHTS
(for versions/markets, where provided)

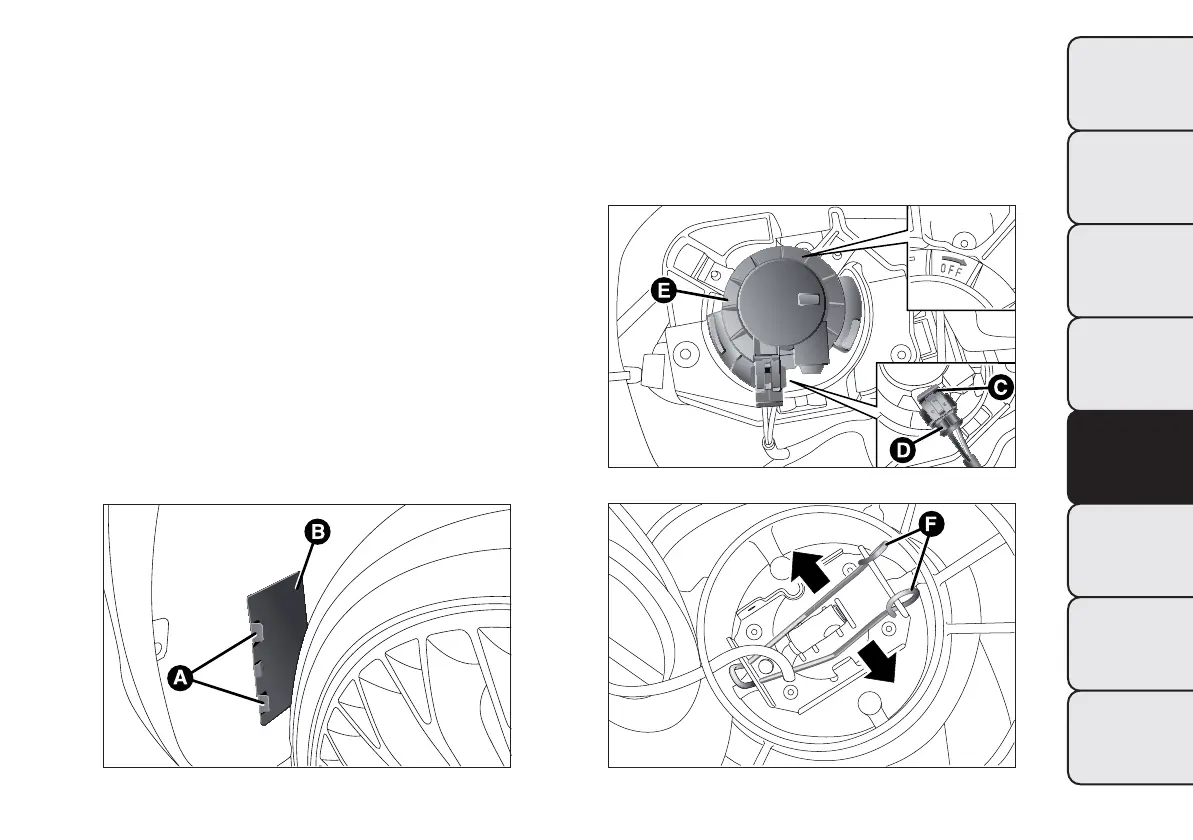

Replace the bulb as follows:
❒ steer the wheel completely;
❒ adjust the tabs A fig. 131 and remove the flap
B;
❒ adjust the catch C fig. 132 and disconnect the
electrical connector D;
❒ remove the cover E by turning it clockwise (see
the word OFF and the arrow on the cover);
❒ release the catches F fig. 133 removing them
outwards;
❒ release the connector G fig. 134 and replace the
bulb H;
❒ refit the new lamp and carry out the procedure
described previously in reverse.
REAR LIGHT CLUSTERS
These contain the bulbs for the side lights, brake
lights and direction indicators. The reversing
lights and rear fog lights are located instead in the
rear bumper.
fig. 131
L0F0205
fig. 132
L0F0206
fig. 133
L0F0207
