4200 & 4400 NT ST Utility
V
ehicles
T
reker 700-108P
02/19/09
T
able of Contents
P
ar
t Number Index
Land Pride
Section 2:
Fr
ame & Suspension
TREKER 00 SERIES

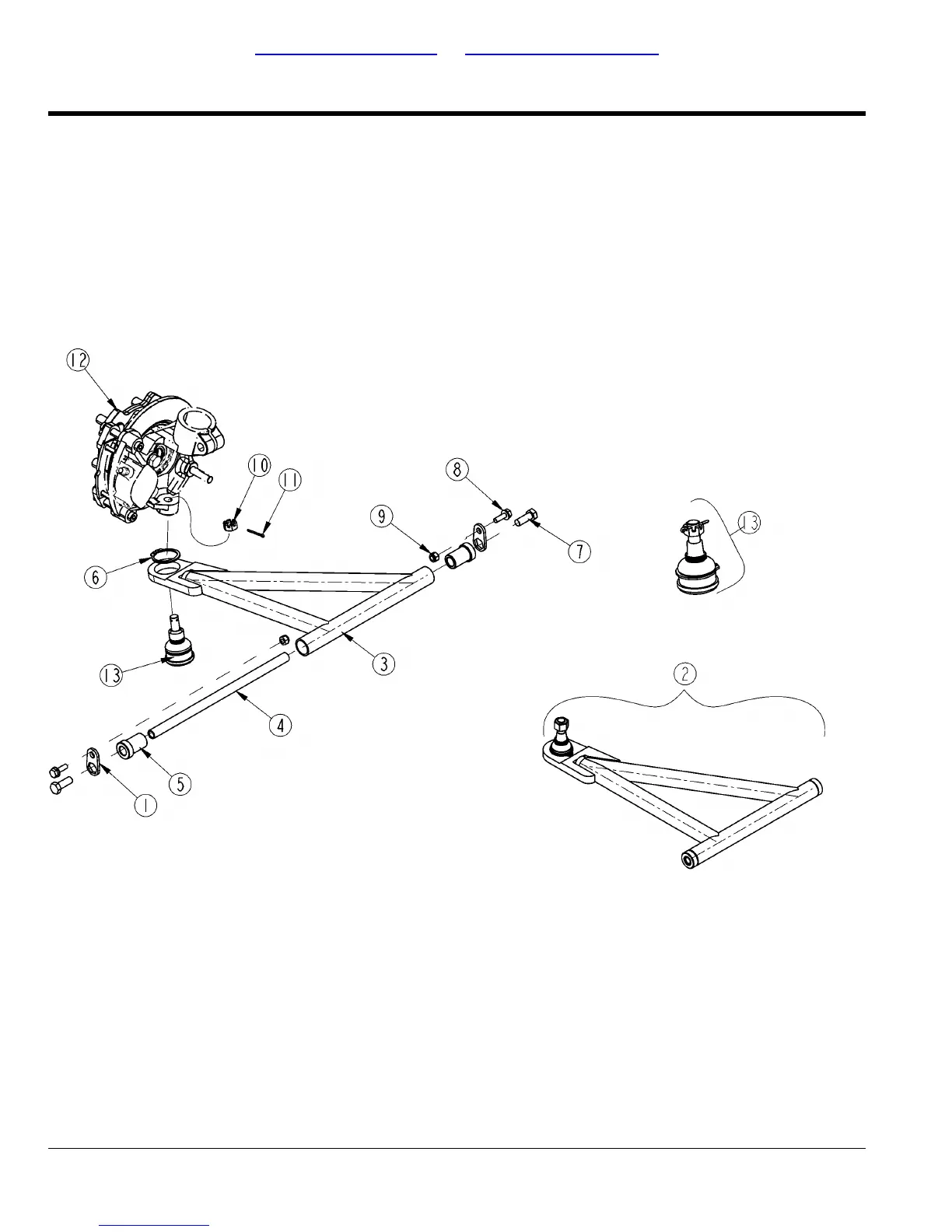

Lower Contr
ol Arm S/N 400270
T
o 407690
Applies to 4200NT
,
4200ST
,
4400NT
, 4400ST
7
9
Table of Contents
Default Chapter
1
Parts Manual
1
Section 1: Introduction
4
Using this Manual
4
Manual Replacement Information
4
Manual Revisions
4
Touch-Up Paint
4
Hardware Legend
5
Replacement Hardware
5
Serial Numbers
5
Part Number Service Coding
5
Section 2: Frame & Suspension
6
Lower Control Arm S/N 400269
6
Lower Control Arm S/N 400270 to 407690
8
Lower Control Arm S/N 407691 to 464184 ST: S/N 407691 to 464880 NT
10
Lower Control Arm S/N 464185+ ST: S/N 464881+ NT
12
Main Frame
14
Shock Front
16
Shock Rear
18
Trailing Arm (S/N 464191-)
20
Trailing Arm (S/N 464192+)
22
Section 3: Steering Components
24
Steering Components (S/N 429606- NT) (S/N 434129- ST)
24
Steering Components (S/N 429607+ NT) (S/N 434130+ ST)
26
Section 4: Throttle
28
Throttle Components
28
Section 5: Brakes
30
Brake Drum Rear Components
30
Front Brake System
32
Front Disc Brake Components
34
Rear Brake System
36
Section 6: Drive Train
38
CV Driveshaft S/N 434125 to 437241
38
Drive Belt Components
40
Engine Mounting Honda
42
Front Differential Components
44
Front Differential, Axleshaft and Driveshaft
48
Shift Selector Components
50
Transaxle Rear and Axle Shafts
52
Transaxle Rear Components
54
Transfer Case and Rear Driveshaft S/N 484886- ST S/N 464194- NT
58
Transfer Case and Rear Driveshaft S/N 484887+ ST S/N 464195+ NT
60
Transfer Case Components
62
Section 7: Air Filtration
64
Air Filter Components, NT
64
Air Filter Components, ST
66
Section 8: Exhaust System
68
Exhaust Components (S/N 440720+)
68
Exhaust Components NT & ST S/N 440719-)
70
Section 9: Fuel System
72
Fuel System Components
72
Fuel System Components, NT
74
Section 10: Electrical System
76
Electrical Wiring NT S/N 464880- ST S/N 464184
76
Electrical Wiring NT S/N 464881+ ST S/N 464185
78
Electrical Wiring Schematic, Main 00 Series NT
80
Electrical Wiring Schematic, Main 00 Series ST
82
Instrument Panel, 4200 (S/N 418338-)
84
Instrument Panel, 4200 (SN 418339 to 440716)
86
Instrument Panel, 4400 (S/N 418338-)
88
Instrument Panel, 4400 (S/N 418339 to 440713)
90
Insturment Panel, 4200 (S/N 440714+)
92
Insturment Panel, 4400 (S/N 440714+)
94
Section 11: Four Post Accessory and Seats
96
Four Post Accessory Bar
96
Seat Components
98
Section 12: Panels and Shields
100
Panels and Shields, NT S/N (460319-)
100
Panels and Shields, ST (S/N 460319-)
102
Panels Sheilds & Choke Cable ST(S/N 460320+)
104
Panels Shields & Choke Cable NT S/N (460320+)
106
Section 13: Hood and Cargo Box
108
Cargo Box Components
108
Cargo Box Tilt Lock-Down Latch
110
Cargo Box Tilt Lock-Up Arm
112
Hood Components
114
Section 14: Tires
116
Front Tires
116
Rear Tires
118
Section 15: Decals
120
Decals
120
NT ST Camo and Decal Components
122
Section 16: Options
124
CVT Enclosure Kit
124
Front Bumpers
126
