L&R Quantrex Q310 - Interconnecting Tank and Generator

12
If a sink and sink drain are near the location the recessed
cleaner is to be installed, we recommend changing the
sink’s tailpiece to a “dishwasher tailpiece”. Then, using an
appropriate combination of adapters/fittings, the drain

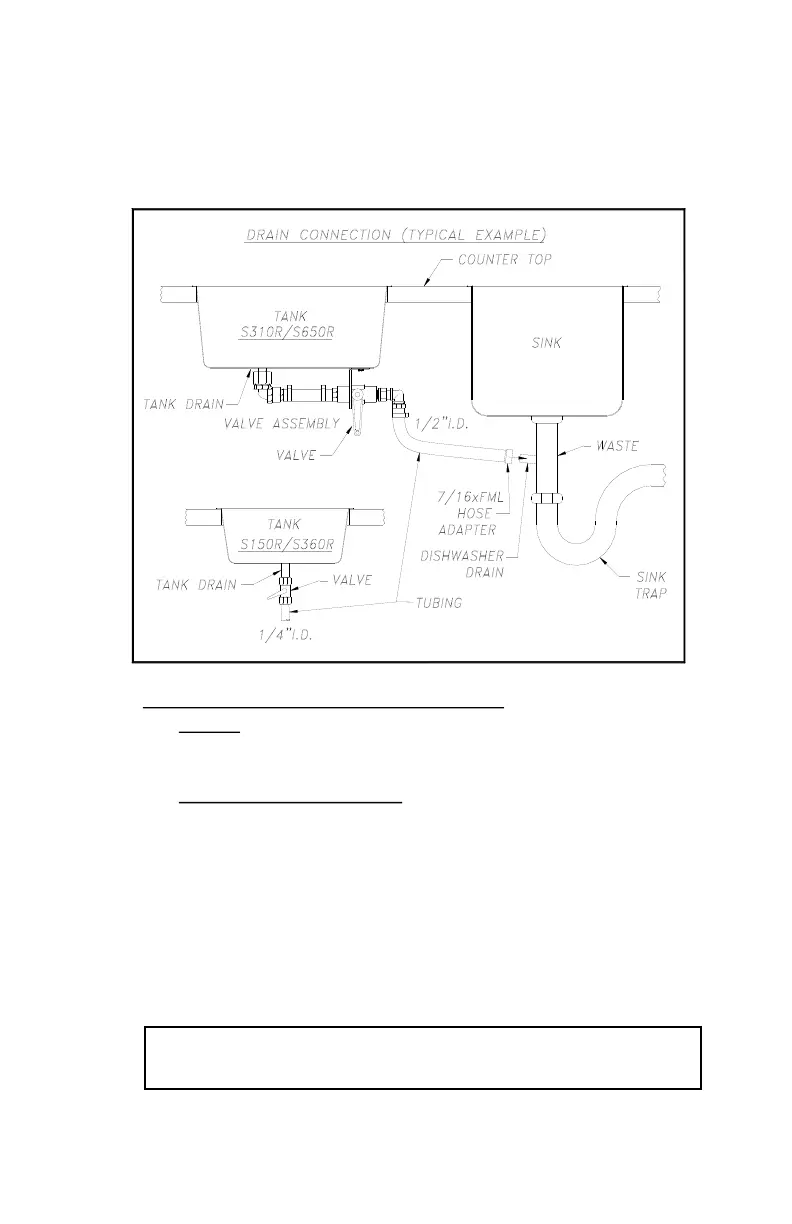

tubing can be connected to the tailpiece. See sketch.
Interconnecting The Tank and Generator
 S150R—Connect the coaxial cable from the tank into
the R.F. connector on the rear of the generator
(Turn Clockwise to lock connector).
 S310R, S360R, S650R—Connect the coaxial cable
from the tank into the R.F. connector on the rear of the
generator (Turn Clockwise to lock connector) and the
thermo probe cable into the 3 pin connector on the rear
of the generator.
 Connect the green/yellow wire from the tank to an
appropriate earth ground such as a cold water supply pipe
using a grounding clamp or similar approved grounding
device.
Do not attempt to connect or disconnect any cables with the
generator plugged in. Connect the generator plug last.
