54

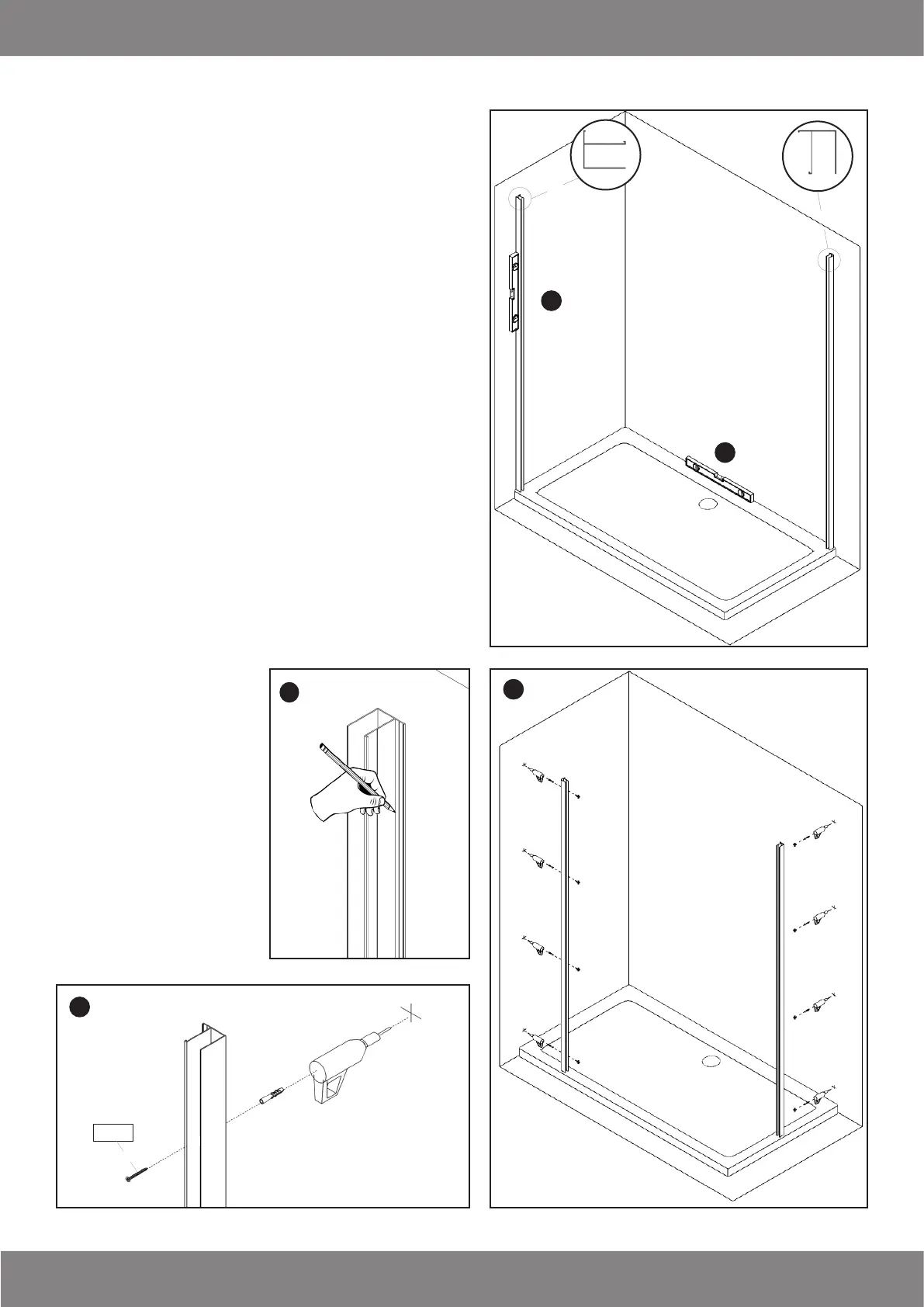

MOUNTING
1. Check that the shower tray is level.
2. Place the profiles on the wall and use
the plumb level .
3. Trace the holes in the wall with a pen-
cil .
4. Drilling holes in the wall.
Only the wall profile rela-
ting to the sliding door must be perma-
nently installed on the wall.
Not e : on the fixed glass side, insert wall
plugs for 8th step in any case.
1
2
5
4
A
A
8*30
3
