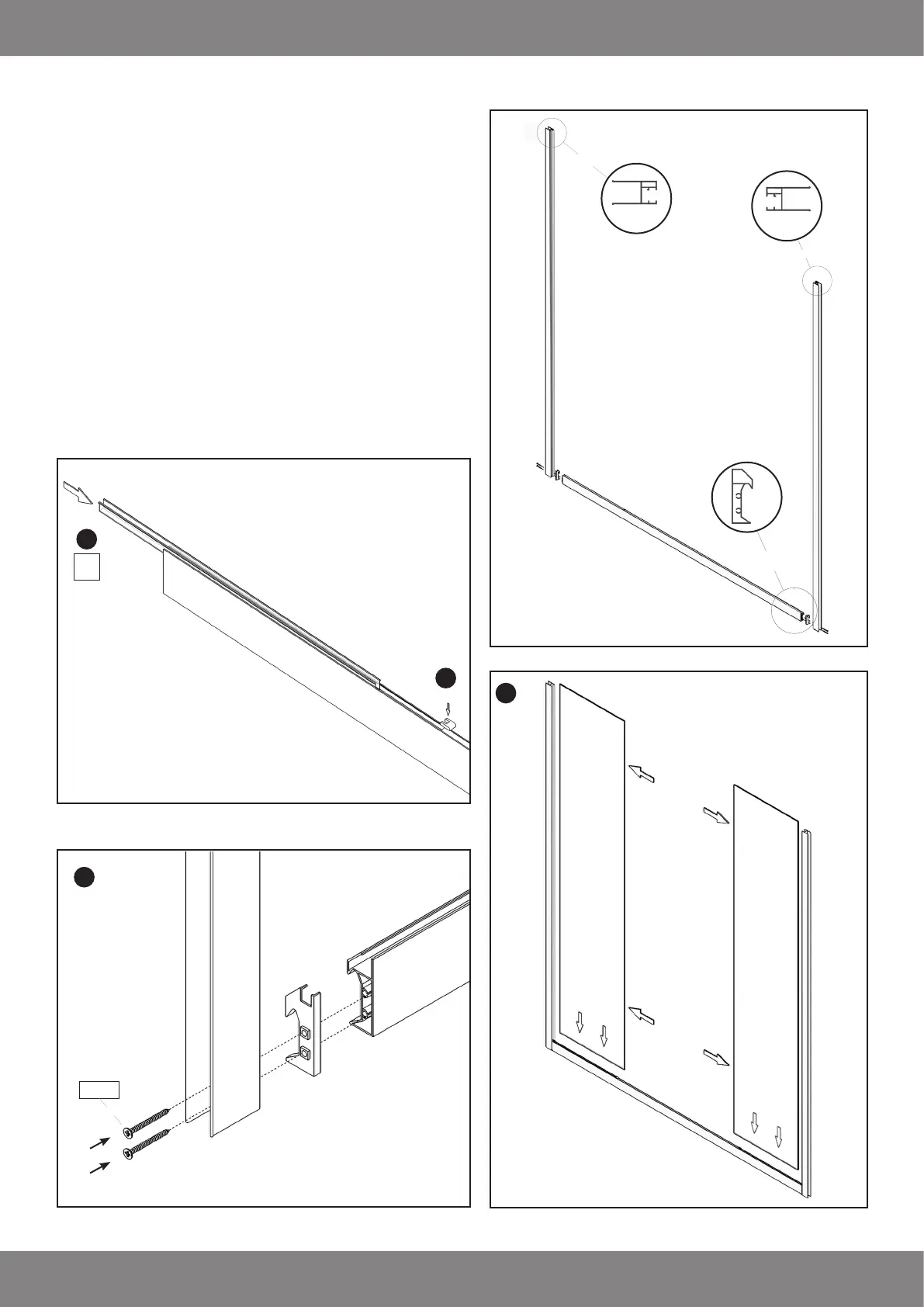

1. Position the glass retainer cover.
2. Place the gasket in the lower profile
(glass protection gasket).
3. Use the 8x30 screw to connect the
lower aluminium rail with the vertical
profiles; connectors must be inserted
between the rail and the profiles.
In this way we construct the door fra-
me (skeleton).
4. Insert the fixed glass panes as shown.
