2° PASSAGE

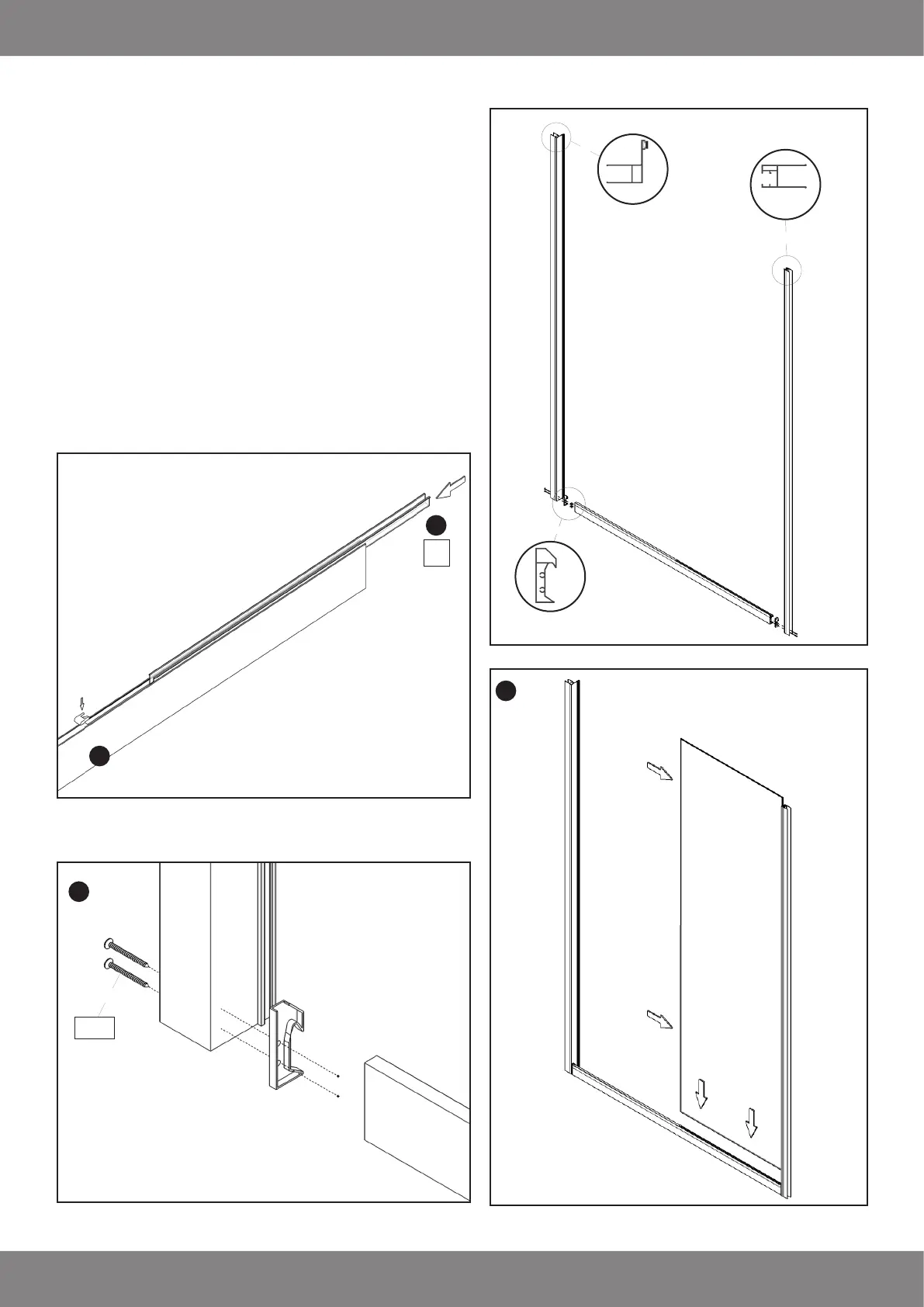

1. Position the glass protection cover.
2. Place the gasket in the lower profile
(glass protection gasket).
3. Use the 8x30 screw to connect the
lower aluminium rail with the vertical
profile; the connector must be inser-
ted between the rail and the profile.
In this way we construct the
door frame (skeleton).
4. Insert the fixed glass pane as in the fi-
gure.
