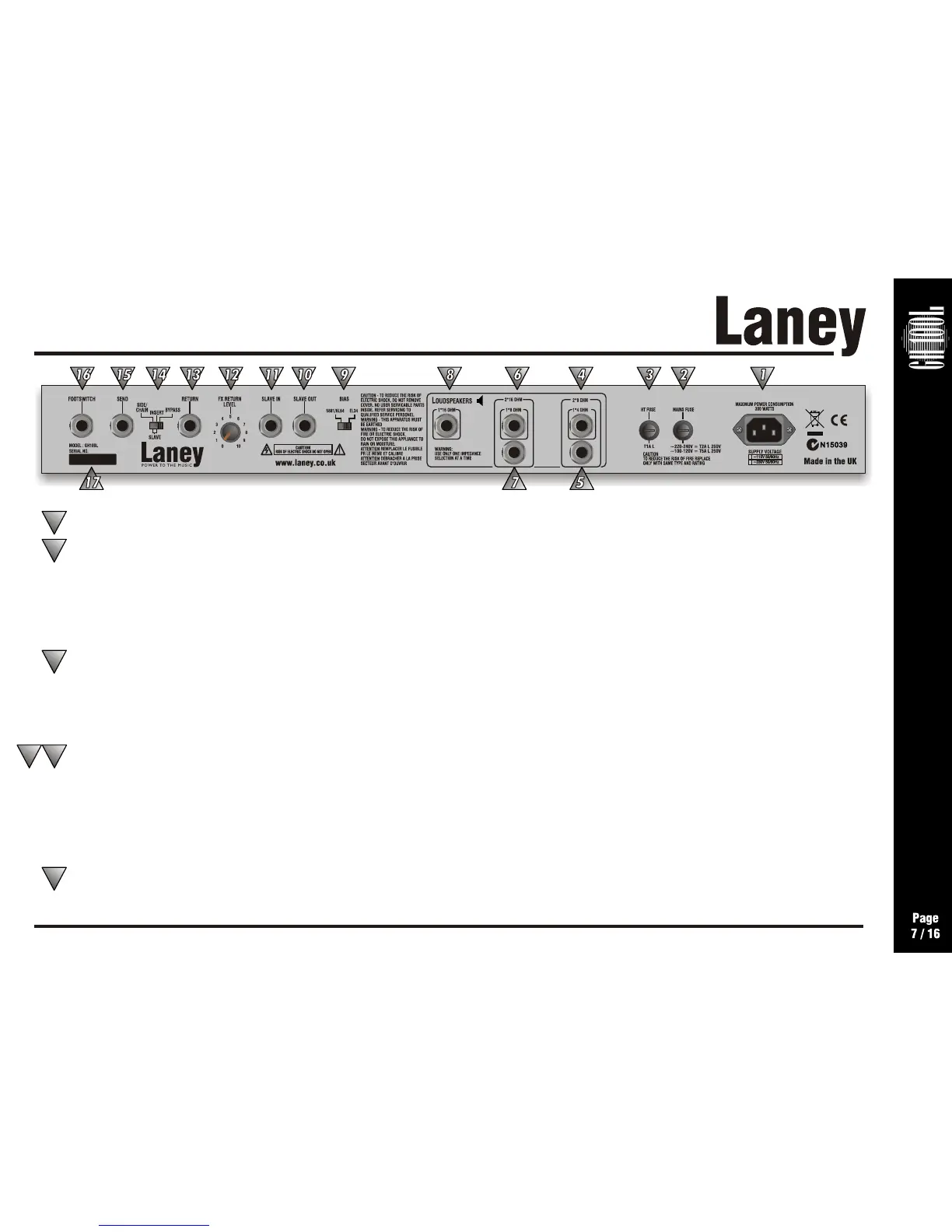

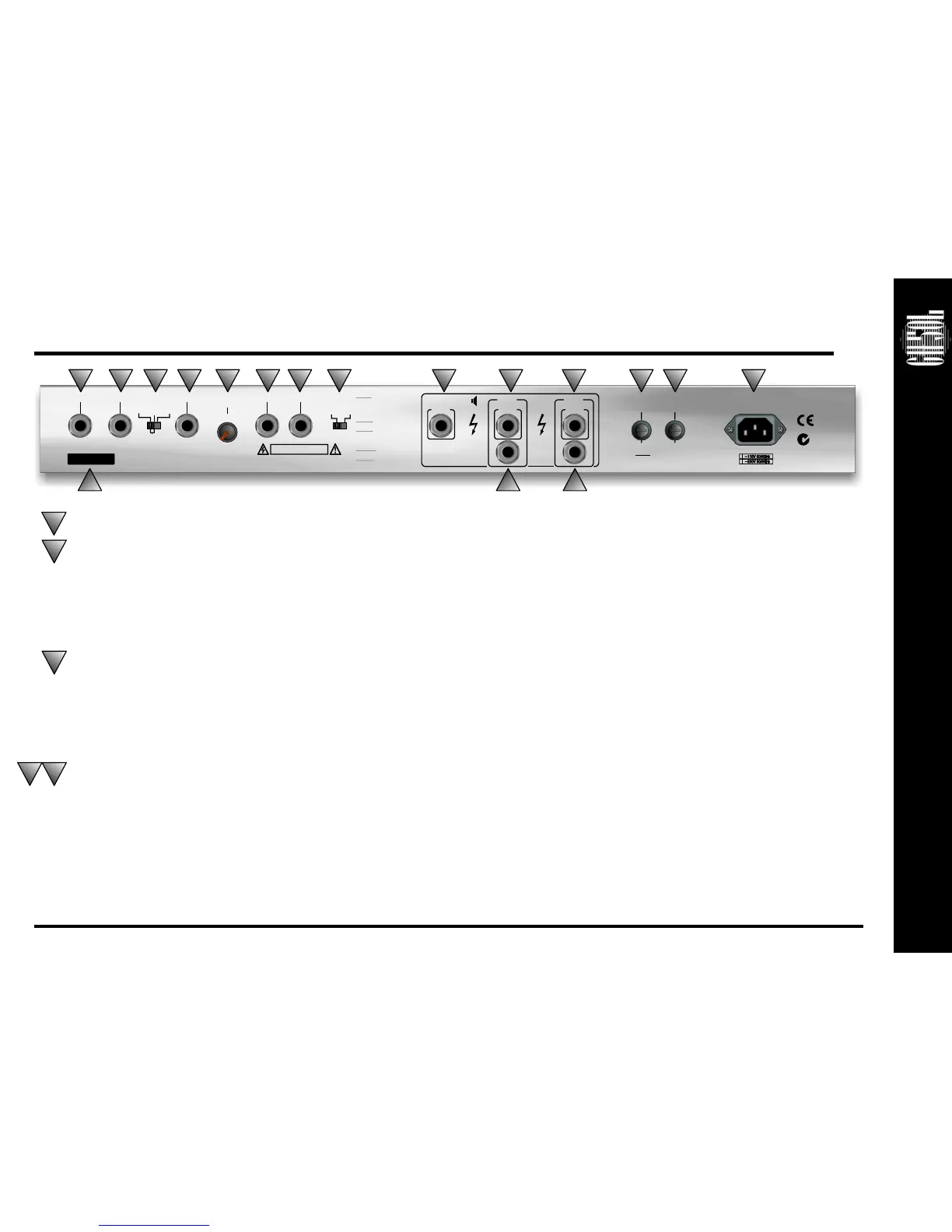

REAR PANEL CONTROLS
11
22
33
POWER INLET SOCKET: Connect to your power source. Make sure the specified voltage is correct for your country!
POWER FUSE: This is the main safety fuse for the unit. The fuse protects the AC power to the amplifier. USE ONLY THE
CORRECT SIZE AND RATING OF FUSE AS SPECIFIED ON THE PANEL. If a fuse blows or fails and a replacement of the same size
and rating is installed and it in turn blows, the amplifier has suffered a malfunction internally and needs immediate service from a
qualified technician. DO NOT TRY USING A FUSE OF HIGHER RATING. Using a fuse that is too large in current rating may cause
serious, irreparable damage to the amplifier and presents a serious fire hazard. The mains fuse ratings are detailed in the specs section
at the rear of this manual
HT FUSE: This fuse protects the DC power to the tubes within the amplifier. USE ONLY THE CORRECT SIZE AND RATING
FUSE AS SPECIFIED ON THE PANEL. If a fuse blows or fails and a replacement of the same size and rating is installed and it in turn
blows, the amplifier has suffered a malfunction, at this point check the output tubes and replace faulty ones if required. Should tubes
not be the problem the amplifier should be checked out by a qualified technician. Do not try using a fuse of greater value. Using a
fuse that is too large in current rating may cause serious, irreparable damage to the amplifier. Fuses are designed to protect, do not
take chances.
LOUDSPEAKERS: Loudspeaker outlets are provided on a series of five jack sockets. The impedance of the
loudspeaker/s should be checked and connected to the appropriate socket/s. Using the incorrect sockets will reduce the life of your
output tubes and won’t sound as good and in extreme cases could damage your amplifier.
IMPORTANT: Operation of your GH50L amplifier without a loudspeaker connected could result in expensive failure of your
output transformer. DO NOT OPERATE WITHOUT A LOUDSPEAKER CONNECTED.
There are dedicated optimised outputs for the following loudspeaker combinations:
1*16 ohm, 1*8 ohm, 2*16 ohm, 1*4 ohm, 2*8 ohm.
¼” (6.3mm)
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
SUPPLY VOLTAGE
HT FUSE
CAUTION
TO REDUCE THE RISK OF FIRE REPLACE
ONLY WITH SAME TYPE AND RATING
MODEL : GH50L
SERIAL NO.
1*16 OHM
MAXIMUM POWER CONSUMPTION
300 WATTS
CAUTION - TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER. NO USER SERVICABLE PARTS
INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONEL.
WARNING - THIS APPARATUS MUST
BE EARTHED
WARNING - TO REDUCE THE RISK OF
FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
ATTENTION REMPLACER LE FUSIBLE
PR LE MEME ET CALIBRE
ATTENTION DEBRACHER A LA PRISE
SECTEUR AVANT D’OUVRIR
Laney
N1646N1646
T1A L
MAINS FUSE
~220-240V = T2A L
~100-120V = T5A L
1*8 OHM 1*4 OHM
2*16 OHM
2*8 OHM
LOUDSPEAKERS
WARNING:
USE ONLY ONE IMPEDANCE
SELECTION AT A TIME
5881/6L6
EL34
FOOTSWITCH
BYPASS
SIDE/
CHAIN
INSERT
SEND RETURN
5
4
3
2
1
0
10
9
8
7
6
FX RETURN
LEVEL
SLAVE IN SLAVE OUT BIAS
Made in the UK
www.laney.co.uk
SLAVE
PO W E R TO T HE M US IC
1616
771717 55
1515 1414 1313 1212 1111 1010 99 88 66 44 33 22 11
44
88
-
