13
14
13
1715
16
18
19
20
CABINETCABINET
MODEL LC30MODEL LC30
THIS APPARATUS MUST BE EARTHEDTHIS APPARATUS MUST BE EARTHED
WARNINGWARNING
VOLTAGEVOLTAGE
SUPPLYSUPPLY
POWER FUSEPOWER FUSE
HT FUSE
MADE IN U.K. BY BLT INDUSTRIES LTD.MADE IN U.K. BY BLT INDUSTRIES LTD.
SERIAL NO.SERIAL NO.
THIS APPLIANCE TO RAIN OR MOISTURE.THIS APPLIANCE TO RAIN OR MOISTURE.
ELECTRIC SHOCK DO NOT EXPOSEELECTRIC SHOCK DO NOT EXPOSE
TO REDUCE THE RISK OF FIRE ORTO REDUCE THE RISK OF FIRE OR
WARNINGWARNING
SERVICE PERSONNEL.SERVICE PERSONNEL.
REFER SERVICING TO QUALIFIEDREFER SERVICING TO QUALIFIED
NO USER SERVICEABLE PARTS INSIDE.NO USER SERVICEABLE PARTS INSIDE.
SHOCK DO NOT REMOVE COVER.SHOCK DO NOT REMOVE COVER.
TO REDUCE THE RISK OF ELECTRICTO REDUCE THE RISK OF ELECTRIC
CAUTIONCAUTION
RATING.RATING.
T250mAT250mA
WITH SAME TYPE ANDWITH SAME TYPE AND
OF FIRE REPLACE ONLYOF FIRE REPLACE ONLY
TO REDUCE THE RISK TO REDUCE THE RISK
CAUTIONCAUTION
MAXIMUM POWER CONSUMPTION
INTERNALINTERNAL
CABINETCABINET
4 OHM4 OHM
8 OHM8 OHM
EXTENSIONEXTENSION
RETURNRETURN
EFFECTS LOOPEFFECTS LOOP
SENDSEND
FOOTSWITCHFOOTSWITCH
REVERBREVERB
DRIVEDRIVE
TipTip
RingRing
Part No:- 8P-8532Part No:- 8P-8532
~~
250 WATTS 50-60 Hz250 WATTS 50-60 Hz
~~
~~
100V - 120V:-T5A100V - 120V:-T5A
220V - 240V:-T2A220V - 240V:-T2A
~
10

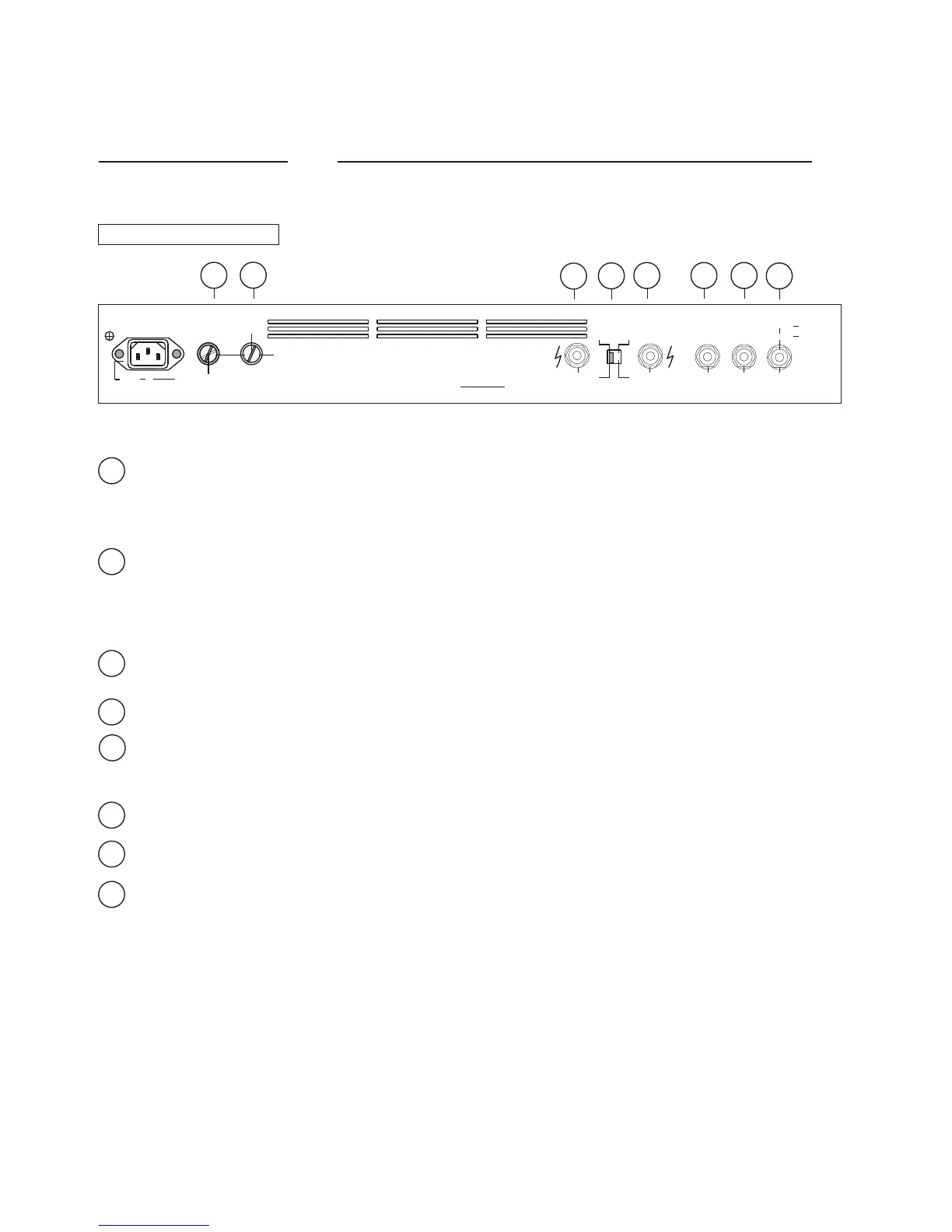

HT FUSE: This fuse protects the DC power within the amplifier. USE ONLY THE CORRECT SIZE AND RATING
FUSE AS SPECIFIED ON THE PANEL. If a fuse blows or fails and a replacement of the same size and rating is
installed and it in turn blows, the amplifier has suffered a malfunction, at this point check the output valves and
replace faulty ones if required. Should valves not be the problem the amplifier should be checked out by a qualified
technician. Do not try using a fuse of greater value. Using a fuse that is too large in current rating may cause serious,
irreparable damage to the amplifier. Fuses are designed to protect, do not take chances.
INTERNAL CABINET: 1/4" output jack factory connected to the 'on board' speaker. With no extension cabinet
connected ensure that switch (16) is set to 8 ohms.
IMPEDANCE SELECTOR SWITCH: This switches the internal impedance setting of the amplifier. When using
with the 'on board' speaker set to 8 ohms. When using an 8 ohm extension cabinet, set to 4 ohms.
EXTENSION SPEAKER SOCKET: Use to connect an 8 ohm extension cabinet. When an extension cabinet is
connected the resultant impedance will be 4 ohms and the speaker impedance switch should be set to 4 ohms.
Mismatched impedance will reduce the amplifiers performance and in some cases damage to your amplifier
EFFECTS LOOP, SEND: This provides an output from the preamplifier to drive effects units in conjunction with
(19)
EFFECTS LOOP RETURN: This is provided to receive the output from an external effects unit being driven from
the send socket(18)
FOOTSWITCH SOCKET: Provided for the connection of a Laney FS2 footswitch (optional)
20
15
18
17
14
16
POWER FUSES: This fuse protects the AC power of the overall amplifier. USE ONLY THE CORRECT SIZE
AND RATING OF FUSE AS SPECIFIED ON THE PANEL. If a fuse blows or fails and a replacement of the same
size and rating is installed and it in turn blows, the amplifier has suffered a malfunction internally and needs
immediate service from a qualified technician. DO NOT TRY USING A FUSE OF HIGHER RATING. Using a fuse
that is too large in current rating may cause serious, irreparable damage to the amplifier and presents a serious fire
19
Laney
4
EXPLANATION OF TERMS
