Laney LFR-212 - Basic Set-Up Diagram

www.laney.co.uk
7
www.laney.co.uk
LFR-212
USER MANUAL
Main output from sound source. For mono use Left (mono).
For a stereo rig use left (mono) & right to independent LFR-212 cabinets
Due to the exibility oered by modelling set ups it is not possible to cover all the set-up options
available in this manual. Below is a basic set up to get you going. For further information on
alternative ways to utilise your LFR-212 please consult the Laney website periodically

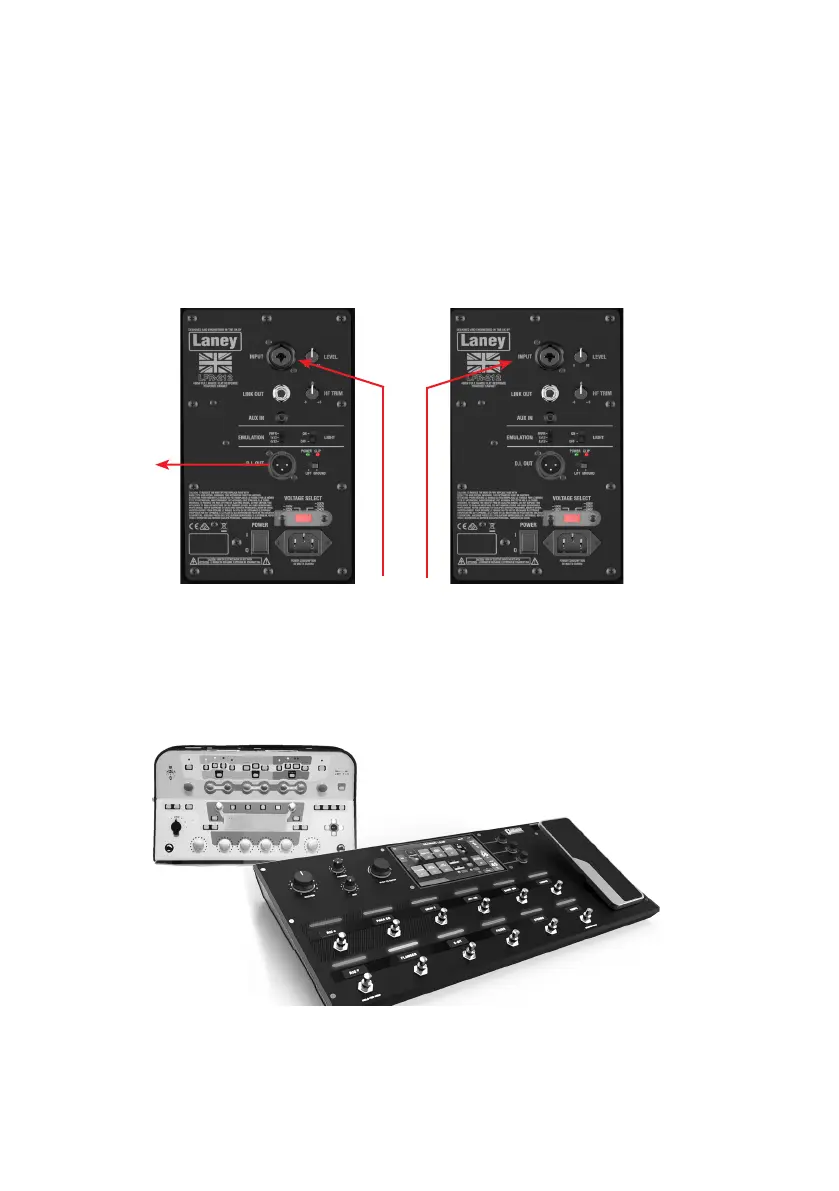

BASIC SET-UP DIAGRAM
SOUND SOURCE - modelling preamp, pedal
board, DAW or eects processor
Output to mixing
desk can be selected
to be either FRFR or
cabinet emulated
