POWER: Main power switch for unit.
POWER INLET SOCKET. Connect to your power source. Make sure the specified voltage is correct for your country!
POWER FUSE: This drawer contains the main safety fuse for the unit. The fuse protects the AC power to the amplifier.
USE ONLY THE CORRECT SIZE AND RATING OF FUSE AS SPECIFIED ON THE PANEL. If a fuse blows or fails and a
replacement of the same size and rating is installed and it in turn blows, the amplifier has suffered a malfunction internally and
needs immediate service from a qualified technician. DO NOT TRY USING A FUSE OF HIGHER RATING. Using a fuse that
is too large in current rating may cause serious, irreparable damage to the amplifier and presents a serious fire hazard. The
mains fuse ratings are detailed in the specs section at the rear of this manual
HT FUSE: This fuse protects the DC power to the tubes within the amplifier. USE ONLY THE CORRECT SIZE AND
RATING FUSE AS SPECIFIED ON THE PANEL. If a fuse blows or fails and a replacement of the same size and rating is
installed and it in turn blows, the amplifier has suffered a malfunction, at this point check the output tubes and replace faulty
ones if required. Should tubes not be the problem the amplifier should be checked out by a qualified technician. Do not try
using a fuse of greater value. Using a fuse that is too large in current rating may cause serious, irreparable damage to the
amplifier. Fuses are designed to protect, do not take chances.
EXTENSION CABINET: Use to connect an 8-16 ohm extension cabinet. Please note mismatched impedance will reduce
the amplifiers performance and in some cases may cause damage to your amplifier. Set the switch to the 8 ohm when using
only the internal loudspeaker, switch to the 4 ohm setting when connecting to an additional 8 ohm cabinet. Try the L5T-112
into a Laney Lionheart LT-212 cabinet - you will be amazed what this little baby cranks out. Note: If the onboard loudspeaker
jack is removed, an 8 ohm cabinet can be connected directly to the 8 ohm socket.
OPERATING INSTRUCTIONS
1
3
2
4 5 6
7
8
1
2
3
4

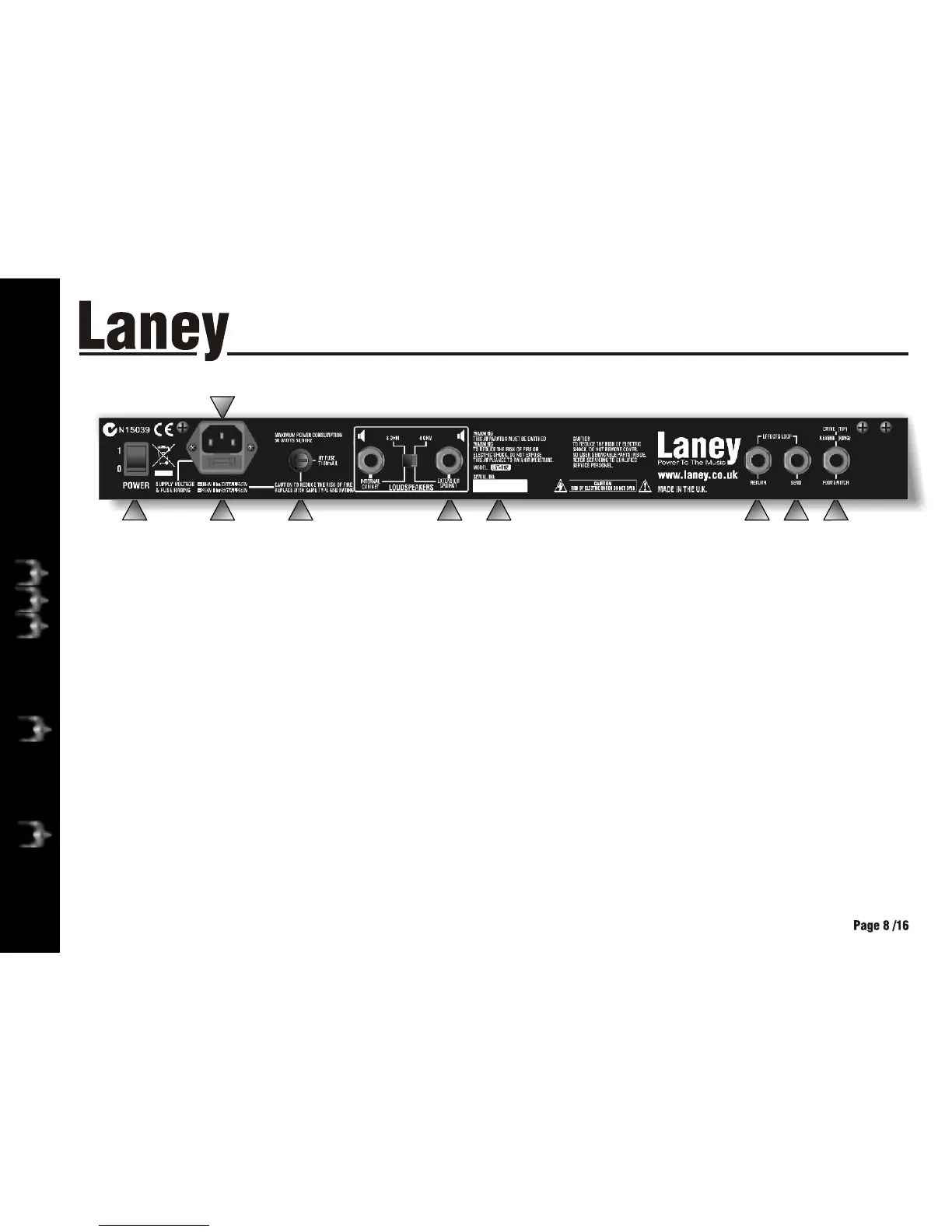

L5T - 112 REAR
L5T
-112
9
5
