Controls the amount of reverb applied to the signal. (LX20R only)
Fancy playing along with a backing track? Connect your CD/MP3 player here.
Don’t want to wake your neighbours? Connect your headphones here. The internal loudspeaker is automatically switched off.
When ‘on’ Indicates that power is connected to the unit and it is ready to go.
(Always switch off and disconnect the power cord when not in use)
Main power switch for the unit.
5
This socket should be used for connecting your instrument to the amplifier. Only use a good quality screened cable.
Controls the volume level of the clean channel.
Switch in to activate the overdrive ‘Crunch’ channel. When active, control the amount of distortion with and the overall
volume with
Indicates that the drive channel is active.
Controls the crunch channel gain, low down for classic rock and blues, higher up for hard rock and metal.... the higher you go
the more Extreme it gets. Use in conjunction with to get the overall level balanced how you want it.
Controls the overall level on the drive channel. Use with
Controls the amount of bass or bottom end present in your sound.
Controls the amount of mid present in you sound.
Controls the amount of treble present in your sound.
5
6
6
5
1
Page 6 /12 Page 7 /12
2
3
4
6
7
8
9
10
11
12

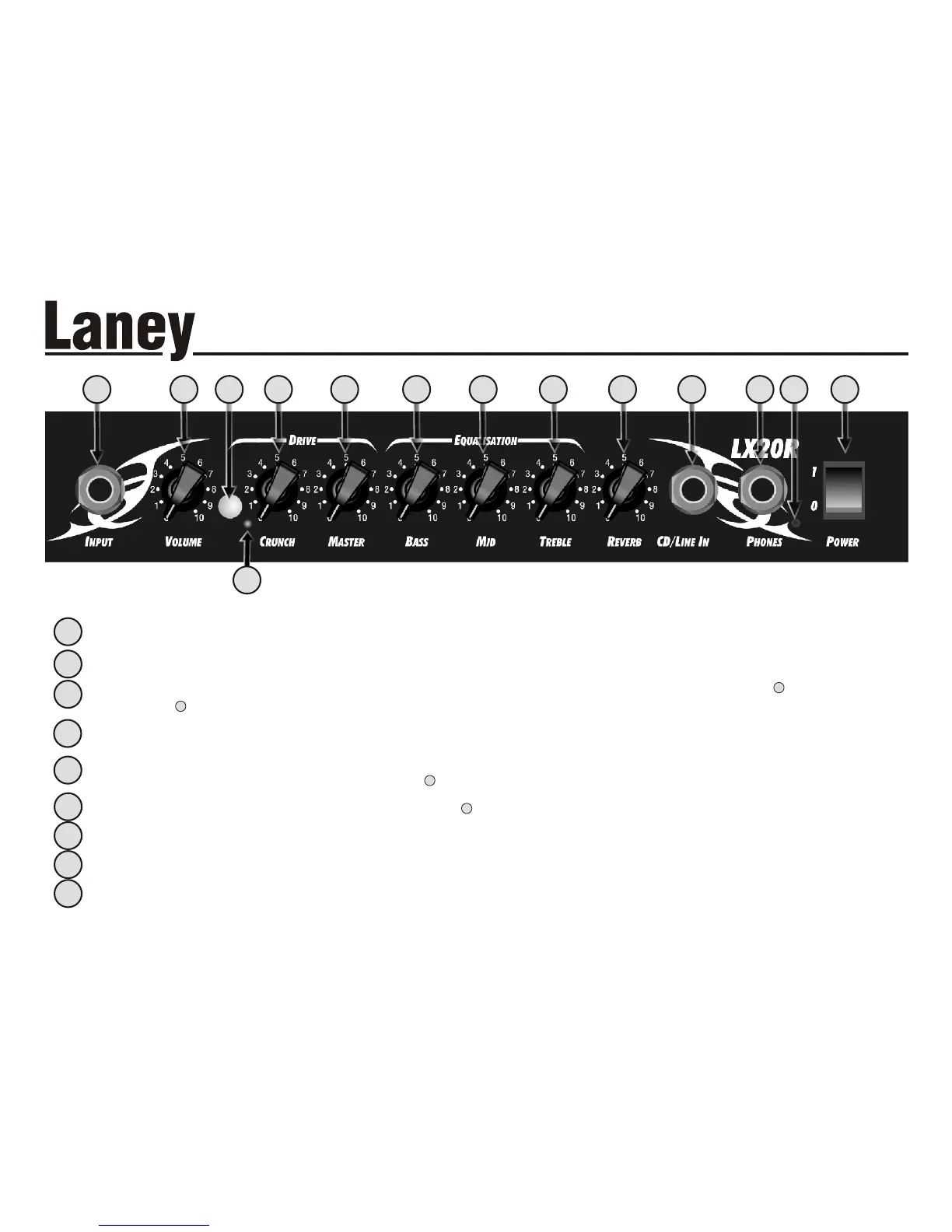

FRONT PANEL CONTROLS
OPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS
Power inlet socket. Connect to your power source. Make sure the specified voltage is correct for your country!
Displays the model number, power requirements and serial number of the unit.
1 2 5 6 7 8 12 14133 9 1110
4
13
14
16 17
16
17
To Next Page
