Laney RB9 - Rear Panel Controls and Connections; Power Inlet, Fuse, and Serial Number; Speaker Outputs and Impedance; Tuner Out and FX Loop

3 5 6
1
Page 8 /12 Page 9 /12
2
3
4
5

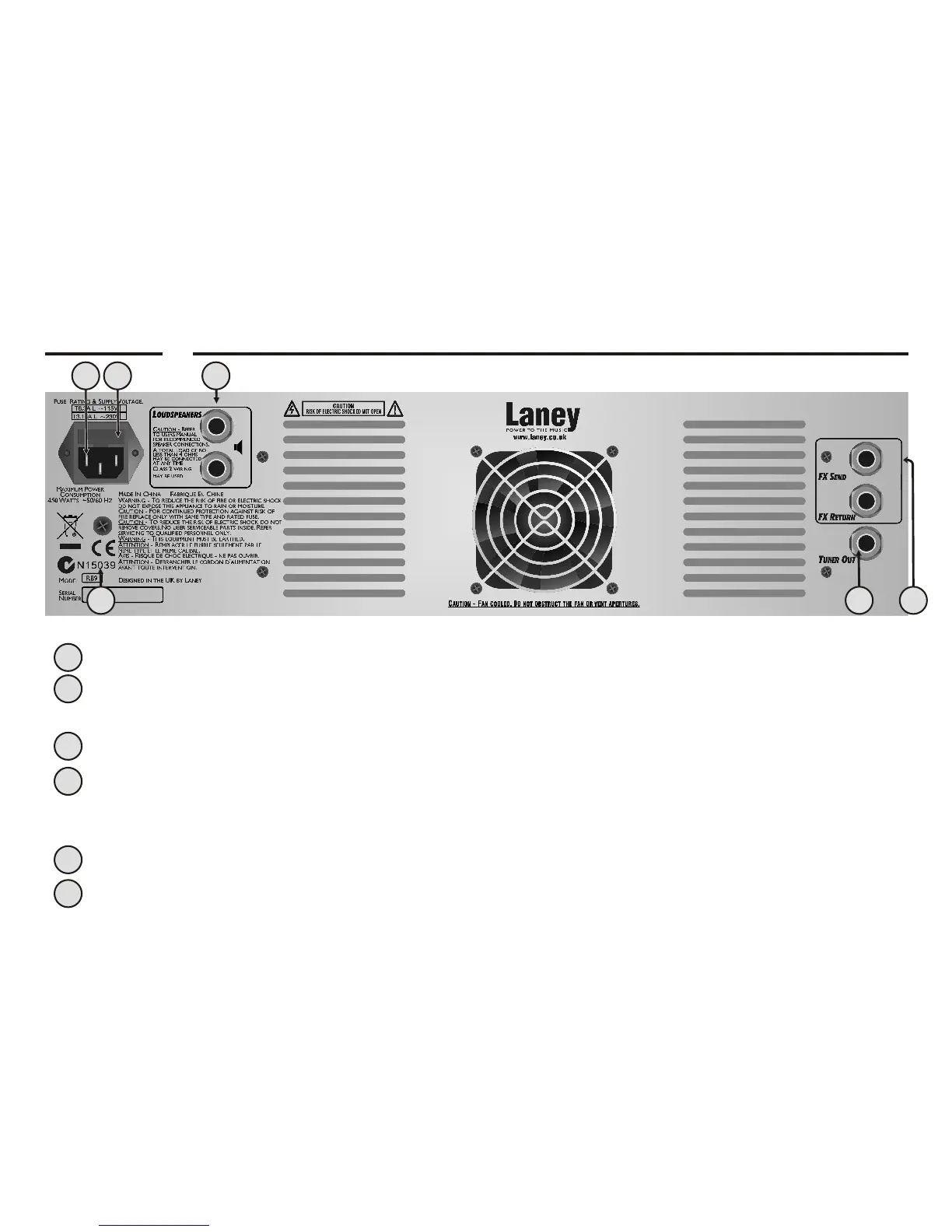

Power inlet socket. Connect to your power source. Make sure the specified voltage is correct for your country!
This drawer contains the main safety fuse for the unit.
USE ONLY THE CORRECT SIZE AND RATING OF FUSE AS SPECIFIED ON THE PANEL.
The mains fuse ratings are detailed in the specs section at the rear of this manual.
Serial Number and model of your unit.
These sockets should be used to connect to your loudspeaker cabinets. The Total impedance of the cabinets must not be less
than 4 Ohms. Connecting cabinets that have a lower impedance than 4 Ohms will result in the amplifier overheating.
Continual use in this manner may cause permanent damage. The best combination of cabinets to use is one RB115 and one
RB410 cabinet.
Socket for connecting external tuner. This output is taken before any processing so the Volume control may be turned down for
silent tuning.
Send and return sockets are provided for connecting external effects-units. You can also use the Send socket as a line out if you wish.
