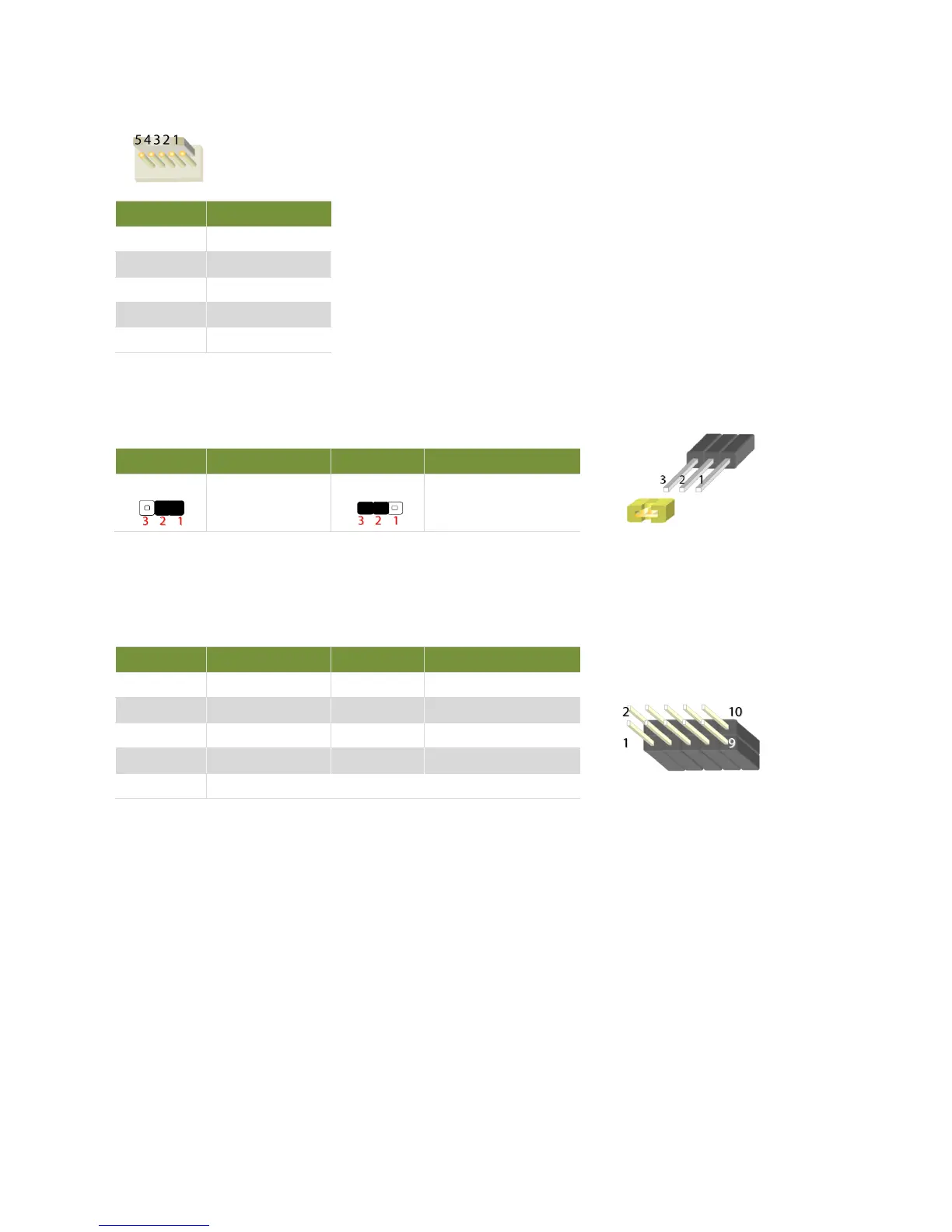

Chapter 2: Motherboard Information
JFAN1~4: 5-Pin FAN Connector
J27: Jumper for Reset
JUSB1: USB 2.0 internal pin header
Pin
Description
1
Ground
2
12V
3
RPM Sense
4
RPM Sense
5
PWM Status
Setting
Description
Setting
Description
1.2
HW reset
2.3
SW reset
Pin
Description
Pin
Description
1
P5V_USB1
2
P5V_USB1
3
USB20_L_N0
4
USB20_L_N1
5
USB20_L_P0
6
USB20_L_P1
7
USBGND1
8
USBGND1
9
USBGND1
10
USBGND1
