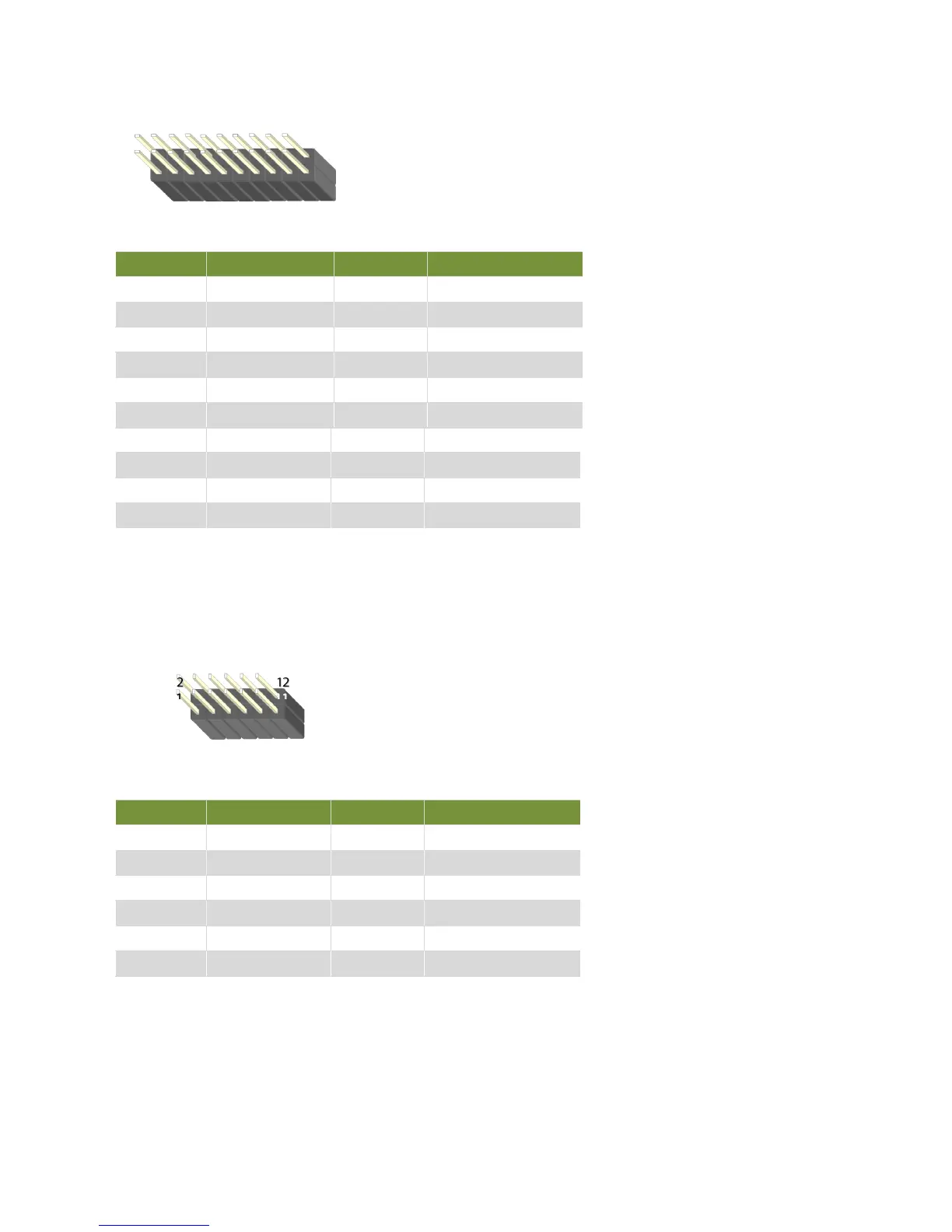

JUSB2: USB 2.0/3.0 Internal Connector
JVGA1: VGA interface connector
Pin
Description
Pin
Description
1
2
USB20_L_P2
3
USB20_L_P3
4
USB20_L_N2
5
USB20_L_N3
6
USBGND02
7
USBGND02
8
USB30_TX2P_C_L
9
USB30_TX1P_C_L
10
USB30_TX2N_C_L
11
USB30_TX1N_C_L
12
USBGND02
13
USBGND02
14
USB30_RX2P_L
15
USB30_RX1P_L
16
USB30_RX2N_L
17
USB30_RX1N_L
18
P5V_USB2
19
P5V_USB2
20
Pin
Description
Pin
Description
1
DAC_RO
2
Ground
3
DAC_GO
4
Ground
5
DAC_BO
6
Ground
7
HSYNC_O
8
9
VSYNC_O
10
Ground
11
DDC_DATA
12
DDC_CLK
