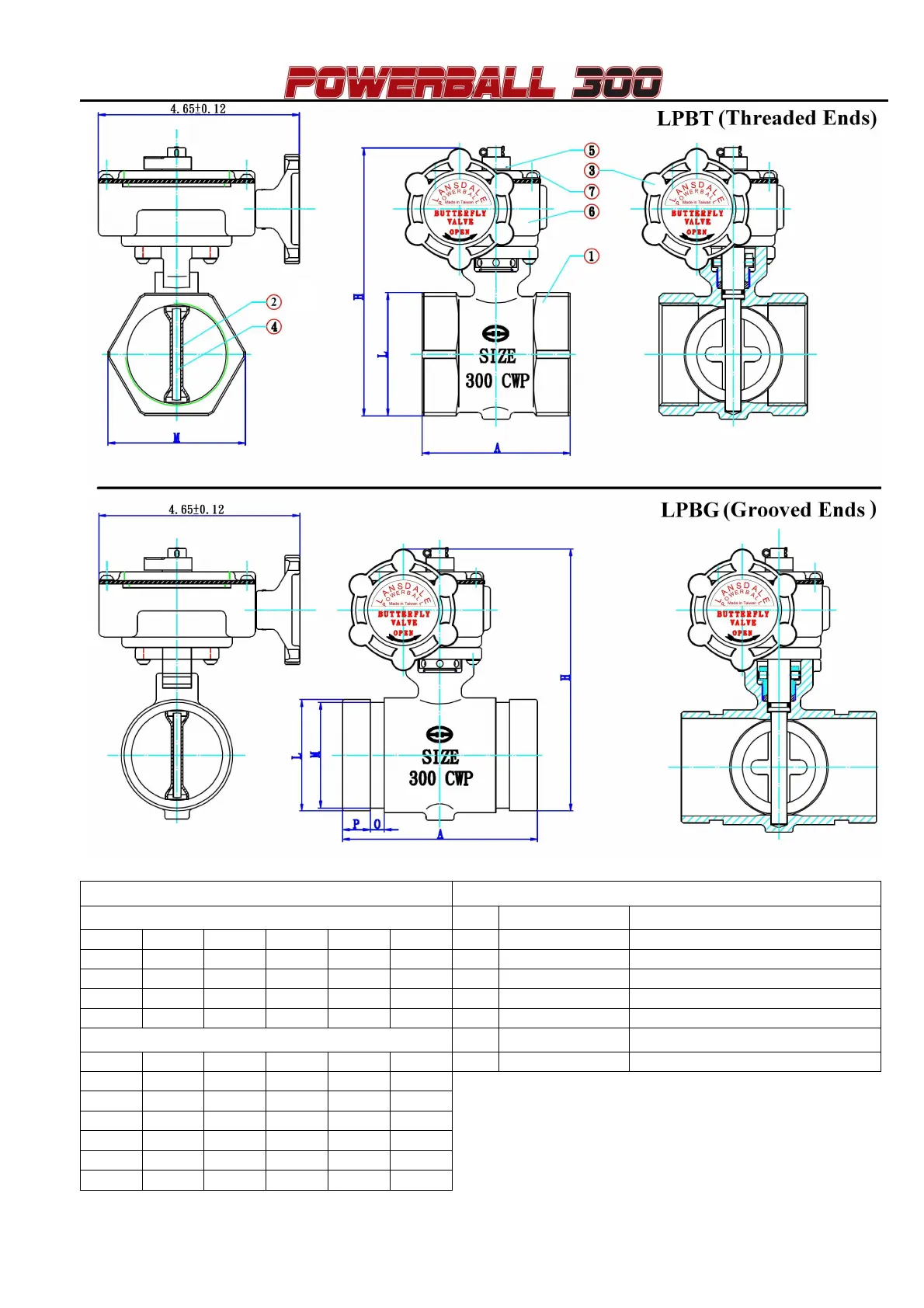

MAIN DIMENSIONS ─
──
─
UNIT:INCHES
MATERIAL LIST
LPBT (Threaded Ends)
NO.
NAME MATERIAL
SIZE 1” 1-1/4”
1-1/2”
2” 2-1/2”
1 BODY BRONZE ASTM 584 C83600
A 2.13 2.63 2.87 3.25 4.49 2 DISC SS304
H 4.94 5.13 5.59 6.13 6.58 3 HANDWHEEL ASTM A216 WCB
L 1.56 1.94 2.19 2.76 3.41 4 SEAT ASTM D2000 VITON
M 1.75 2.17 2.37 3.11 3.78 5 INDICATOR POWDER METAL FD0205 95HT
LPBG (Grooved Ends)
6 HOUSING BRASS ASTM B16 C36000
SIZE 1” 1-1/4”
1-1/2”
2” 2-1/2”
7 COVER BRASS ASTM B16 C36000
A 3.86 4.02 4.09 4.49
H 5.20 5.47 6.07 6.58
P 0.63 0.63 0.63 0.63
O 0.31 0.31 0.31 0.31
M 1.54 1.78 2.25 2.72
L 1.67 1.90 2.37 2.87
NOTE:
Grooved ends to AWWA C606 for steel pipe.
Packing Gland with Adjustable Glands shall be accessible for
tightening stem seals without the disassembly of the valve or
operator parts U.S. Patented 6629.683.B2
