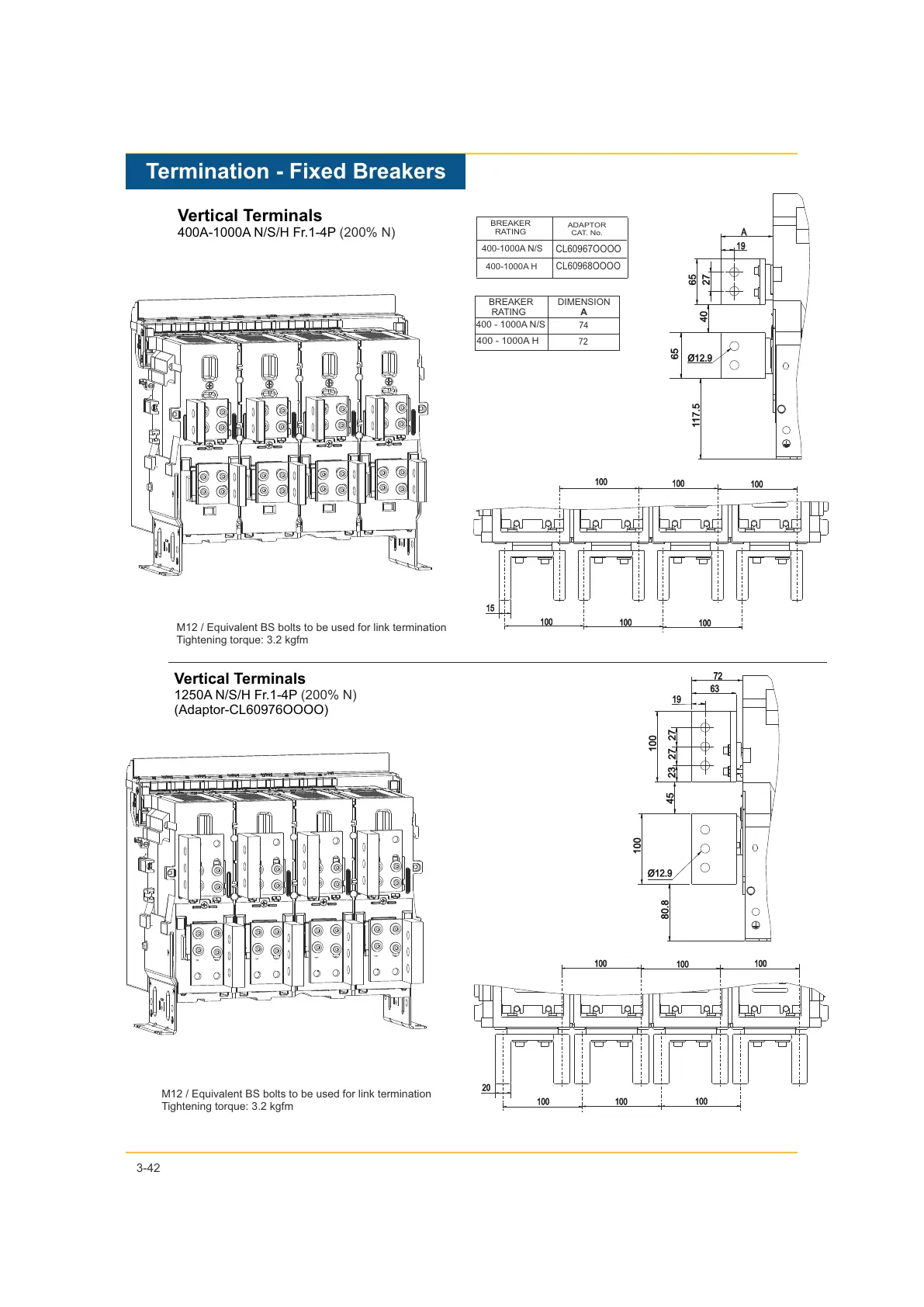

Termination - Fixed Breakers
3-42
Vertical Terminals
400A-1000A N/S/H Fr.1-4P (200% N)
Vertical Terminals
1
250A N/S/H Fr.1-4P
(200% N)
(Adaptor-CL60976OOOO)
A
Ø12.9
65
65
40
117.5
27
19
100
100
100
100
100
100
20
M12 / Equivalent BS bolts to be used for link termination
Tightening torque: 3.2 kgfm
M12 / Equivalent BS bolts to be used for link termination
Tightening torque: 3.2 kgfm
100
100
100
100
100
100
15
2727
23
100
19
63
72
45
80.8
Ø12.9
100
BREAKER
RATING
ADAPTOR
CAT. No.
400-1000A N/S
400-1000A H
CL60967OOOO
CL60968OOOO
400 - 1000A N/S
400 - 1000A H
74
72
BREAKER
RATING
DIMENSION
A
