3-43

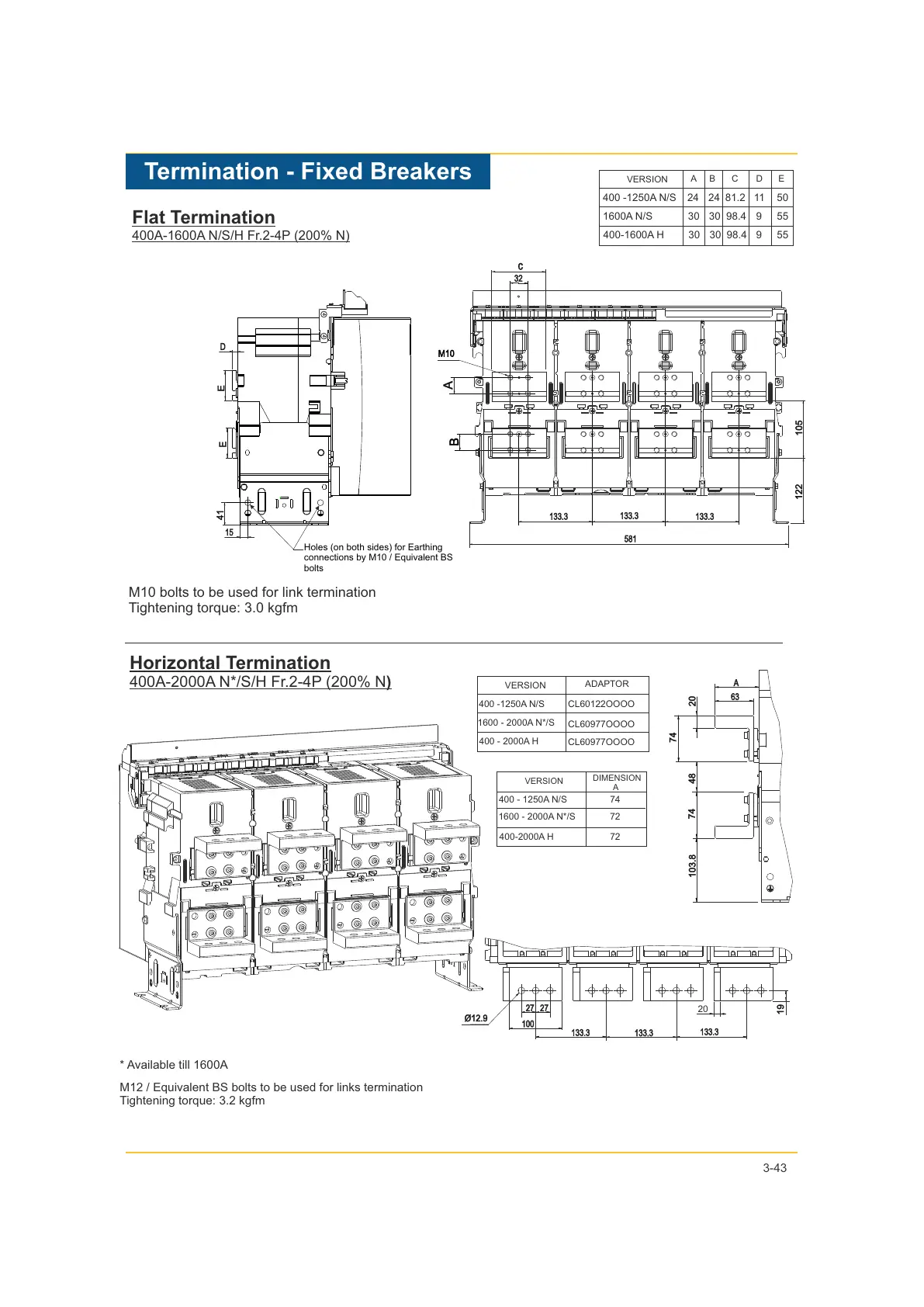

Termination - Fixed Breakers
M12 / Equivalent BS bolts to be used for links termi
nation
Tightening torque: 3.2 kgfm
* Available till 1600A
Flat Termination
400A-1600A N/S/H Fr.2-4P (200% N)
Horizontal Termination
400A-2000A N*/S/H Fr.2-4P (200% N)
D
E
E
41
15
Holes (on both sides) for Earthing
connections by M10 / Equivalent BS
bolts
32
c
A
122
105
133.3
133.3
133.3
B
581
M10
27
100
19
Ø12.9
27
133.3
133.3
133.3
20
63
20
A
48
103.8
74
74
M10 bolts to be used for link termination
Tightening torque: 3.0 kgfm
VERSION
VERSION
ADAPTOR
DIMENSION
A
400 -1250A N/S
400 - 1250A N/S
1600 - 2000A N*/S
1600 - 2000A N*/S
CL60977OOOO
72
CL60977OOOO
72
CL60122OOOO
74
400 - 2000A H
400-2000A H
VERSION
A
B
C
D E
400 -1250A N/S
2424
81.2
11
50
1600A N/S
400-1600A H
303098.49
9
55
55
303098.4
