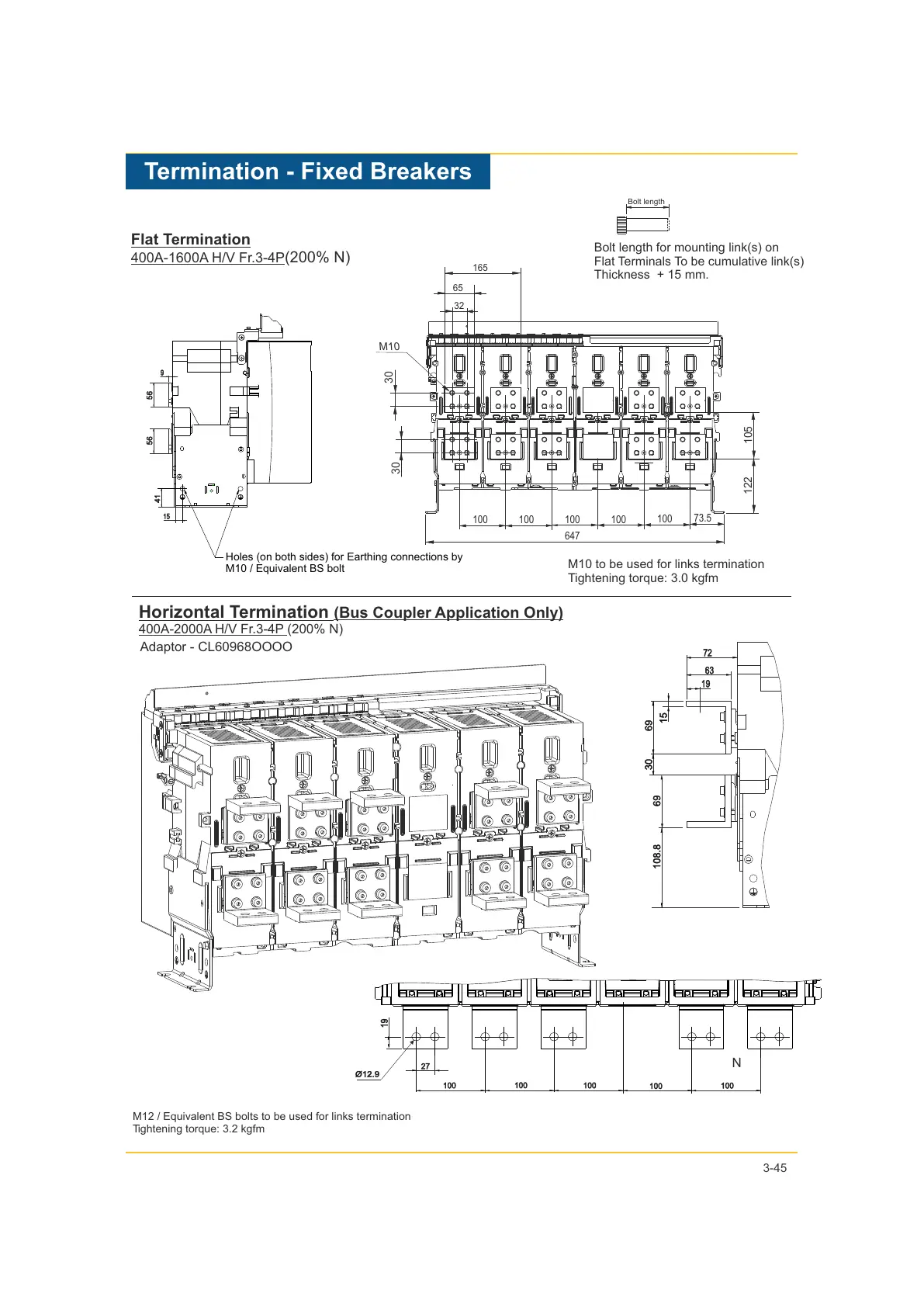

Termination - Fixed Breakers
3-45
M12 / Equivalent BS bolts to be used for links termi
nation
T
ightening torque: 3.2 kgfm
Flat Termination
400A-1600A H/V Fr.3-4P(200% N)
Horizontal Termination (Bus Coupler Application Only)
400A-2000A H/V Fr.3-4P (200% N)
M10 to be used for links termination
Tightening torque: 3.0 kgfm
Bolt length for mounting link(s) on
Flat Terminals To be cumulative link(s)
Thickness + 15 mm.
Bolt length
27
100
100
100
100
100
19
Ø12.9
Holes (on both sides) for Earthing connections by
M10 / Equivalent BS bolt
9
41
15
56
56
19
63
72
30
108.8
69
15
69
Adaptor - CL60968OOOO
647
165
65
M
10
32
30
30
100
100
100
100
100
73.5
105
122
N
