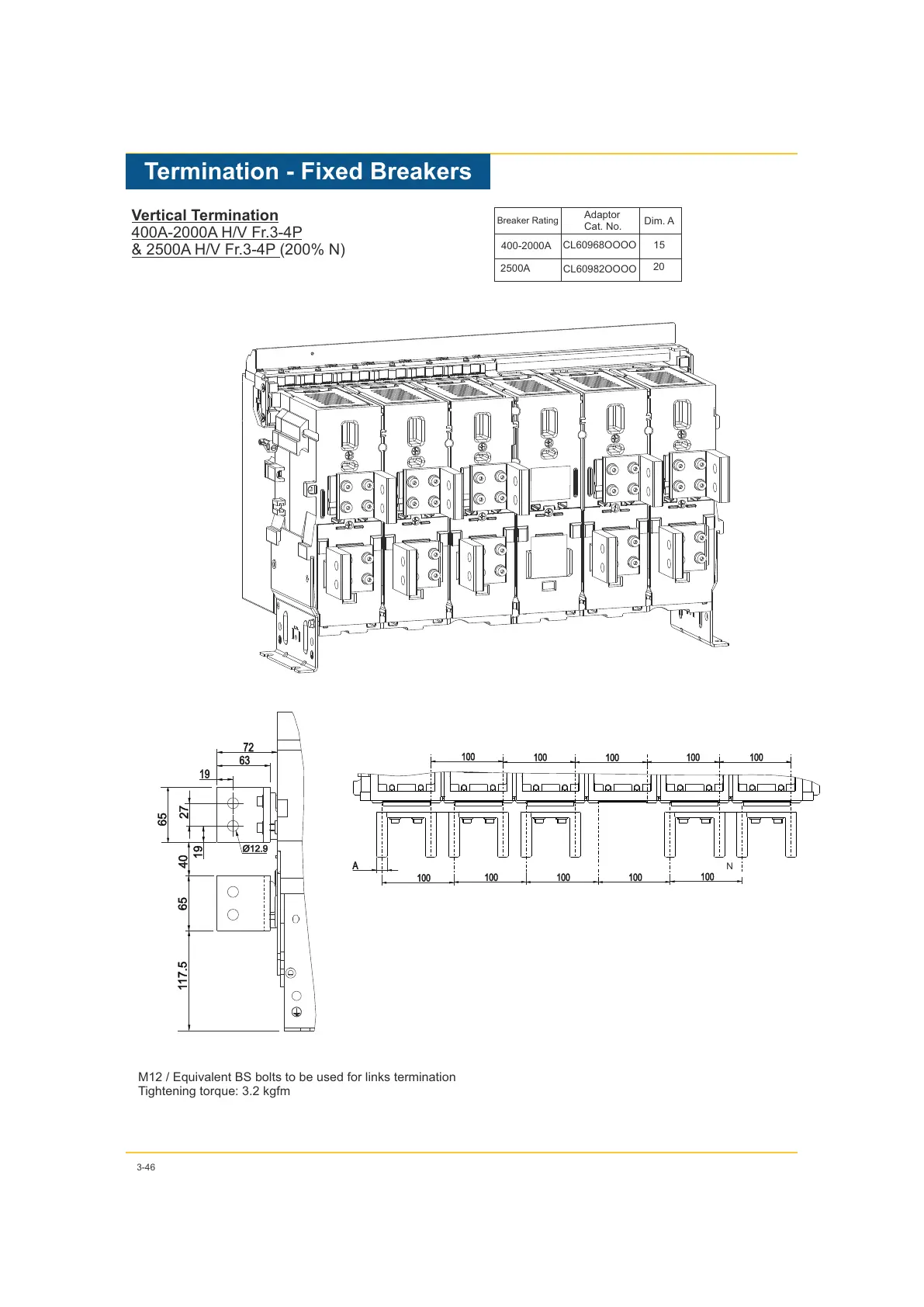

Termination - Fixed Breakers
3-46
Vertical Termination
4
00A-2000A H/V Fr.3-4P
& 2500A H/V Fr.3-4P (200% N)
65
72
63
40
117.5
27
19
65
19
Breaker Rating
Adaptor
Cat. No.
Dim. A
CL60968OOOO
400-2000A
15
CL60982OOOO
2500A
20
M12 / Equivalent BS bolts to be used for links termination
Tightening torque: 3.2 kgfm
B
SEE DETAIL A
A
C
A
A
100
100
100100100
100
100100
100
100
A
N
Ø12.9
