ONE FLASH
AND A SHORT
PAUSE
THREE
FLASHES
TEN FLASHES
AND A SHORT
PAUSE
OK
KO
X
In case of incorrect code or not existing code, the alarm
system emits some fast blinking of the red led.
Example code Green led
First code Second code Third code
Incorrect code indication Red led
After 3/4 seconds pause the led starts with the first sequence of green flashes.

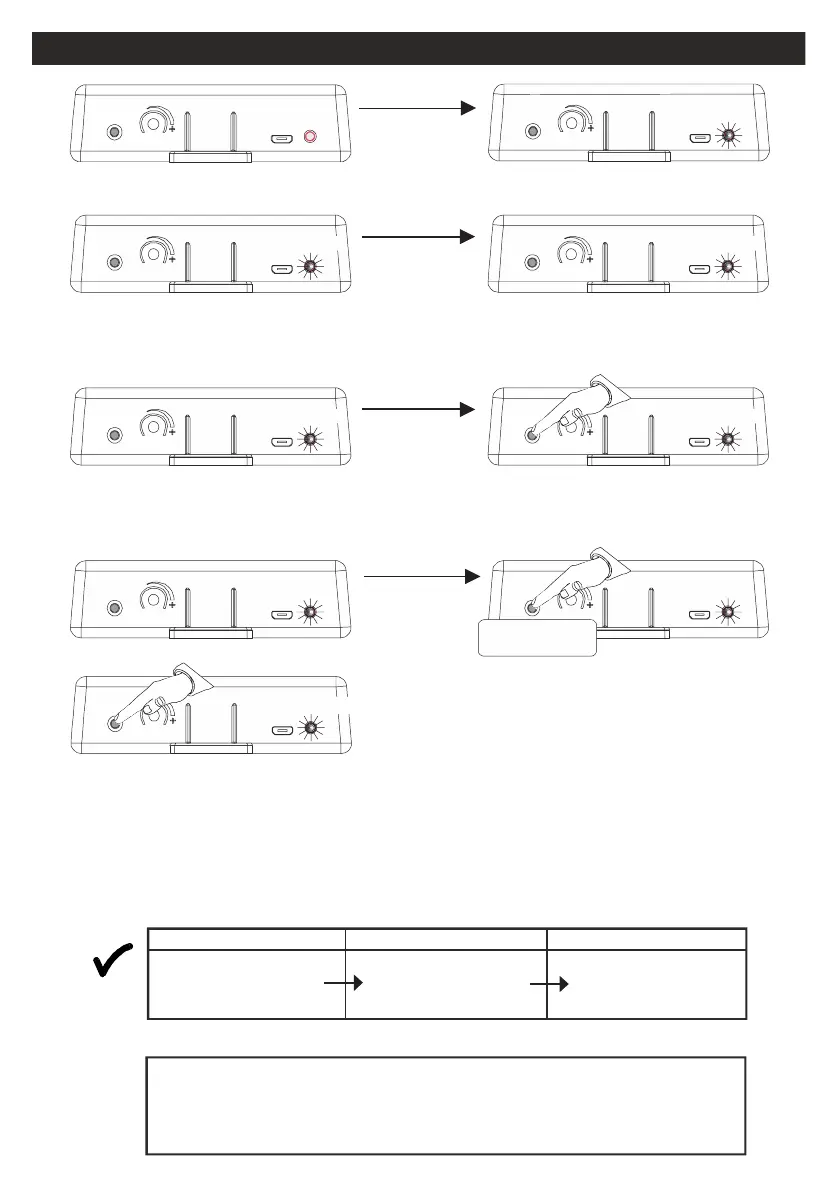

Push the button at the first LED flashing,corresponding to value ‘’1'’ push the button
until the led turns RED and release immediately
After 4 second of pause the led starts the second series of flashes begins.
After 4 second of pause the led starts the third series of flashes
After the last digit, the alarm system ‘’repeats’’ the entered code with the GREEN led
or in case of error (incorrect code or not existing code), the alarm system emits some
fast blinkings of RED led
At the tenth flash of the GREEN led corresponding to value 10, push the button
until the led turns RED and release immediately
CONNECTION MODE CAN AND LIN BUS
34- second
GREEN
FIRST
FLASH
TENTH
FLASH
RED
RED
GREEN
GREEN
THIRD
FLASH
At the third flash corresponding to value 3 push and keep hold the button until
the led turns RED and keep hold until the led turns ORANGE, release
GREEN RED
PRESS
FOR 5 SECOND
RELEASE THE BUTTON WHEN THE
LED BEACOME ORANGE
ORANGE
