LaserLiner DistanceMaster Vision - Page 16

16
1 6
2
3
4
5
7
b
a
c
d
e
f
g
h
i
k
j
m
l
n
o
p
q

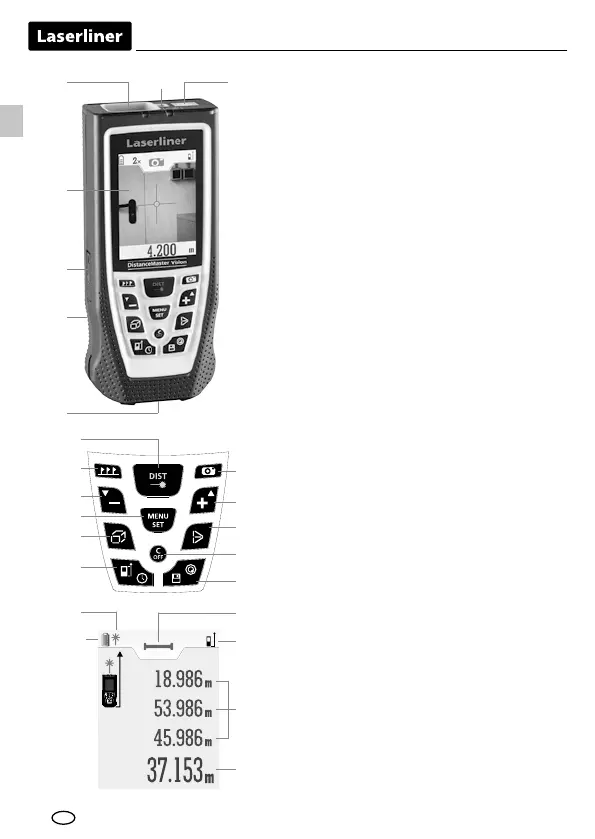

KEYPAD:
DISPLAY:
1 Laser reception eld
2 Display
3 Connection socket for USB charger
4 Battery compartment (backside)
5 Hinged pin
6 Laser outlet
7 Camera
a ON / laser on / measure /
min/max continuous measurement
b Stake out function
c Subtraction function /
Decrease value / view saved
measurements
d Settings menu / Conrm
e Length / area / volume / wall surface
function
f Timer function / Measurement point
(reference) front / thread / rear / pin
g Camera function
h Addition function /
Increase value / view saved
measurements
i Angle function / Pythagoras 1 + 2 + 3
j OFF / delete last measurement values
k Memory / Digital bubble level
l Laser active
m Battery symbol
n Set measuring function
o Measurement point (reference)
front / thread / rear / pin
p Intermediate values / min/max values
q Measurement values /
Measurement results
EN
