LaserLiner RollPilot S6 Quick Start Guide

08
3
+ +R R
5
4
+R
Measurement

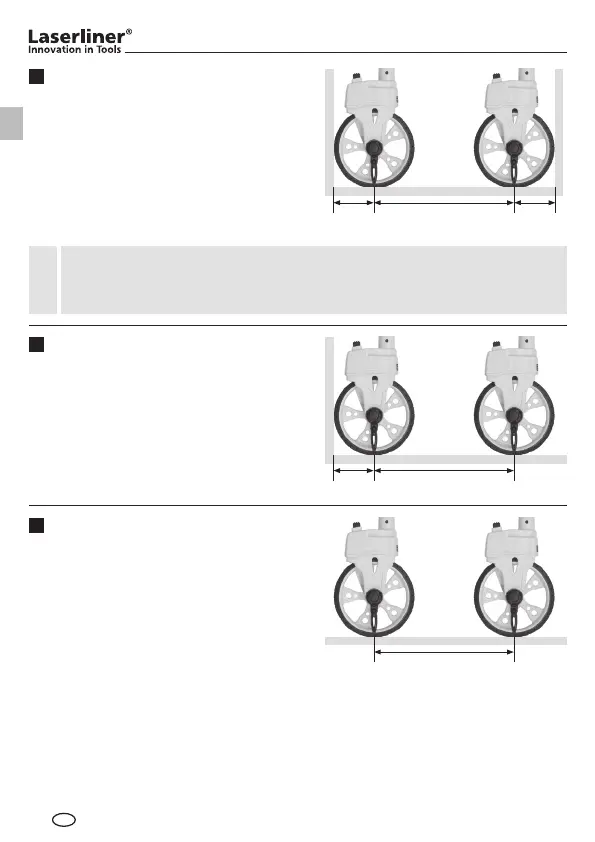

To measure from wall to spot
To measure from spot to spot
1. Position the pointer (8) on the  rst
marked spot.
2. Move the measuring wheel straight
to the other marked spot.
3. Read off measured value.
1. Position the device with the rear of
the measuring wheel against the
wall.
2. Move the measuring wheel straight
to the marked spot.
3. Read off the measured value and
add the radius of the wheel.
Measurement
Measurement
To achieve accurate measurement results, the guide bar must be held
at the same angle during the entire measurement. A vertical position
is recommended.
!
To measure from wall to wall
1. Position the device with the rear of
the measuring wheel against the
wall.
2. Move the measuring wheel straight
to the other wall.
3. Read off the measured value and
add the diameter of the wheel.
GB
Manual_RollPilot_S6_Rev0215.indd 8 10.02.15 12:07

LaserLiner RollPilot S6 Specifications

General

Brand	LaserLiner
Model	RollPilot S6
Category	Measuring Instruments
Language	English
