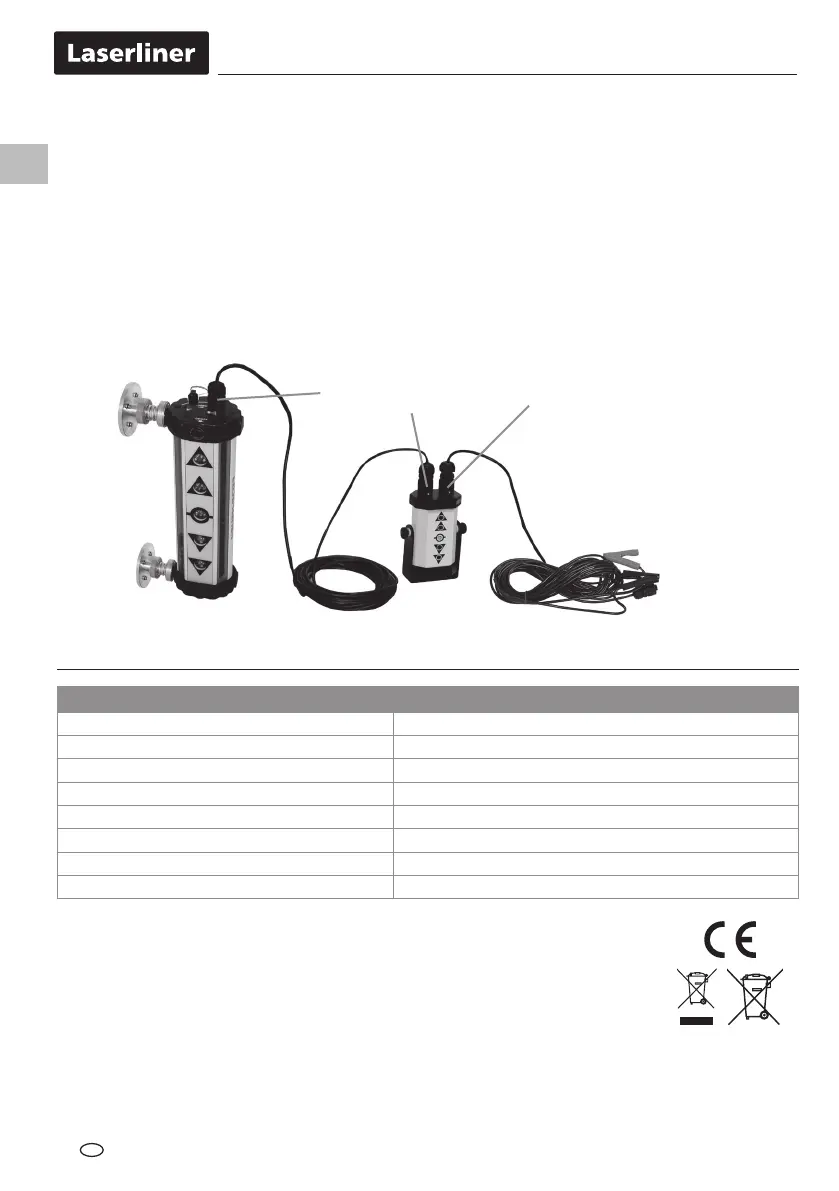

Operation of remote display
Power supply
• In the case of battery operation, power is supplied from the SensoPilot.
• For operation from the battery of the construction machine, connect the remote display (13) using
the 12/24V battery cable, ensuring that RED is connected to the positive battery pole (+) and BLACK
to earth (engine block). The SensoPilot is then also supplied with power via the connection cable -
see illustration below.
Use of the remote display
The remote display allows laser reception of the SensoPilot to be monitored when this cannot be seen
from the cab of the construction machine. In this case, connect the remote display (12) to the SensoPilot
(4) using the connection cable and install the remote display in the operator‘s cab.
Connection cable from
SensoPilot to remote display
12/24 V battery cable
4 12 13
Technical data
Technical revisions reserved. 18W16
Laser reception range 200 m
Precision HIGH
± 2 mm – ± 5 mm
Precision LOW
± 5 mm – ± 15 mm
Battery / Charger
7,2 V NiMh / 2500 mA
Battery operating time / Charging time
approx. 40 hours / approx. 15 hours
Working temperature
-20°C … 50°C
Dimensions
390 x 170 x 85 mm
Weight of SensoPilot / remote display
3,4 kg / 1,1 kg
10
EN
EU directives and disposal
This device complies with all necessary standards for the free movement of goods
within the EU.
This product is an electric device and must be collected separately for disposal
according to the European Directive on waste electrical and electronic equipment.
Further safety and supplementary notices at: http://laserliner.com/info?an=sesopipr
