C2 Installation Guide Ve rsion 1.018 19
1-3/4"
1-3/8"

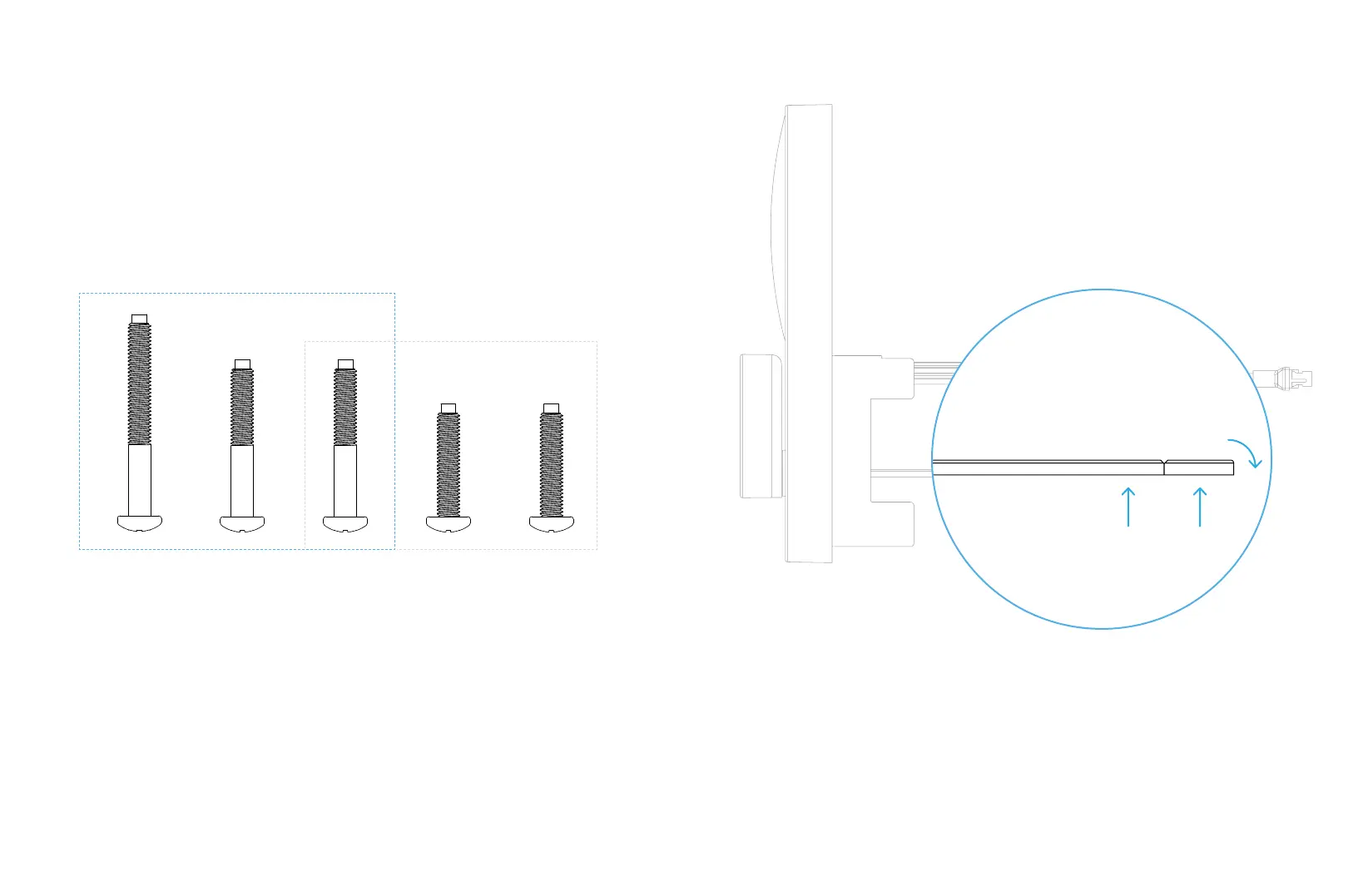

Choose the respective mounting screws according to your door
thickness.
Screws
Preparation
If you have a 1-3/8” thick door, break the tailpiece to shorten it by
grabbing with pliers on both sides of the notch and snapping o
the end.
Pliers Pliers
Snap
