Hub Installation Guide Ve rsion 1.024 25

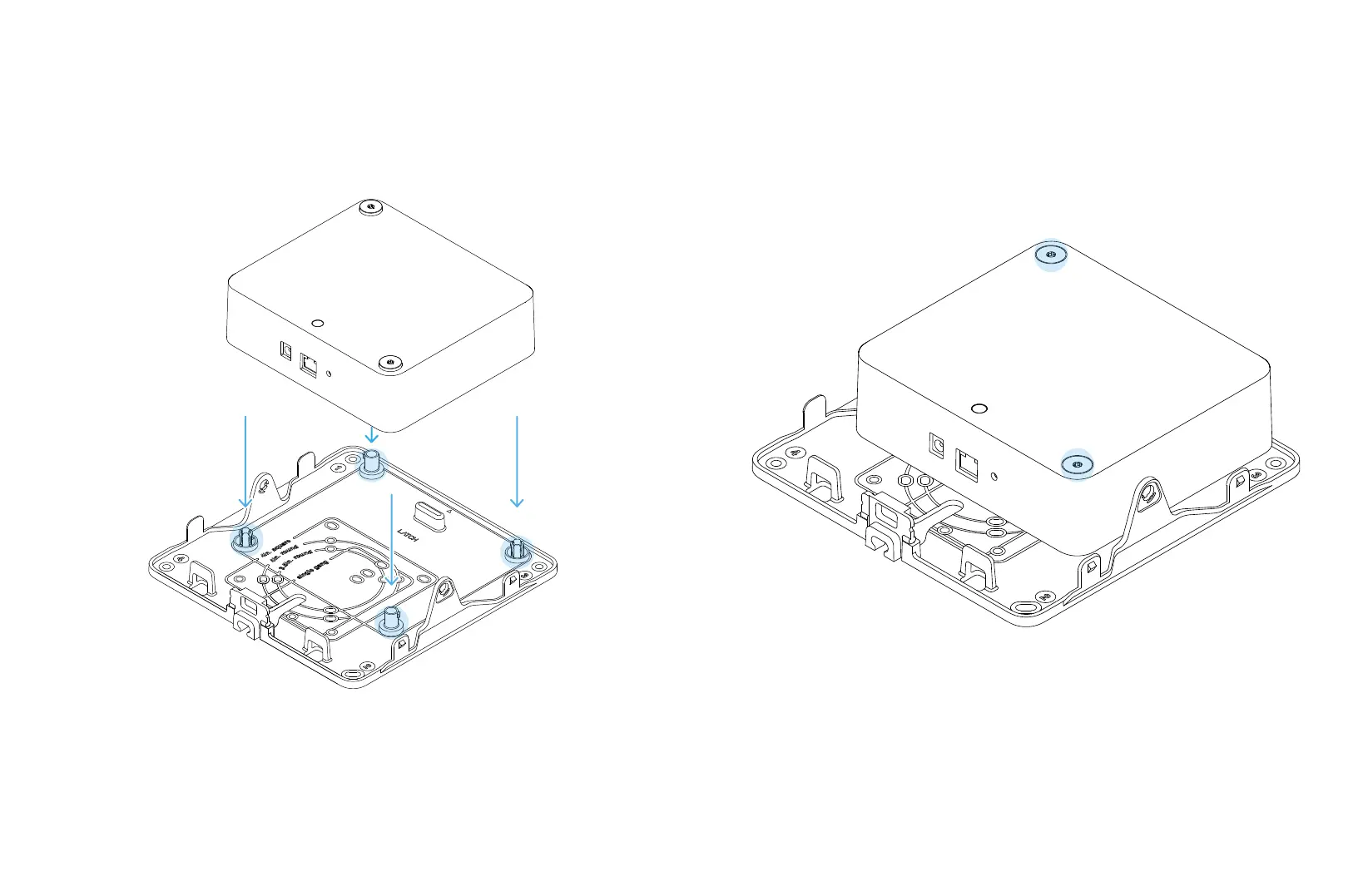

Attach Hub to Mounting Plate by aligning mating features. Rotate Torx screws in Hub clockwise to lock.
3.
