Lauda Puridest PD 2 D - PD 4 D;8 D 220 V;3~ Connection Example

0
9
/2020
Puridest Bi
Distillation Apparatus
23
/
32

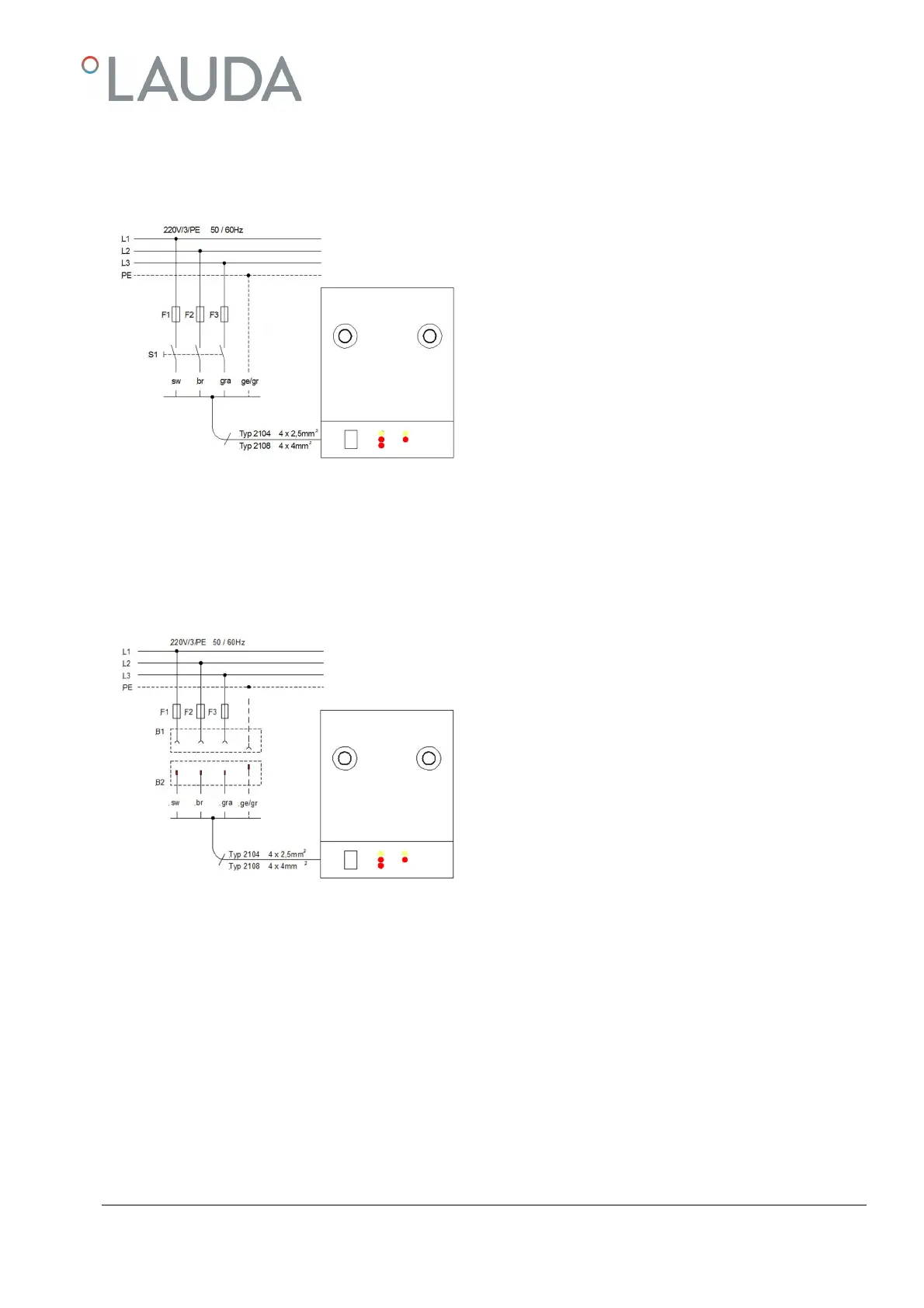

14.1.2 PD 4 D and PD 8 D for 220 V / 3 ~ at Mains supply 230 V / 3 ~ / PE 50 / 60 Hz
(see nameplate)
PD 4 D and PD 8 D
Mains connection through on-site switch S4, all-pole separa-
tion from the mains possible.
14.1.3 PD 4 D and PD 8 D for 220 V / 3 ~ at Mains supply 230 V / 3 ~ / PE 50 / 60 Hz
(see nameplate)
PD 4 D and PD 8 D
Mains connection through CEE plug according to IEC
standard 60309-2, all-pole separation from the mains pos-
sible.
