Lauda Puridest PD 4 D - PD 2 D 230 V Mains Connection Example

22 / 32 Puridest Bi Distillation Apparatus 09/2020
Connection to the mains supply (examples) 14.1
Components
B1 Shock-proof socket, on-site
B2 CEE plug, not assembled, according to IEC standard 60309-2
F1 Mains fuse (on-site, by customers)
F2 Mains fuse (on-site, by customers)
F3 Mains fuse (on-site, by customers)
S1 Main switch (on-site, by customers)

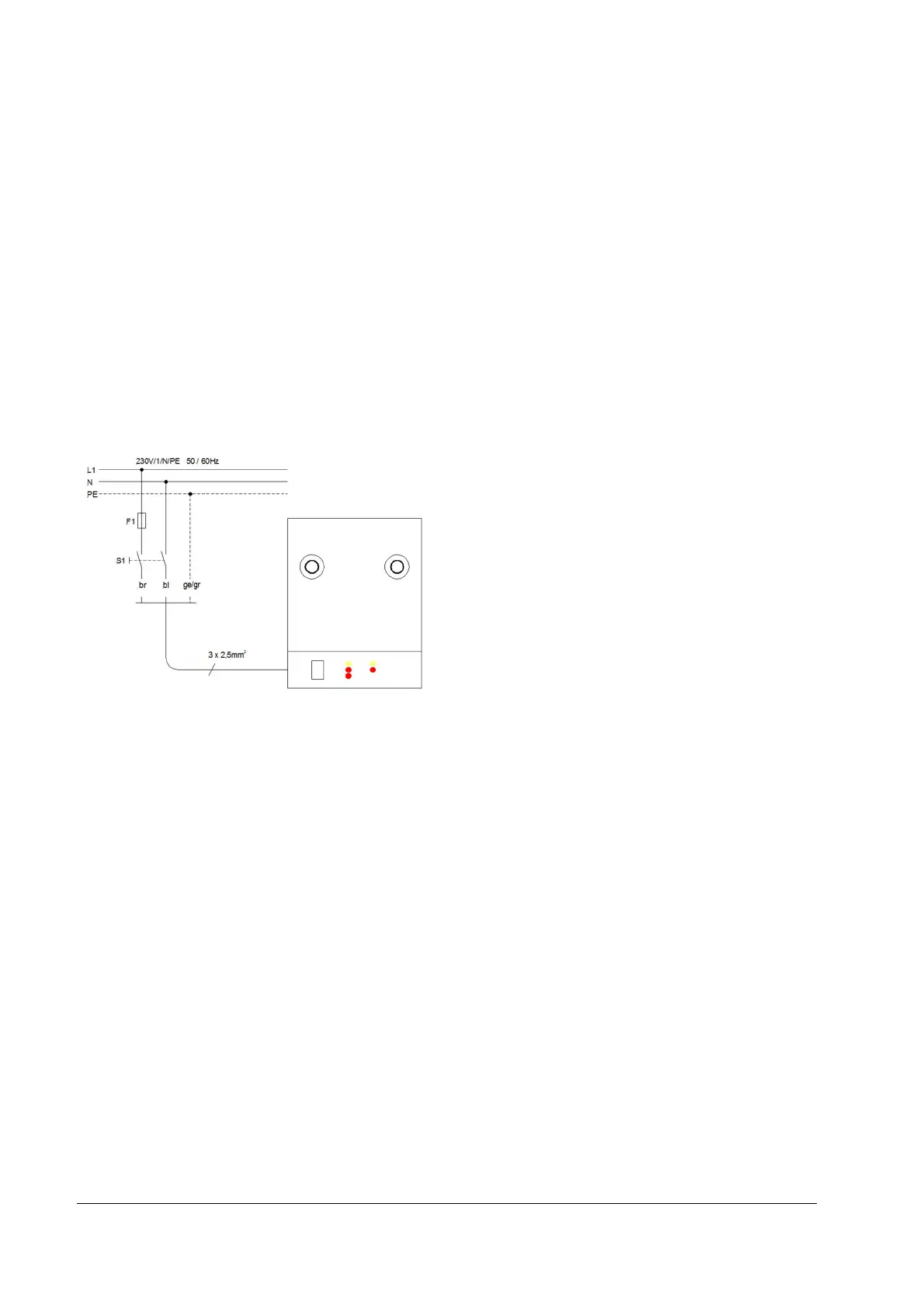

14.1.1 PD 2 D for 230 V
PD 2 D
Mains connection through on-site switch S4, all-pole separa-
tion from the mains possible.
