Lawn-Boy 17739 - Product Overview

g027543
1
2
3

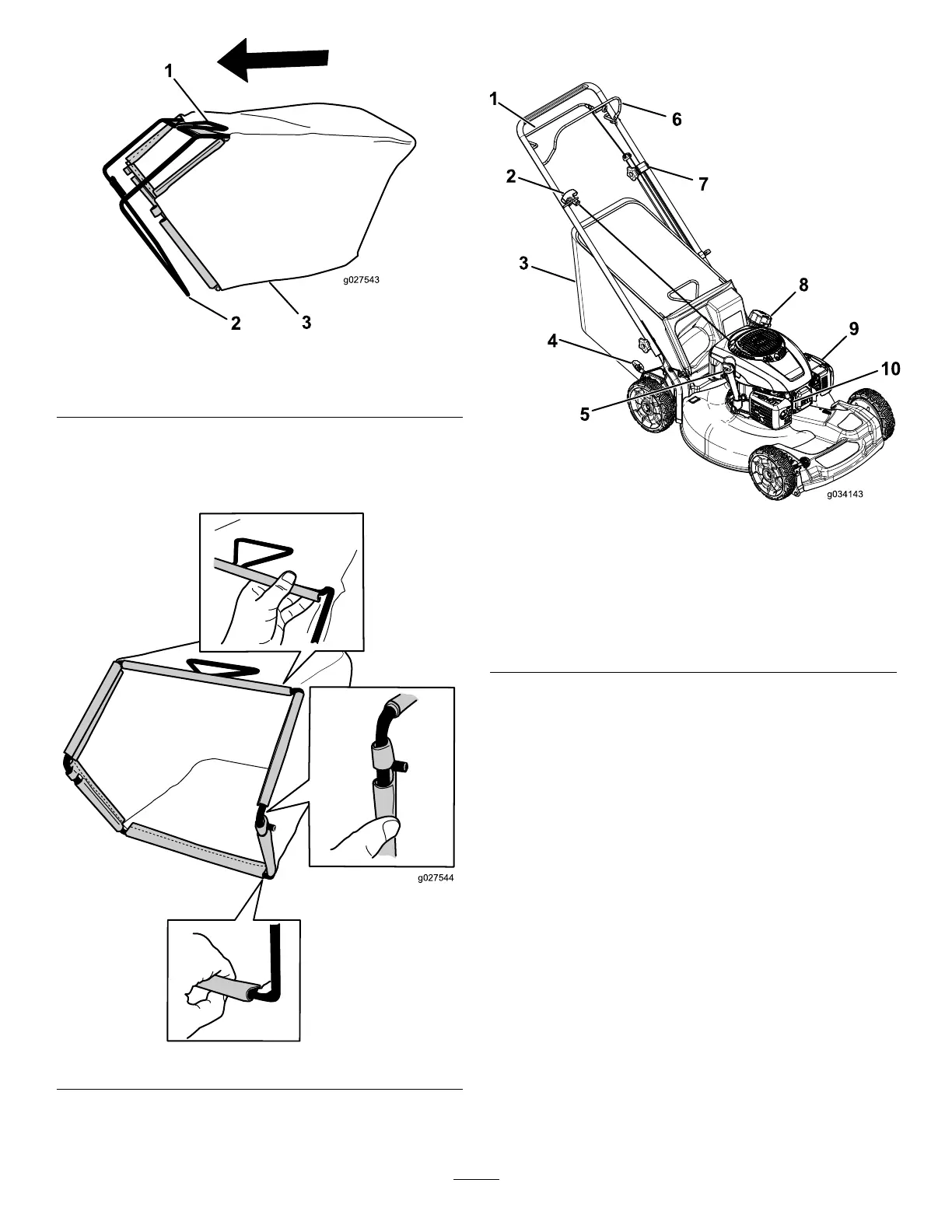

Figure6
1.Handle
3.Grassbag
2.Frame
Note:Donotslipthebagoverthehandle(Figure6).
2.Hookthebottomchannelofthebagontothebottom
oftheframe(Figure7).
g027544
Figure7
3.Hookthetopandsidechannelsofthebagontothetop
andsidesoftheframe,respectively(Figure7).
ProductOverview
Figure8
1.Self-propel-drivebar
6.Blade-controlbar
2.Recoil-starthandle
7.Self-propel-drive
adjustmentknob
3.Grassbag
8.Fuel-tankcap
4.Cutting-heightlever(2)9.Airlter
5.Oilll/Dipstick10.Sparkplug
