ASSEMBLY
INSTALLING / REMOVING THE BATTERY PACK
If any parts are broken or missing, do not attempt to attach the battery pack to the mower or operate the
mower until the broken or missing parts are replaced. Failure to do so could result in serious injury. Do not
connect the battery and/or the safety key before the product is completely assembled.
To install battery pack:
1. Make sure battery is fully charged.
2. Open the plastic battery compartment cover on top of the mower deck.
3. Align the raised ribs on the mower with the grooves in the battery pack, and then insert the battery pack
into the compartment (Fig. 10).
4. Push the battery pack until you hear a “click”.
5. Close the battery compartment cover.
6. Your product is now ready to be used.
NOTE: Make sure that the battery pack rmly snaps into place and is secured to the mower before starting
operation.
To remove battery pack:
1. Stop the lawn mower. Lift the battery compartment cover and remove the safety key.
2. Press the release button on the battery pack, grasp the battery pack rmly and pull out of the battery
compartment cover (Fig. 11).
3. Close the battery compartment cover.
WARNING

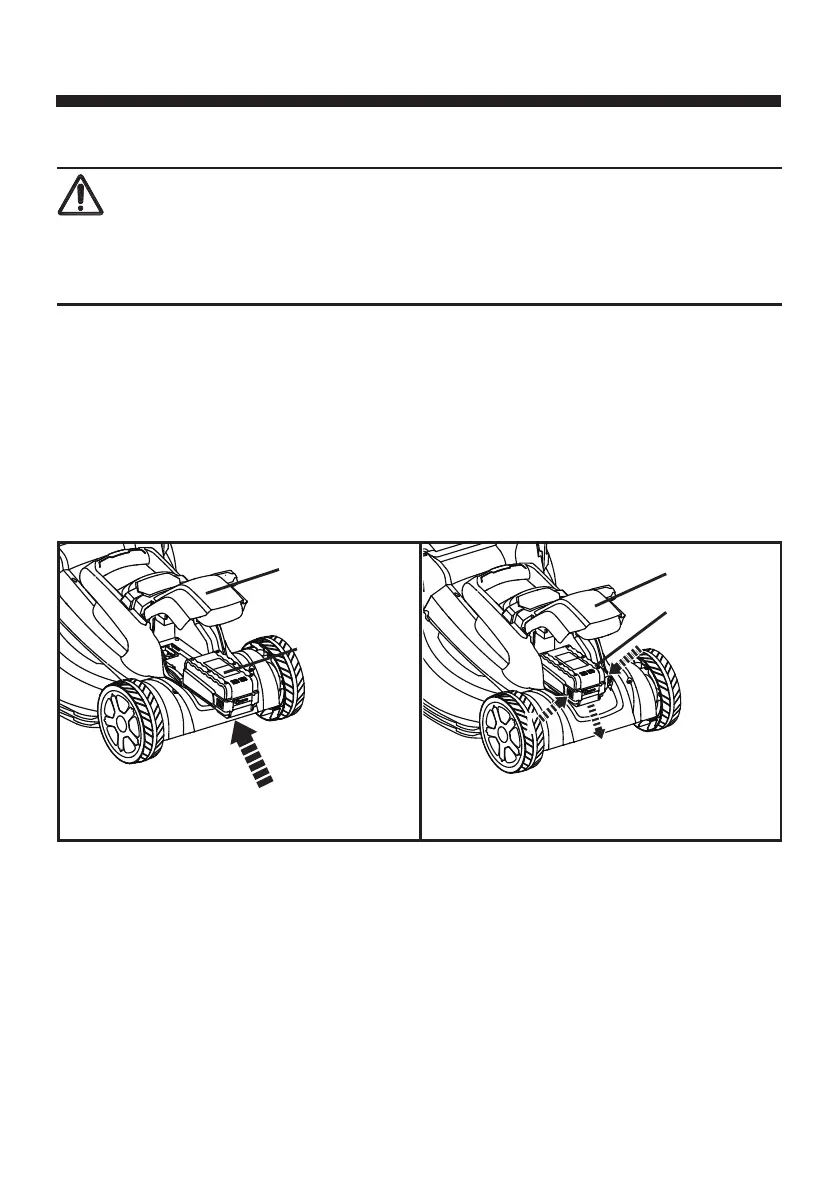

Fig. 10
Fig. 11
Battery
Compartment
Cover
Battery Pack
Battery
Compartment
Cover
Battery Pack
