lci1.com 574-537-8900 Rev: 02.07.20
Thin Shade
Installation and Owner’s Manual
(For Aftermarket Applications)
CCD-0001507
Letter Part # Description Qty
A 786037 Thin Shade 11 7/8” x 21 1/2” 1
Safety Information
Resources Required
• Cordless or electric drill or screw gun
• Phillips screwdriver
• Appropriate drive bits
• Tape measure

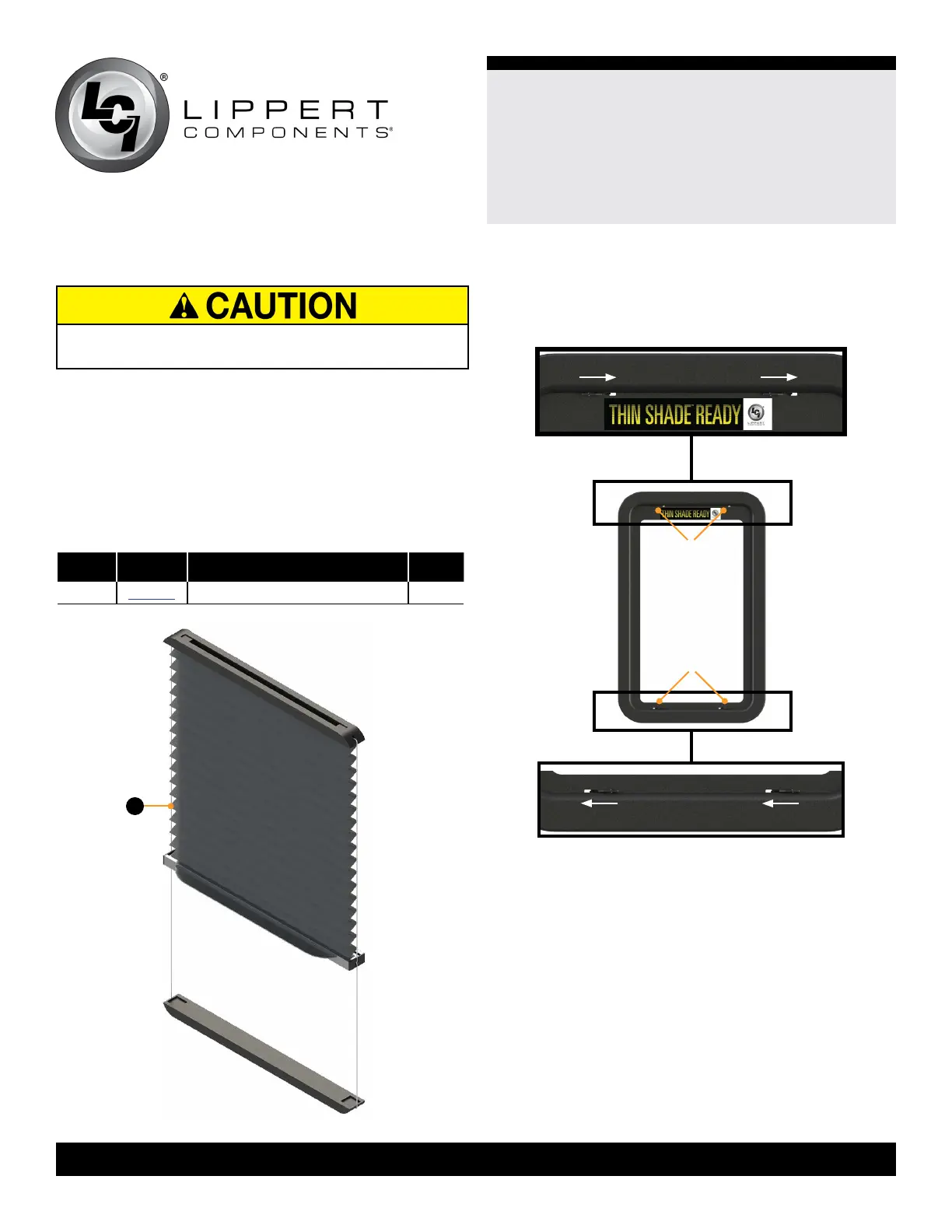

Parts List
A
Installation-Snap Frame
1. Unlatch the small levers at the top of the window frame
in a left-to-right direction (Fig.1).
2. Unlatch the levers at the bottom of the frame in a right-to
left direction (Fig.1).
3. If equipped, remove the existing shade from the frame
and discard.
4. Holding the top shade sill at an approximate 45 degree
angle, insert one end into the corner between the inner
frame and glass (Fig.2A).
5. Repeat this action on the opposite end of the top sill.
6. Press both ends up and latch in place moving levers in a
right-to-left direction.
Fig.1
levers
levers
MOVING PARTS CAN PINCH, CRUSH OR CUT. KEEP
CLEAR AND USE CAUTION.
