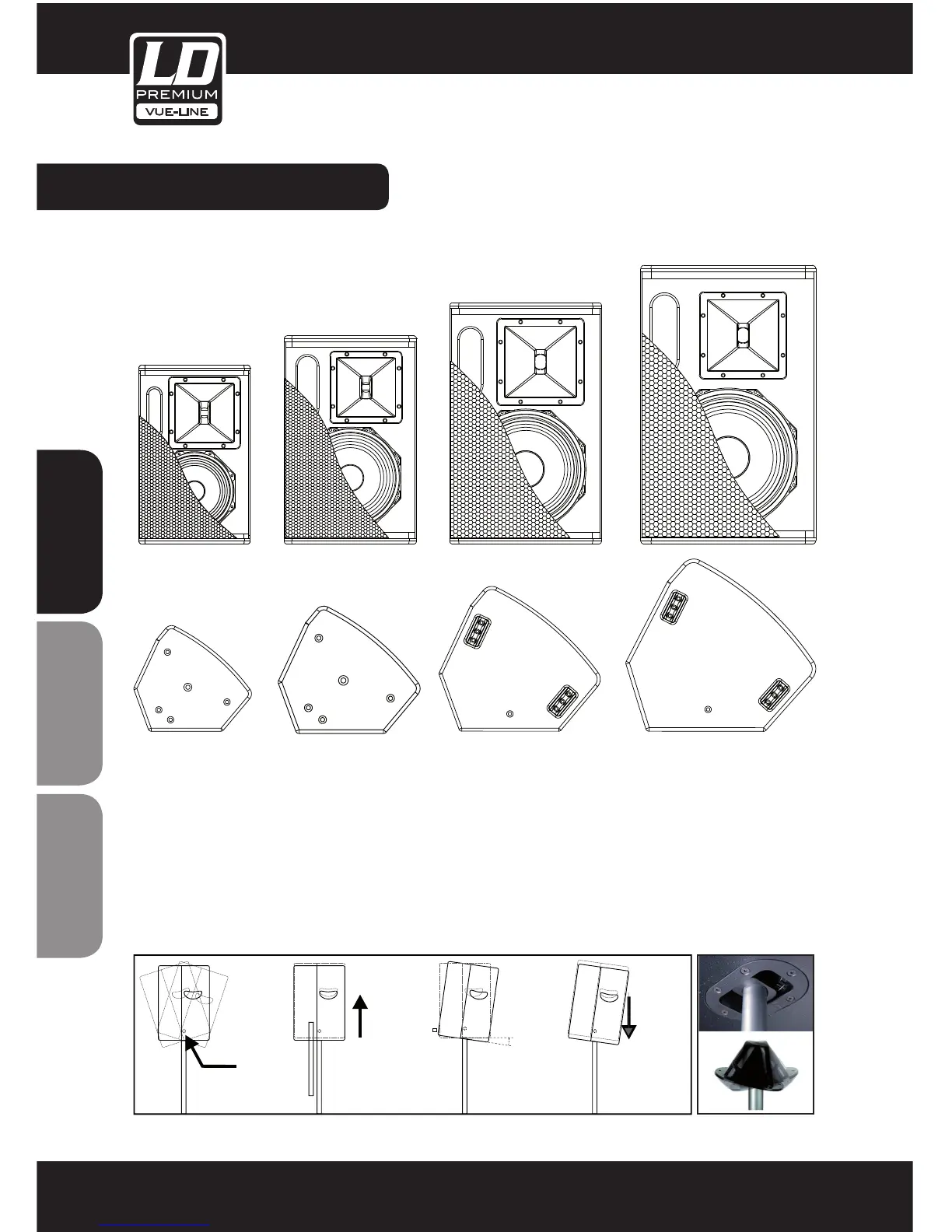

LD LDV8 - Front View

6
VIEWS /POSITIONS:
ENGLISHDEUTSCHFRANCAIS
SIDE VIEW MONITOR POSITIONED
Application notice regarding the SM707 adjustable speaker stand receptacle (LDV10(A)/12(A)/15(A))
The built-in, patented SM707 adjustable speaker top hat offers unparalleled possibilities for adjustment
+/-12° in 4° increments. To do this, simply lift the cabinet slightly on the speaker stand, causing the set angle to
loosen, and lower the cabinet on the stand again to cause it to engage at the desired angle (see drawing).
Centre of rotation
+/- 12°
Turn the cabinet into
the required angle.
Lower the cabinet.
+/- 12°
Lift cabinet
Attention! Please hold
the cabinet rmly
FRONT VIEW
LDV8(A)
LDV10(A)
LDV12(A)
LDV15(A)
