LD STINGER G3 - Parts Description and Installation

14
2
3
9
9
5
4
9
6
1
7
8
8
7
7

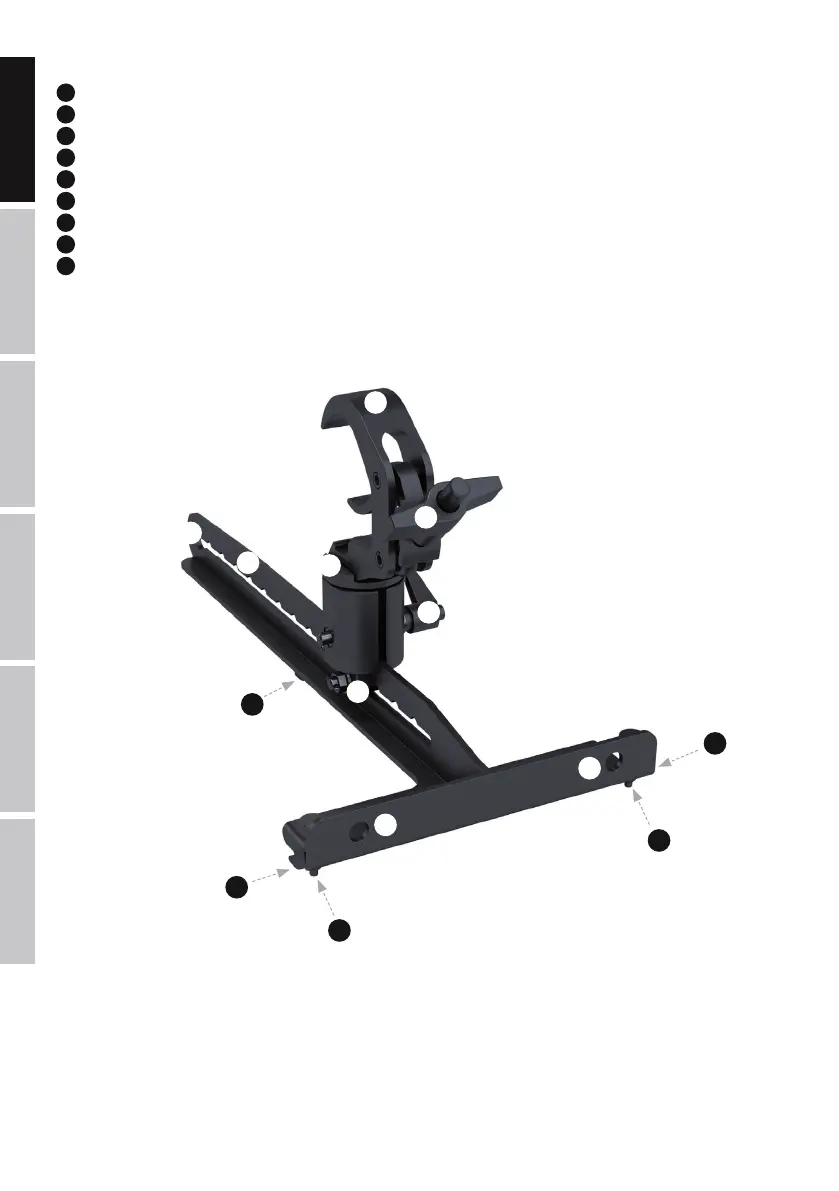

PARTS DESCRIPTION AND INSTALLATION
1
Traverse clamp for mounting on a horizontal traverse.
2
Wing nut for clamping to a traverse.
3
T-screw to lock the horizontal and vertical axes
4
Mounting rail with slots to adjust the vertical dispersion of the speaker.
5
Retaining pin.
6
Rotation mechanism for adjusting the horizontal dispersion of the speaker.
7
Three steel hooks which insert into the retaining sockets on the top of the speaker.
8
Two spring-loaded locking pins to secure the connection.
9
Mounting holes for alternative installation of the speaker with chains.
Important: Before any assembly, check that all mounting bracket components are complete, undamaged and work correctly (split pins,
screws, bolts, nuts, locking pins, steel hooks, retaining sockets in speakers, etc.). Should any mounting bracket component be damaged,
missing or not function properly, the mounting bracket should not be used.
