LDARC TINY R7 - Flip Over After Crash Function; Setting Up Flip Over; Operation Guide for Flip Over; Product and Factory Codes

TINY R7 KIT
TINY 7X Main frame(2 PCS)
820 Motor(CW+CCW)
Q25G2H VTX+199C Camera
199C Camera
Q25G2H VTX
F3-B2 FC
F3-B2RX FC(S-FHSS+D16)
KIT.TINY R7
PART.TINY 7X MAIN FRAME(2 PCS)
MOTOR.820(CW+CCW)
VTX+CAM.Q25G2H+199C
CAM.199C
VTX.Q25G2H
FC.F3-B2
FC.F3-B2RX(S-FHSS+D16)
Name
TINY R7 PNP
Basic combo
TINY R7 PNP
Advanced combo
TINY R7 RTF
Factory Code
PNP.TINY R7 BASIC COMBO
(S-FHSS+D16/FM800/FS-RX2A/DSM2/NO RX)
PNP.TINY R7 ADVANCED COMBO
(S-FHSS+D16/FM800/FS-RX2A/DSM2/NO RX)
RTF.TINY R7
40
58
70
40
50
45
30
35

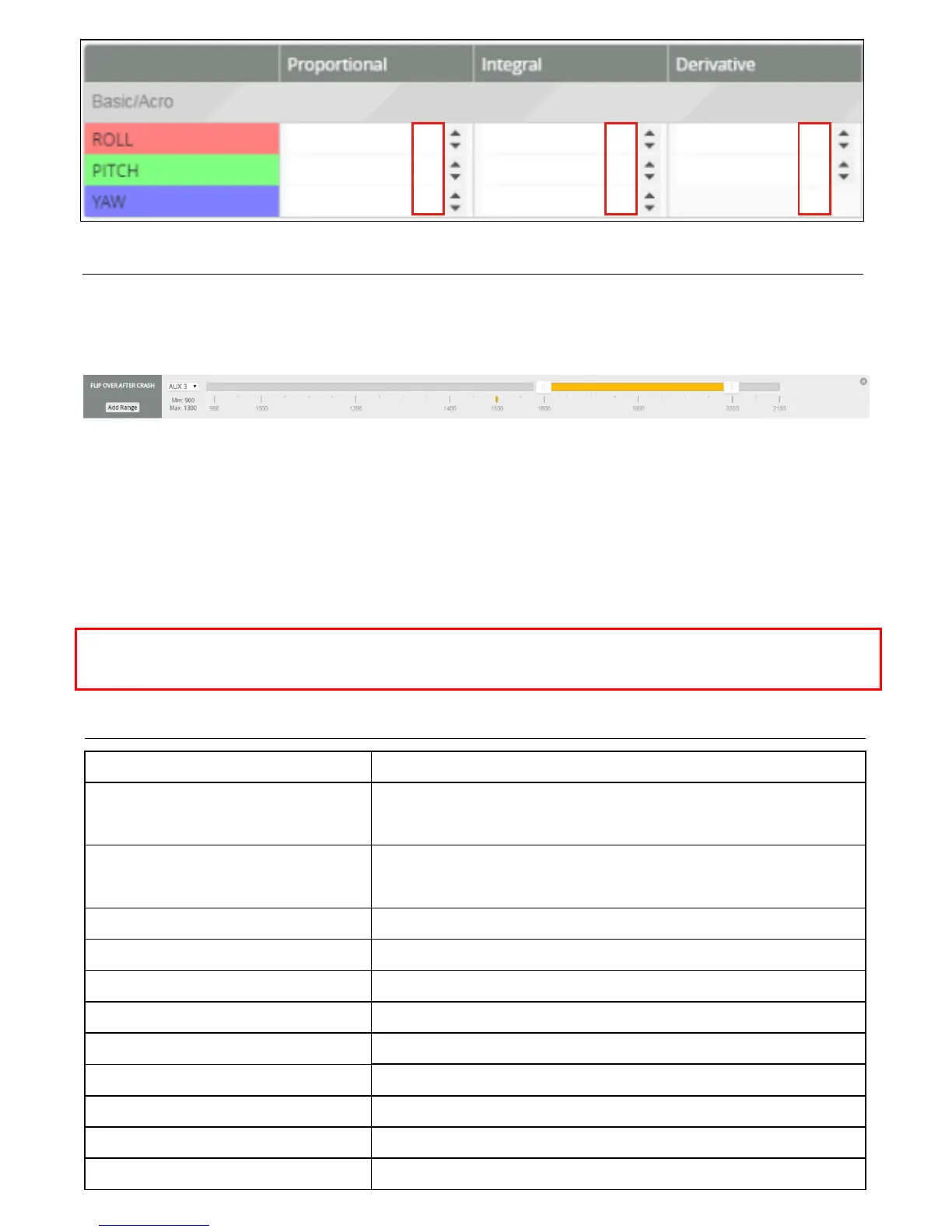

LDARC TINY R7 Instruction Manual 2018-03-05 9 Pages-Page 8
Product and Factory Code
FLIP OVER AFTER CRASH
Setting
Operation
1.Enable FLIP OVER AFTER CRASH mode
2.Setting transmitter 7CH switch is AUX3.
[STEP 1] multicopter DISARM (5CH AUX1=1200, THR need less than 1000)
[STEP 2] enable flip over function (7CH AUX3=1800)
[STEP 3] multicopter run flip over while ARM (5CH AUX1=1800), flip over can repeat
if turn DISARM (5CH AUX1=1200) then ARM (5CH AUX1=1800) again
[STEP 4] shut down flip over function (7CH AUX3=1200) the multicopter can fly.
TINY X8 radio FLIP OVER prog. mix firmware can support one-click automatic flip over
TINY X8 radio firmware download WWW.KINGKONG-RC.COM/TX/X8
FLIP OVER AFTER CRASH AUX3
