LDARC TINY R7 - VTX (Video Transmitter); Frequency Table; FC Firmware and Motor Protocol

FC

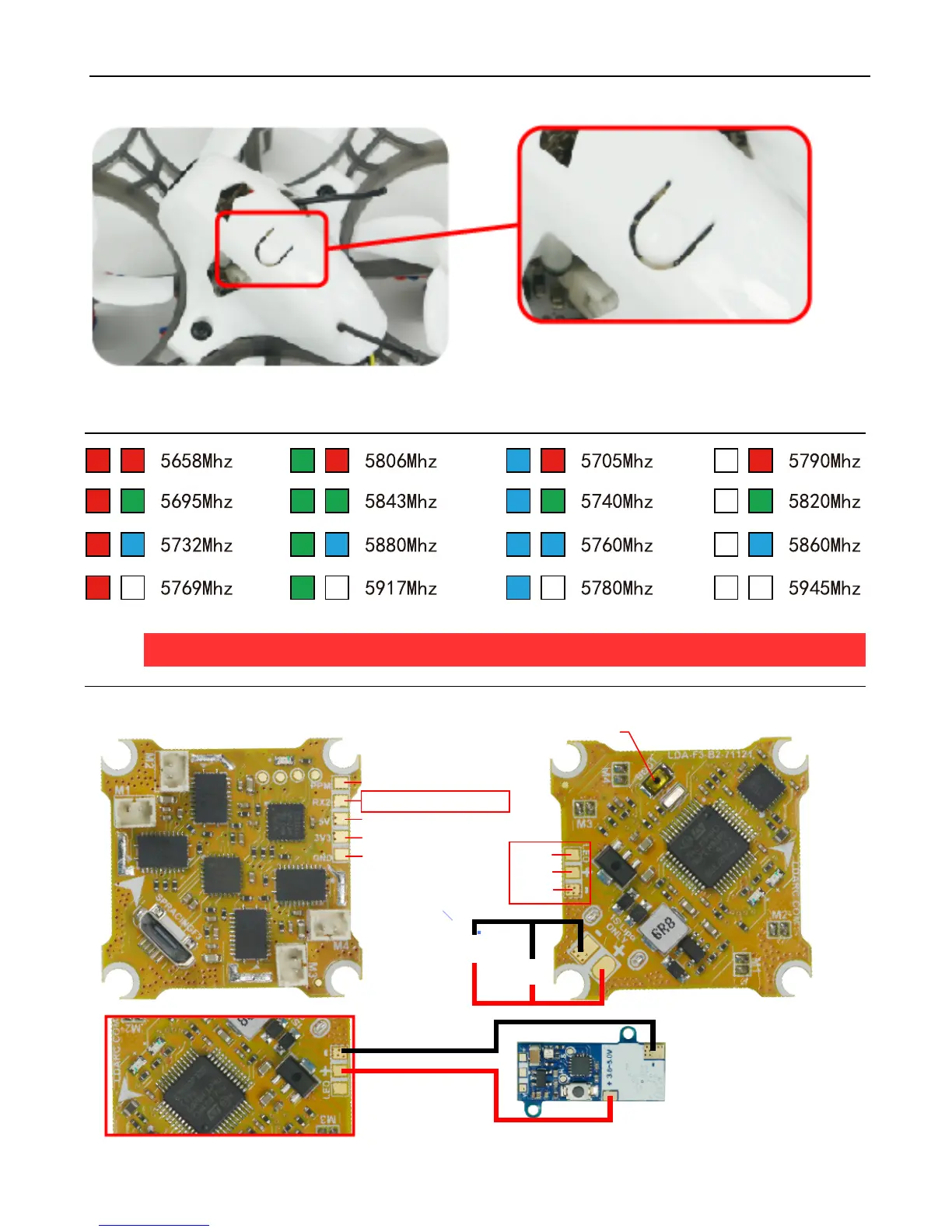

Frequency Table
Frequency button
F3-B2 FC
Firmware:SPRACINGF3,motor protocol must use DSHOT150.
LDARC TINY R7 Instruction Manual 2018-03-05 9 Pages-Page 5
Q25G2H (25mW 16CH, input voltage 3.6~5.0V)
VTX
PPM
S.BUS/DSM2(UART2)
5V
3.3V
GND
LED
5V
GND
BOOT
1S BATTERY
LED
- +
VTX
