LDARC TINY R7 - 1-WAY 4.2 V;4.35 V Charger; Transmitter Operation; Transmitter Controls and Indicators

Transmitter
Transmitter firmware：WWW.KINGKONG-RC.COM/TX/X8
A
B
C
D
E
F
J
K
LDARC TINY R7 Instruction Manual 2018-03-05 9 Pages-Page 4

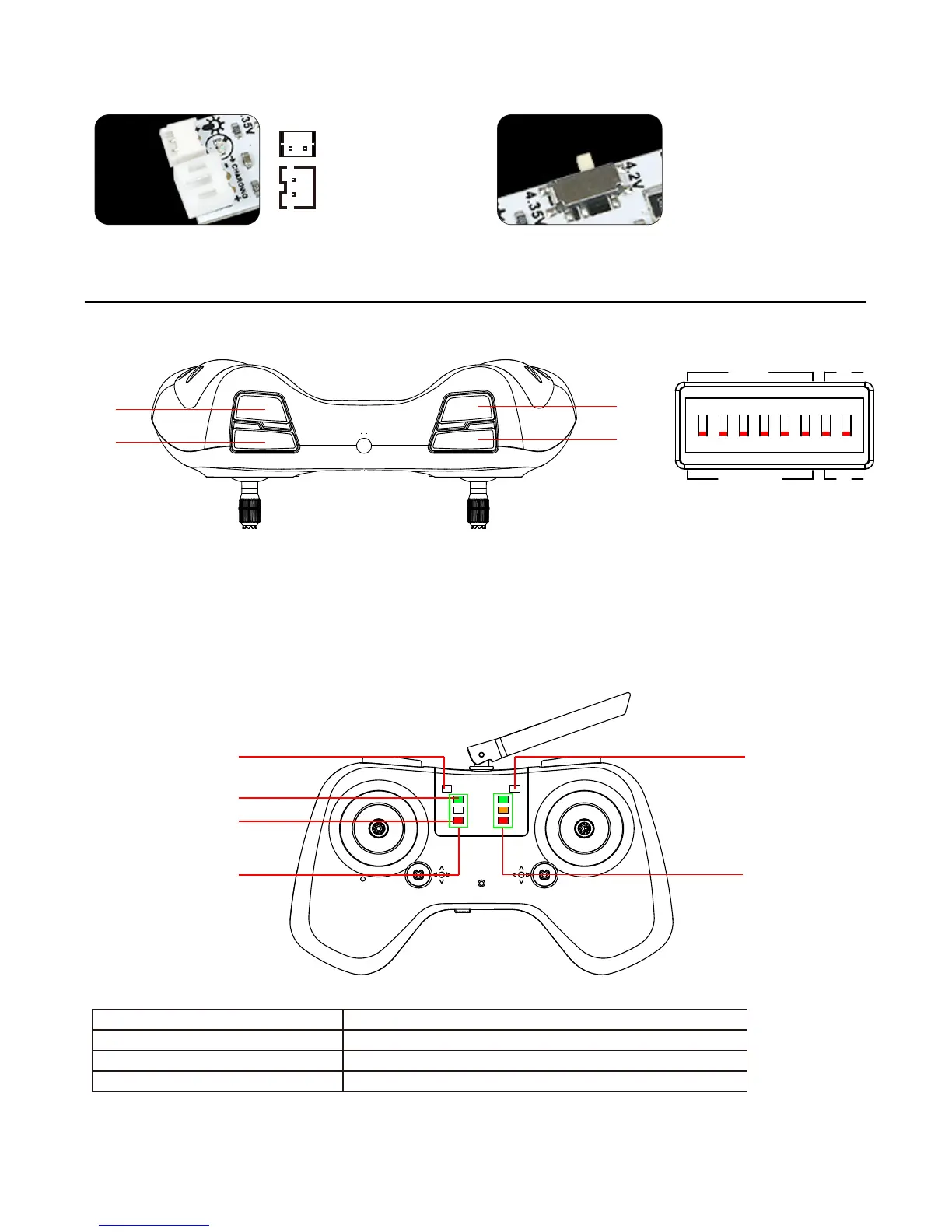

1-WAY 4.2V/4.35V Charger
Molex 1.25
PH 2.0
4.2V/4.35V Switchable
(Default 4.35V)
<E>：Battery power level LED：suggest charged battery when middle power
LED Battery status
keeps on High power (above 70%)
slow flash Middle power (30%~10%)
fast flash + buzzer Low power (less than 10%)
<F>：5 channel position switch indicator(green LED ARM,red LED DISARM).
<J>： RF indicator.
<K>：6 channel position switch indicator(fly mode setting, green,yellow,red LED all ANGLE mode default
).
<A>：DISARM
<B>：ARM(ready to fly)
<C>：Click this key run FLIP OVER after carsh.
<D>：Only ANGLE mode default, MANUAL and HORIZON mode need set youself in BetaFlight.
ARM(ready to fly)
DISARM
1 2 3 4 5 6 7 8
T A E R 5 6 7 8
NORM
L
REV H
