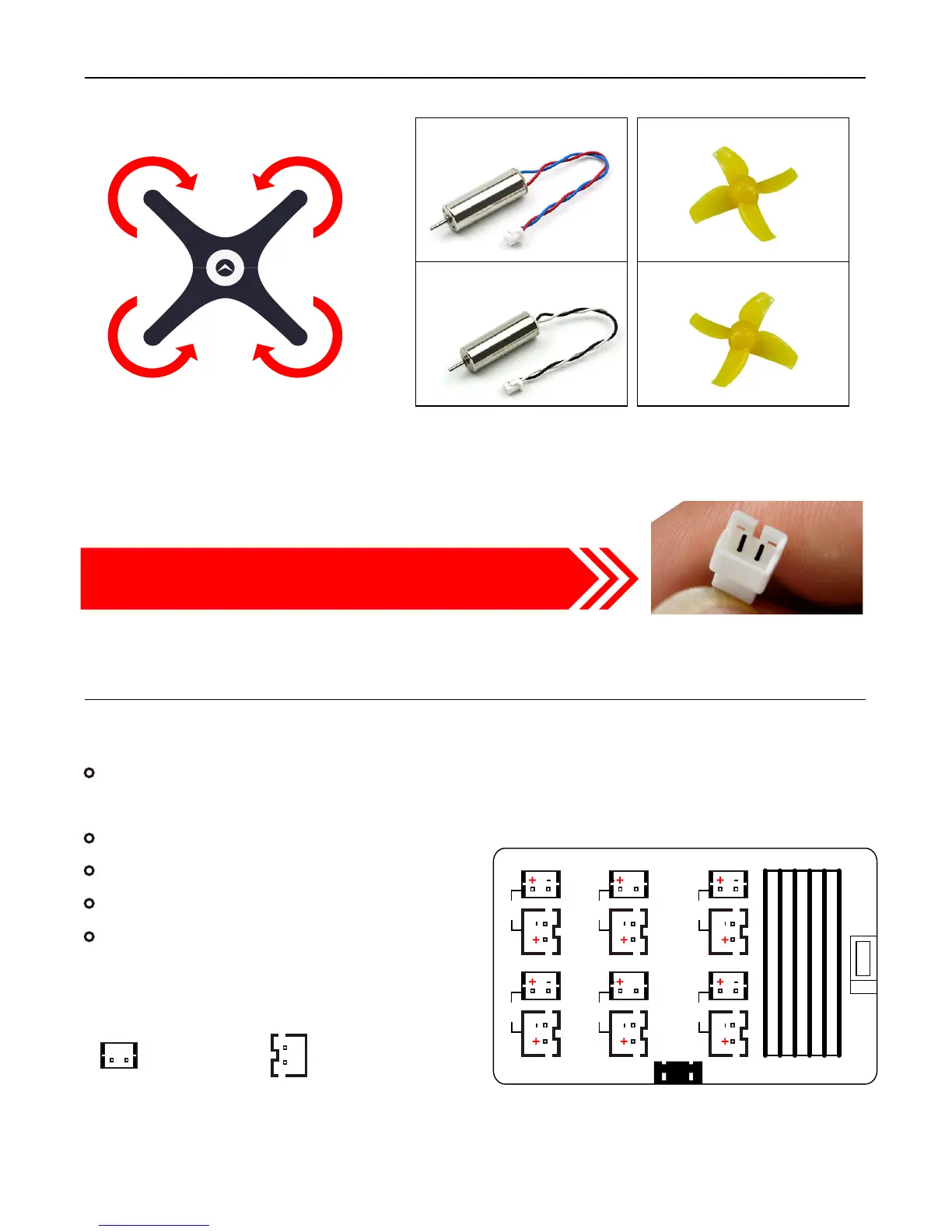

Motor
Charger
M4(CW)
Red&Blue
wire
M2(CCW)
Black&White
wire
M3(CCW)
Black&White
wire
M1(CW)
Red&Blue
wire
Note:Pay attention to the direction of motor and prop
6-WAY 4.2V/4.35V Charger
6-WAY 500mA 4.2V/4.35V Lipo charger
(Default 4.35V)
2~4S(7~18V) XT60 or USB power input
Power by XT60: 1 2 3 4 5 6 WAY
Power by USB: 4 5 6 WAY
LED ON : Charging
LED OFF: Charge finish
Molex 1.25 PH 2.0
XT60
123
456
Absolutely forbidden use 4.35V voltage charge 4.2V battery
Please replace the power plug after 100 flight or
power plug changed black.
Clockwise motor(CW) Clockwise Prop(CW)
Counterclockwise motor(CCW) Counterclockwise Prop(CCW)
