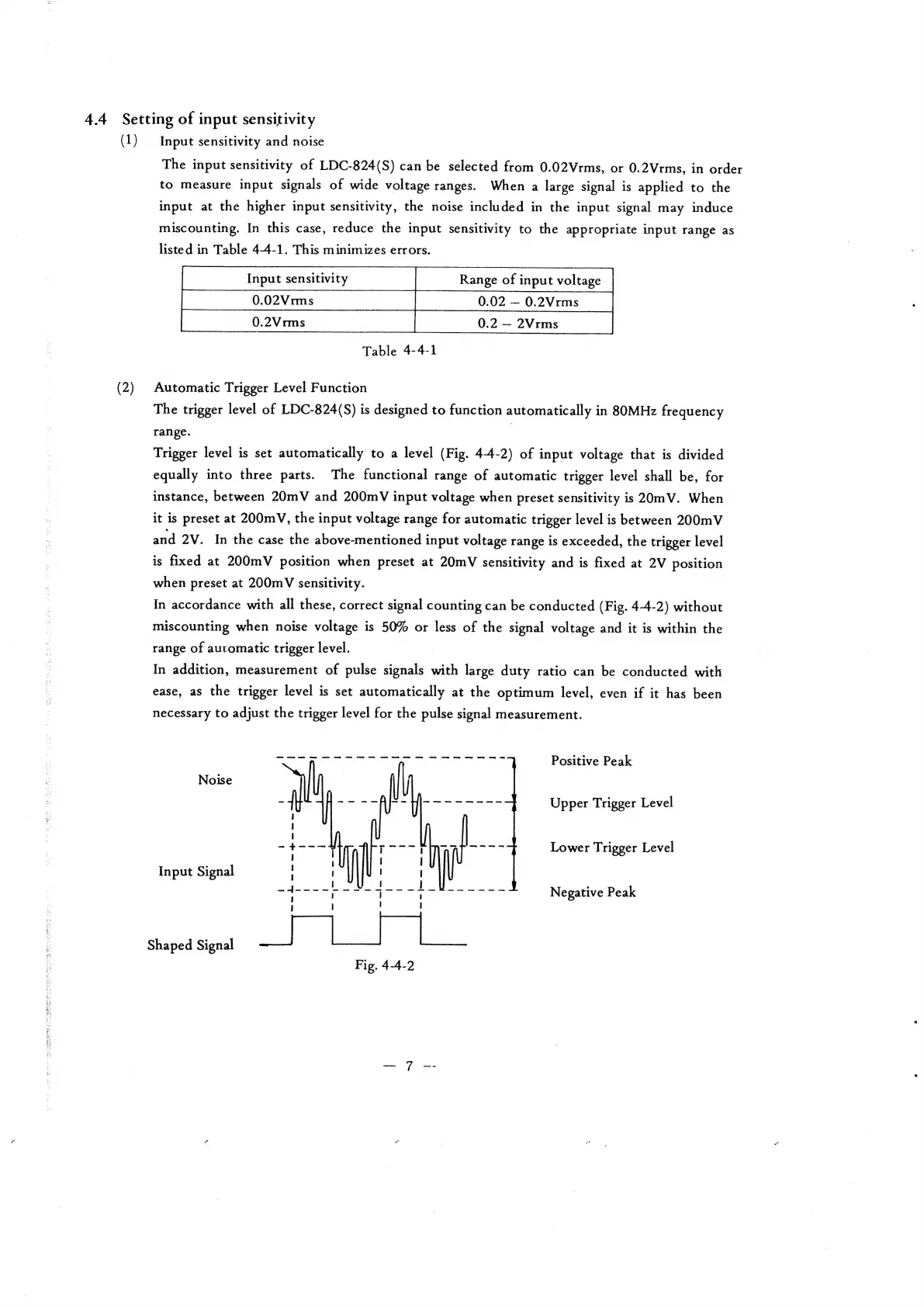

4.4
Setting
of
input
sensitivity
(1)
Input
sensitivity
and
noise
The
input
sensitivity
of
LDC-824(S)
can
be
selected
from
0.02Vrms,
or
0.2Vrms,
in
order
to
measure
input
signals
of
wide
voltage
ranges.
When
a
large
signal
is
applied
to
the
input
at
the
higher
input
sensitivity,
the
noise
included
in
the
input
signal
may
induce
miscounting.
In
this
case,
reduce
the
input
sensitivity
to
the
appropriate
input
range
as
listed
in
Table
4-4-1.
This
minimizes
errors.
0.02Vrms
0.02
0.2Vrms
0.2
2Vrms
Table
4-4-1
Automatic
Trigger
Level
Function
The
trigger
level
of
LDC-824(S)
is
designed
to
function
automatically
in
80MHz
frequency
range.
|
Trigger
level
is
set
automatically
to
a
level
(Fig.
4-4-2)
of
input
voltage
that
is
divided
equally
into
three
parts.
The
functional
range
of
automatic
trigger
level
shall
be,
for
instance,
between
20mV
and
200mV
input
voltage
when
preset
sensitivity
is
20mV.
When
it
is
preset
at
200mV,
the
input
voltage
range
for
automatic
trigger
level
is
between
200mV
and
2V.
In
the
case
the
above-mentioned
input
voltage
range
is
exceeded,
the
trigger
level
is
fixed
at
200mV
position
when
preset
at
20mV
sensitivity
and
is
fixed
at
2V
position
when
preset
at
200mV
sensitivity.
In
accordance
with
all
these,
correct
signal
counting
can
be
conducted
(Fig.
4-4-2)
without
miscounting
when
noise
voltage
is
50%
or
less
of
the
signal
voltage
and
it
is
within
the
range
of
automatic
trigger
level.
In
addition,
measurement
of
pulse
signals
with
large
duty
ratio
can
be
conducted
with
ease,
as
the
trigger
level
is
set
automatically
at
the
optimum
level,
even
if
it
has
been
necessary
to
adjust
the
trigger
level
for
the
pulse
signal
measurement.
Positive
Peak
Noise
Upper
Trigger
Level
Lower
Trigger
Level
Input
Signal
Negative
Peak
Shaped
Signal
FLL.
Fig.
4-4-2
