Lec CF100LW - Technical Data; Wiring Diagram

Technical
Technical
Technical

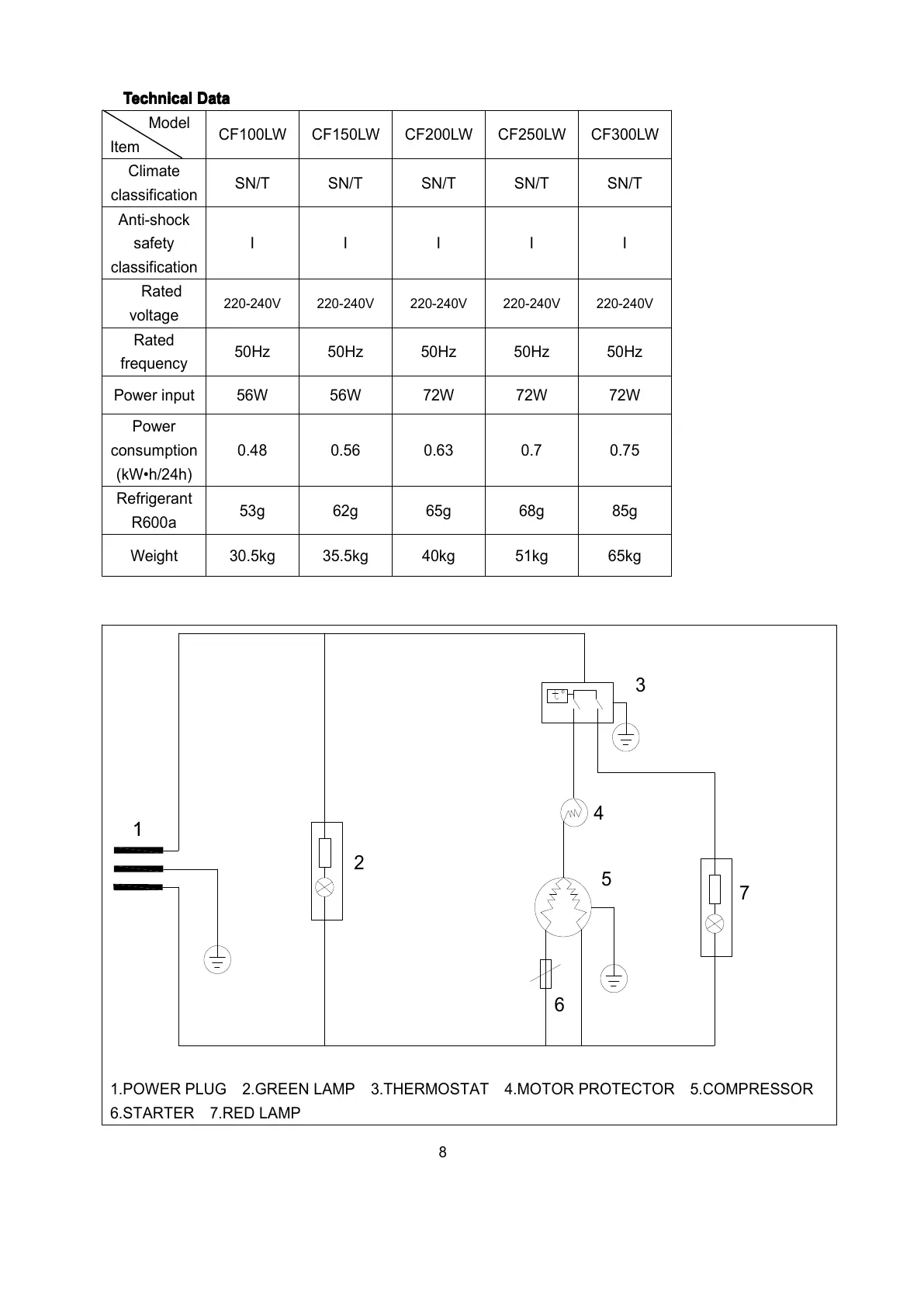

Technical Data
Data
Data
Data
Model
Item
CF100LW CF150LW CF200LW CF250LW CF300LW
Climate
classification
S N/T S N/T S N/T S N/T S N/T
Anti-shock
safety
classification
I I I I I
Rated
voltage
220-240V 220-240V 220-240V 220-240V 220-240V
Rated
frequency
50Hz 50Hz 50Hz 50Hz 50Hz
Power input 56W 56W 72W 72W 72W
Power
consumption
(kW • h/24h)
0.48 0.56 0.63 0.7 0.75
Refrigerant
R600a
53g 62g 65g 68g 85g
Weight 30.5kg 35.5kg 40kg 51kg 65kg
3
4
5
6
7
2
1.POWER PLUG 2.GREEN LAMP 3.THERMOSTAT 4.MOTOR PROTECTOR 5.COMPRESSOR
6.STARTER 7.RED LAMP
8
