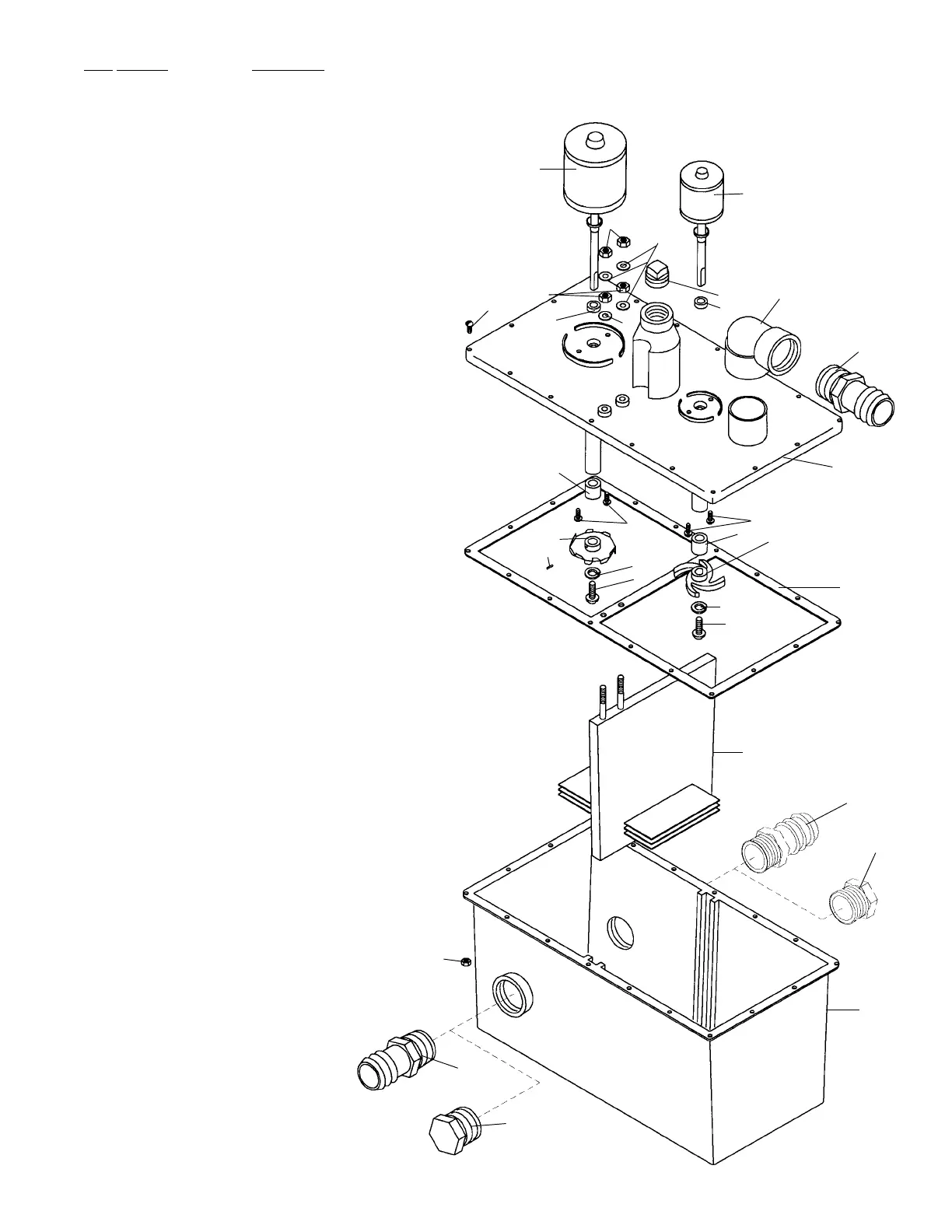

EXPLODED PARTS VIEW OF
COMPLETE TREATMENT UNIT
1 32-102** Mixer Motor 2 1/2'' Dia. 12 VDC
1 33-102** Mixer Motor 2 1/2'' Dia. 24 VDC
1 34-102** Mixer Motoer 2 1/2" Dia. 32 VDC
2 31-121 Hose Fitting
3 31-120 Discharge Elbow 90
4 M30 Electrode Lug Nut, 1/4''-20 Brass (4)
5 M31 Electrode Flat Washer, 1/4'', Brass (4)
6 31-113-1 Cover Hold Down Bolt, 10-32x3/4'' (16)
7 31-103 Motor Shaft Bushing (2)
8 31-106 Motor Hold Down Bolt,10-32x7/8'',S/S(6)
(Hold down bolts must be completely
covered with silicone caulk before final
reassembly to prevent leaking.)
9 31-109 Mixer Impeller
10 31-110-1 Impeller Bolt, 12-24x5/8'', S/S (2)
11 31-110-2 Impeller Lock Washer, #12, S/S (2)
12 31-114 Cover Hold Down Nut, 10-32 (18)
13 31-115 Treatment Tank
14 31-122 Intake Plug
15 32-5000 Electrode Pack 12 VDC
15 33-5000 Electrode Pack 24 VDC
15 34-5000 Electrode Pack 32 VDC
16 31-112 Cover Gasket
17 31-108 Macerator Set Screw, 8-32x3/16'', S/S
18 31-107 Macerator Impeller
19 31-101W Treatment Cover (Inc. items 7, 20 and
21)
20 31-104 Crossover Plug
21 31-102 Motor Shaft Seal (2)
22 32-101** Macerator Motor 3'' Dia. 12 VDC
22 33-101** Macerator Motor 3'' Dia. 24 VDC
22 34-101** Macerator Motor 3'' Dia. 32 VDC
31-3001 Salt tank assembly (not shown)
32-4000* 12 V DC Complete Treatment Unit
(Items 1-22)
33-4000* 24 V DC Complete Treatment Unit
(Items 1-22)
34-4000* 32 V DC Complete Treatment Unit
(Items 1-22)
* Less Control Box Assembly
**NOTE: When replacing existing or new motor(s), apply
silicone caulk over motor - hold down bolt heads. Dispense
enough sealant to cover an area three times greater than the
bolt heads to avoid leaking through bolt holes.
