9
20
22
12
1
2
23
23
25
11
13
3
14
5
7
16
31
14
26
24
32
8
9
10
8
10
9
10
9
8
8
10
9
21
11
10
12
24
24
24
33
30
23
5
12
17
15
17
8
6
9
4
25
23
( ) Indicates Total pieces required
Item Part No. Description
1 31-460 Control Cover
2 CH26 8-32 x 7/16" Truss head screw (2)
3 31-462 Mounting Plate
4 32-401 Control Board Assy. - 12V
33-401 Control Board Assy. - 24V
34-401 Control Board Assy. - 32V
5 AM06012 Solenoid Relay (2) - 12V
AM06024 Solenoid Relay (2) - 24V
AM06032 Solenoid Relay (2) - 32V
6 RBS50 Shunt Assy.
7 31-402A Wiring Harness Assy.
8 M30 1/4 - 20 Brass Nut (6)
9 HLWQB 1/4" Lockwasher (6)
10 M31 #14 Brass Flat Washer (7)
11 HSB1 1/4 - 20 Brass Cap Screw (2)
12 RNI Nylon Shoulder Washer (3)
13 1119A 1/4 - 20 x 1/2" S/S Hex Head
Machine Screw (4)
14 1118 1/4" External Tooth Washer (5)
15 1226B 1/4 - 20 S/S Hex Head Nut (4)
16 31-476 Nylon Spacer Washer (2)
17 ED1N4002 Diode (2)
20 F31-480 Nylon Stand Offs: PCB Supports
(4)

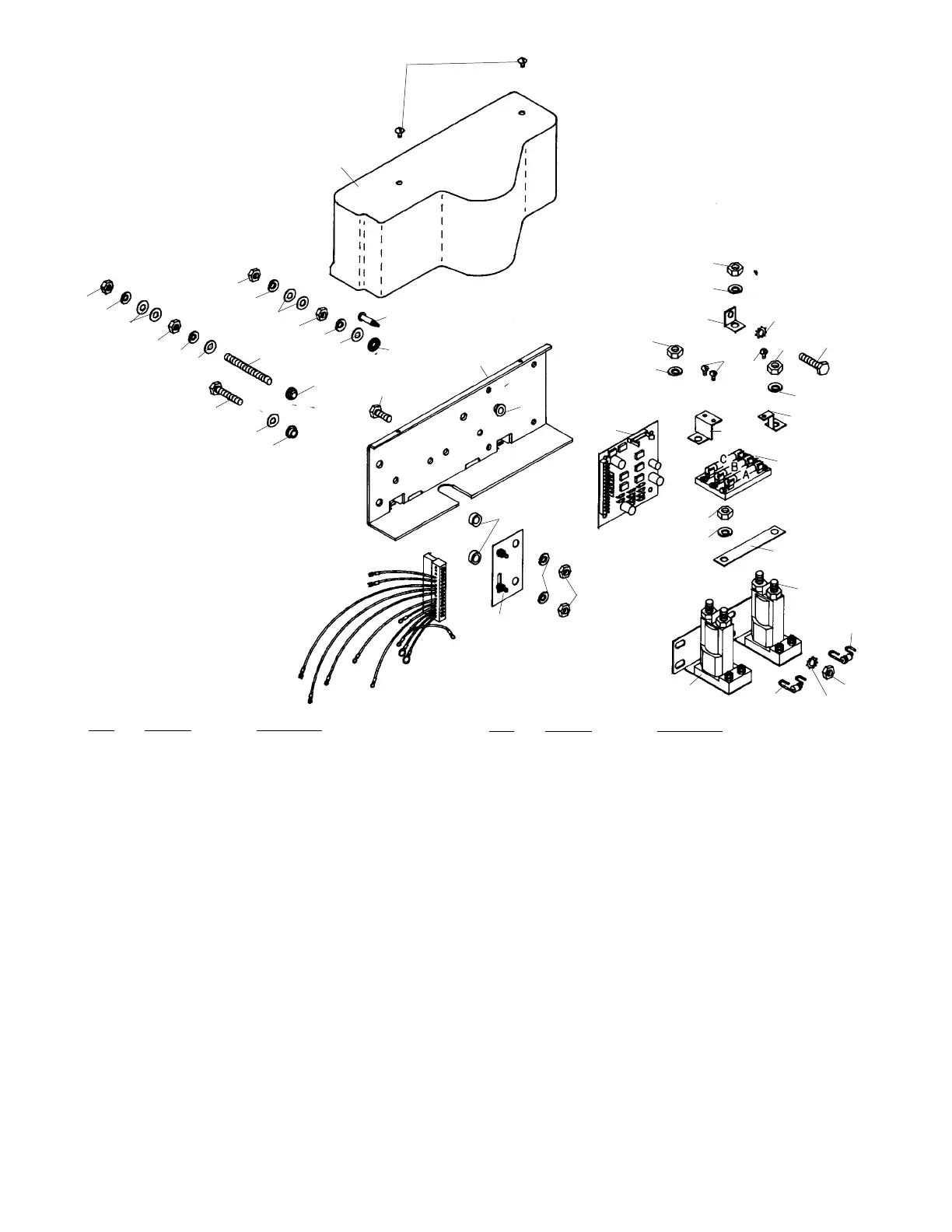

EXPLODED PARTS VIEW
OF CONTROL MODULE
Item Part No. Description
21 F069 Gray Fiber Flat Washer
22 F31-478 Threaded Rod 1/4 - 20 x 2" Brass
23 5/16 - 24 Nut (4)
24 5/16 Lockwasher (4)
25 #6-32 Screw
26 31-464 Bracket
30 31-232 Fuse Block
30A 32-218 MDL 6 1/4 Fuse
30B 32-219 MDL 35 Fuse
30C 32-220 MDL 30 Fuse
31 31-466 Bracket
32 31-468 Bracket
33 31-470 Cond. Bracket
32-402 12V Control Box Assy. (incl. all
above parts except 1 and 2)
33-402 24V Control Box Assy. (incl. all
above parts except 1 and 2)
34-402 32V Control Box Assy. (incl. all
above parts except 1 and 2)
31-403 Indicator panel assembly (not
shown)
31-404 Ribbon cable (not shown)
☞NOTE: ALL PART #'S BASED ON A 12V SYSTEM,
ALL OTHER PART #'s, CONTACT RARITAN
