AUTO LEVELING CONTROL (ALC) PROGRAMMING
Additional Operational Features:
• Press AUTO to enter automatic leveling
• Press AUTO mode again to enter manual mode so tabs may be adjusted manually
• The ALC incorporates an “Adaptive system” to maintain optimum running attitude in varying sea conditions
• Reducing speeds below planing speed the ALC will not attempt to control attitude
• The ALC automatically starts correcting attitude during acceleration
Program Mode Sequence
Enter Button Hold Adjustment Store Memory
BOW UP + BOW DOWN 12s Begin Calibration N/A
N/A N/A Adjust tabs to best attitude Press AUTO 4s
RIGHT + LEFT 4s BOW UP and BOW DOWN RIGHT + LEFT 4s

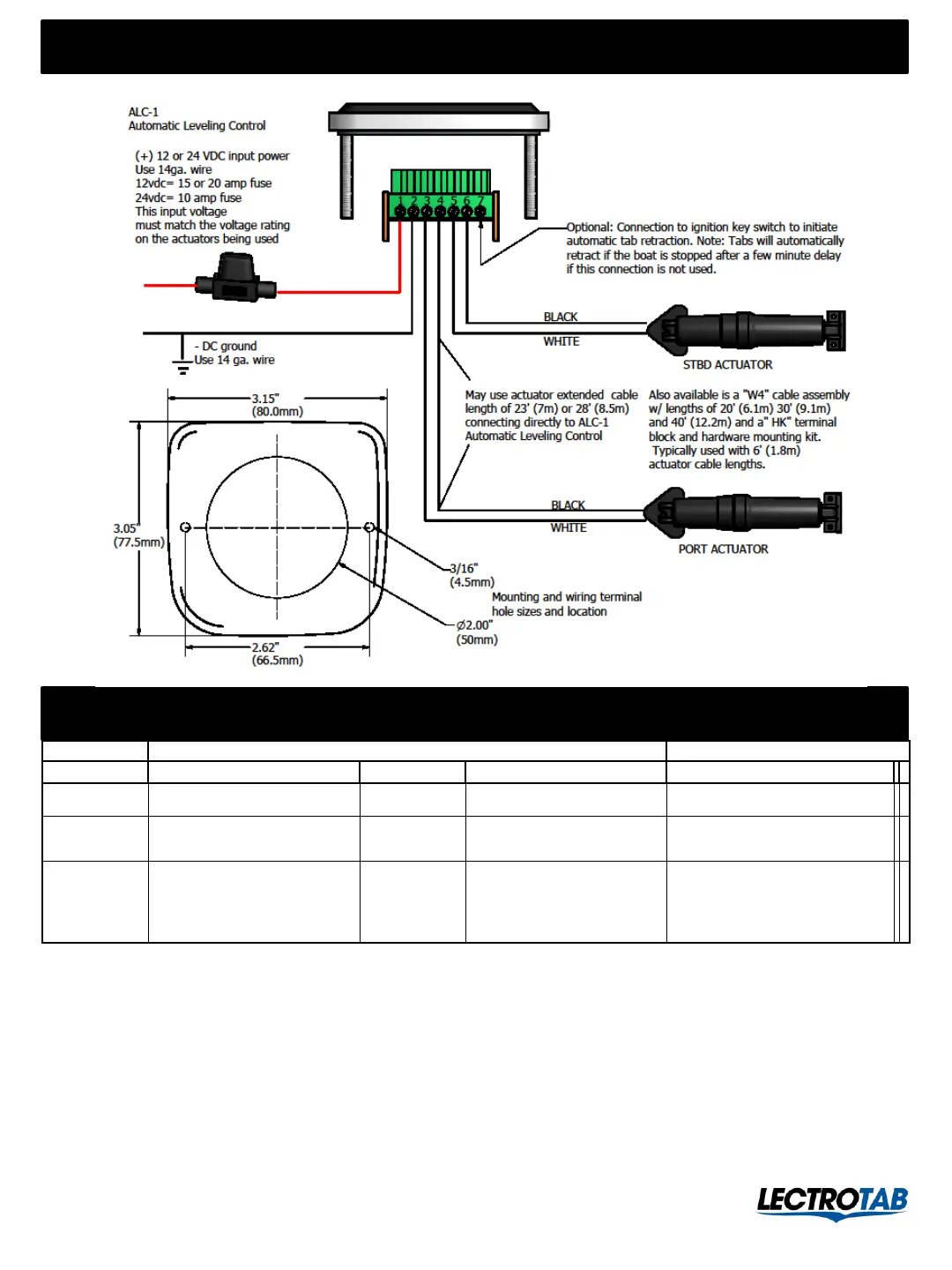

AUTO LEVELING CONTROL WIRING ALC-1
