2
12-36V DC
Input Terminals
Digital Display
for DMX Channels
“V+” Terminal
“R” Terminal
(Red)
“G” Terminal
(Green)
“B” Terminal
(Blue)
0-5
Channel
Selection
0-9
Channel
Selection
Ethernet
(CAT-5)
Output Port
Ethernet
(CAT-5)
Input Port
0-9
Channel
Selection
“W” Terminal
(White)
• 12-36V DC Input Terminals - Input terminals for a low voltage, electronic DC driver
• Digital Display for DMX Channels - Displays the current DMX channel selected
• “V+” Terminal - Terminal for the positive (+) wire from an RGB connector
• “R” Terminal (Red) - Terminal for the red wire from an RGB connector
• “G” Terminal (Green) - Terminal for the green wire from an RGB connector
• “B” Terminal (Blue) - Terminal for the blue wire from an RGB connector
• “W” Terminal (White) - Terminal for the wiring from a static white run of tape light
• Ethernet (CAT-5) Input Port - Port for receiving CAT-5 data
• Ethernet (CAT-5) Output Port - Port for sending CAT-5 data
• 0-5 Channel Selection (Hundreds Place) - Cycle through values 0-5 in the hundreds place only
• 0-9 Channel Selection (Tens Place) - Cycle through values 0-9 in the tens place only
• 0-9 Channel Selection (Ones Place) - Cycle through values 0-9 in the ones place only

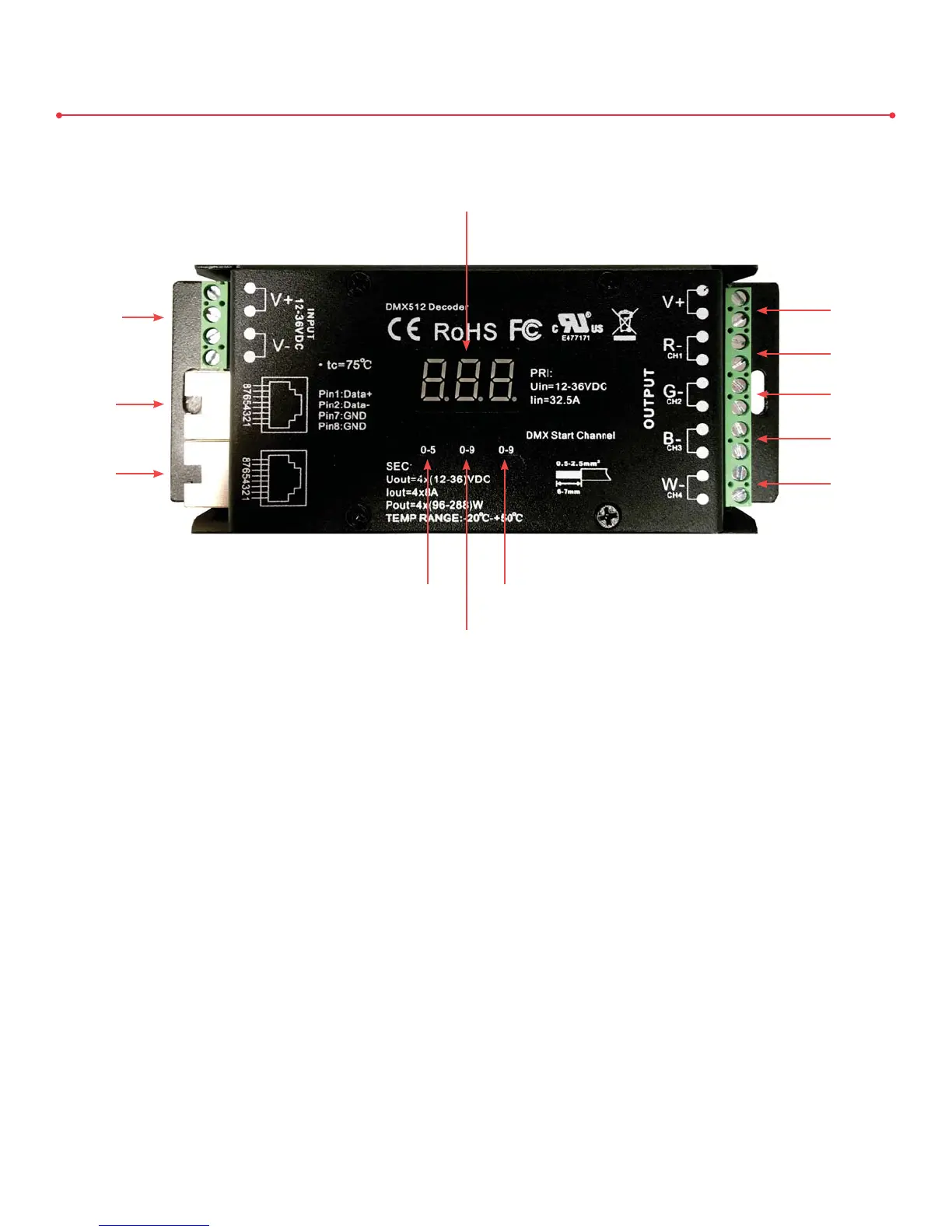

RGB DMX Decoder Overview
