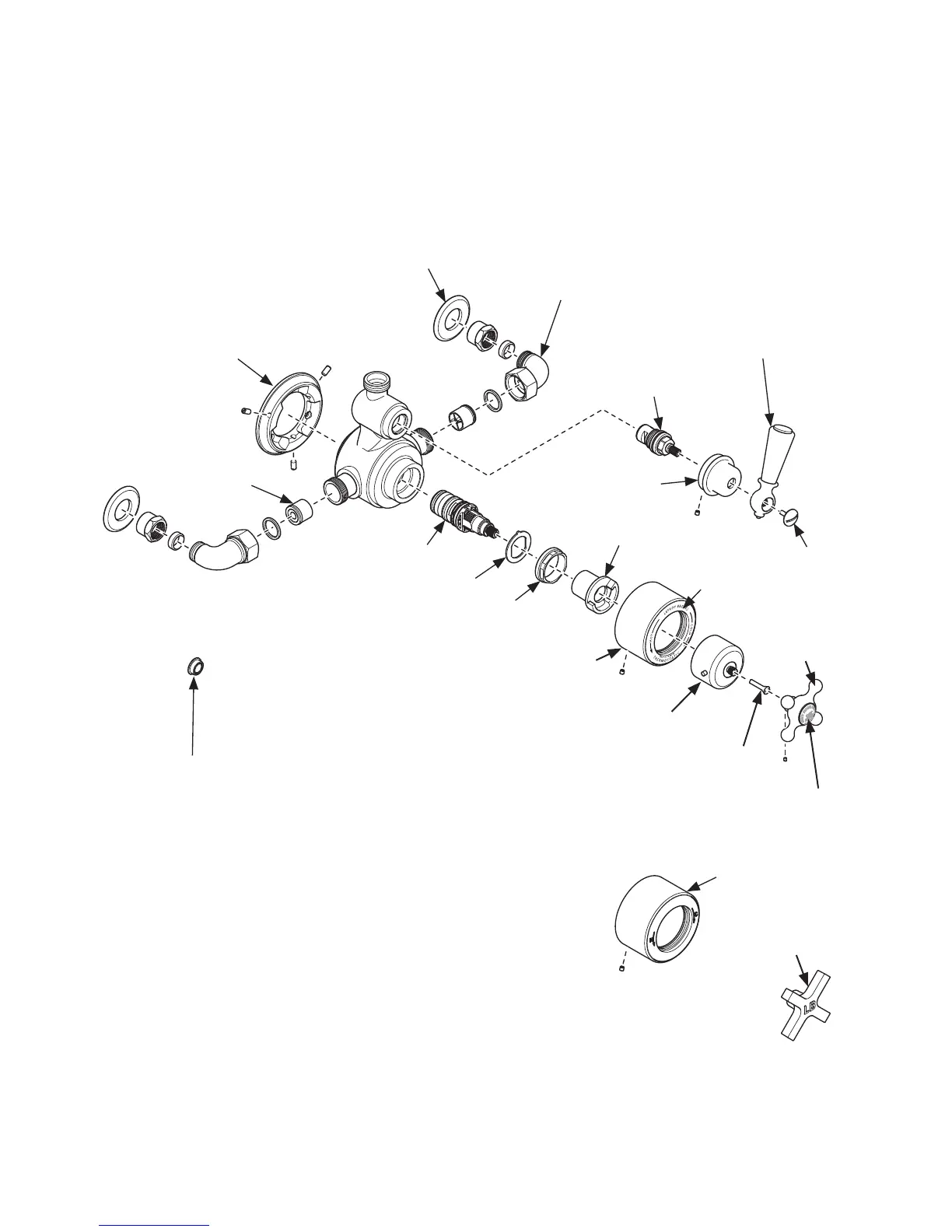

EXPLODED VIEW
PTE005 –
Valve backplate
Flow supressor (white)
See ‘balancing flow’ in ‘important
information’ section
PTS002 –
Non-return
valves (pair)
PTS024 – Override
including screw
PTS026 – (CT)
Handwheel
with lion indice
PPW005 – Lion indice
only
PTS011 – Ceramic
ring only
PTS030 – Screw
PTE018 – (CT)
Thermostatic
cartridge cover
PTE020 – (MK)
Thermostatic
cartridge cover
PTS025 – (MK)
Handwheel
PTS020 – Lock washer
PTS022 – Temperature stop
LB2750 – Thermostatic cartridge
PTS021 – Lock nut
PTS007 – Screw
PTS004 – White lever (UPPER ceramic only)
PTE016 – Black lever (ceramic only)
PTE002 – Flow cartridge
PTE003 – Flow control
cover
PTE007 – Pair of 15mm crack cover plates
PTE040 – A single 15mm crack cover plate
PTE006 – Pair of 15mm inlet connection elbows
with compression nuts, olives and fibre washers
PTE041 – A single 15mm inlet connection elbow
with compression nut, olive and fibre washer
